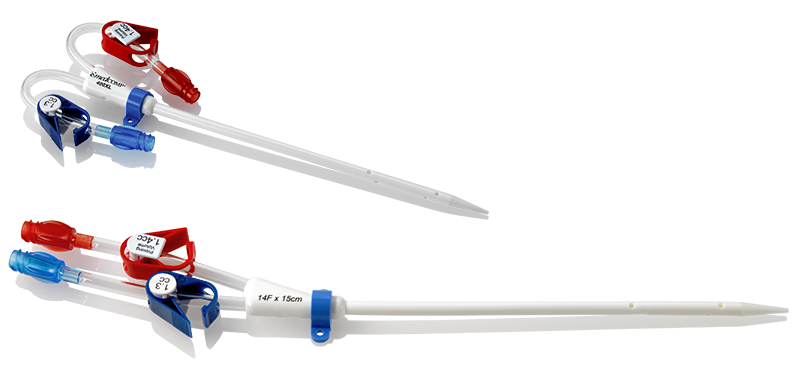

400XL Short Term Hemodialysis Catheter

Device-Type

Dialysis Catheter

Manufacturer

Medcomp

The 400XL Catheter lumens are manufactured from thermosensititive material which provides increased patient comfort while providing excellent biocompatibility

Features and Benefits

  • The advantages of high flow in Duo-Flow design.
  • Coaxial internal lumen design.
  • MRI SAFE.

Safety informations

The Medcomp® Duo-Flow and Duo-Flow 400XL Double Lumen Catheters are designed for acute hemodialysis and apheresis. They may be inserted percutaneously and are ideally placed in the internal jugular vein. Although these catheters may be inserted into the subclavian or femoral vein, the internal jugular is the preferred site.


CONTRAINDICATIONS:

This catheter is intended for Short-Term vascular access only and should not be used for any purpose other than indicated in these instructions.

WARNINGS

  • In the rare event that a hub or connector separates from any component during insertion or use, take all necessary steps and precautions to prevent blood loss or air embolism and remove the catheter.
  • Do not advance the guidewire or catheter if unusual resistance is encountered.
  • Do not insert or withdraw the guidewire forcibly from any component. The wire may break or unravel. If the guidewire becomes damaged, the catheter and guidewire must be removed together.
  • Federal Law (USA) restricts the device to sale by or on the order of a physician.

Potential adverse events

• Air Embolism

• Bacteremia

• Brachial Plexus Injury

• Cardiac Arrhythmia

• Cardiac Tamponade

• Central Venous Thrombosis

• Endocarditis

• Exit Site Infection

• Exsanguination

• Femoral Artery Bleed

• Femoral Nerve Damage

• Hematoma

• Hemorrhage

• Hemothorax

• Inferior Vena Cava Puncture

• Laceration of the Vessel

• Lumen Thrombosis

• Mediastinal Injury

• Perforation of the Vessel

• Pleural Injury

• Pneumothorax

• Retroperitoneal Bleed

• Right Atrial Puncture

• Septicemia

• Subclavian Artery Puncture

• Subcutaneous Hematoma

• Superior Vena Cava Puncture

• Thoracic Duct Laceration

• Vascular Thrombosis

• Venous Sternosis

Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model Size(f) Length(cm) Type Kit
Duo-Flow 400XL
Duo-Flow 400XL
 		DDFXL144MT 14 12 Straight Basic Set
Duo-Flow 400XL
Duo-Flow 400XL
 		DDFXL146MT 14 15 Straight Basic Set
Duo-Flow 400XL
Duo-Flow 400XL
 		DDFXL148MT 14 20 Straight Basic Set
Duo-Flow 400XL
Duo-Flow 400XL
 		DDFXL149MT 14 24 Straight Basic Set
Duo-Flow 400XL
Duo-Flow 400XL
 		DDFXL144IJS 14 12 Pre-Curved Basic Set
Duo-Flow 400XL
Duo-Flow 400XL
 		DDFXL1461JS 14 15 Pre-Curved Basic Set
Duo-Flow 400XL
Duo-Flow 400XL
 		DDFXL148IJS 14 20 Pre-Curved Basic Set
Duo-Flow 400XL
Duo-Flow 400XL
 		DDFXL149IJS 14 24 Pre-Curved Basic Set
Duo-Flow 400XL
Duo-Flow 400XL
 		DFXL146CES 14 15 Curved Extensions Basic Set
Duo-Flow 400XL
Duo-Flow 400XL
 		DDFXL148CES 14 20 Curved Extensions Basic Set
Duo-Flow 400XL
Duo-Flow 400XL
 		DFXL149CES 14 24 Curved Extensions Basic Set
Duo-Flow 400XL
Duo-Flow 400XL
 		DFXL146MB 14 15 Straight Max Barrier Tray
Duo-Flow 400XL
Duo-Flow 400XL
 		DFXL148MB 14 20 Straight Max Barrier Tray
Duo-Flow 400XL
Duo-Flow 400XL
 		DFXL149MB 14 24 Straight Max Barrier Tray
Duo-Flow 400XL
Duo-Flow 400XL
 		DFXL146IJMB 14 15 Pre-Curved Max Barrier Tray
Duo-Flow 400XL
Duo-Flow 400XL
 		DFXL148IJMB 14 20 Pre-Curved Max Barrier Tray
Duo-Flow 400XL
Duo-Flow 400XL
 		DFXL149IJMB 14 24 Pre-Curved Max Barrier Tray
Duo-Flow 400XL
Duo-Flow 400XL
 		DFXL146CEMB 14 15 Curved Extensions Max Barrier Tray
Duo-Flow 400XL
Duo-Flow 400XL
 		DFXL148CEMB 14 20 Curved Extensions Max Barrier Tray
Duo-Flow 400XL
Duo-Flow 400XL
 		DFXL149CEMB 14 24 Curved Extensions Max Barrier Tray
device-thumbnail
Duo-Flow 400XL
  • Model : DDFXL144MT
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 12
  • Type : Straight
  • Kit : Basic Set
device-thumbnail
Duo-Flow 400XL
  • Model : DDFXL146MT
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 15
  • Type : Straight
  • Kit : Basic Set
device-thumbnail
Duo-Flow 400XL
  • Model : DDFXL148MT
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 20
  • Type : Straight
  • Kit : Basic Set
device-thumbnail
Duo-Flow 400XL
  • Model : DDFXL149MT
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 24
  • Type : Straight
  • Kit : Basic Set
device-thumbnail
Duo-Flow 400XL
  • Model : DDFXL144IJS
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 12
  • Type : Pre-Curved
  • Kit : Basic Set
device-thumbnail
Duo-Flow 400XL
  • Model : DDFXL1461JS
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 15
  • Type : Pre-Curved
  • Kit : Basic Set
device-thumbnail
Duo-Flow 400XL
  • Model : DDFXL148IJS
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 20
  • Type : Pre-Curved
  • Kit : Basic Set
device-thumbnail
Duo-Flow 400XL
  • Model : DDFXL149IJS
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 24
  • Type : Pre-Curved
  • Kit : Basic Set
device-thumbnail
Duo-Flow 400XL
  • Model : DFXL146CES
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 15
  • Type : Curved Extensions
  • Kit : Basic Set
device-thumbnail
Duo-Flow 400XL
  • Model : DDFXL148CES
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 20
  • Type : Curved Extensions
  • Kit : Basic Set
device-thumbnail
Duo-Flow 400XL
  • Model : DFXL149CES
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 24
  • Type : Curved Extensions
  • Kit : Basic Set
device-thumbnail
Duo-Flow 400XL
  • Model : DFXL146MB
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 15
  • Type : Straight
  • Kit : Max Barrier Tray
device-thumbnail
Duo-Flow 400XL
  • Model : DFXL148MB
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 20
  • Type : Straight
  • Kit : Max Barrier Tray
device-thumbnail
Duo-Flow 400XL
  • Model : DFXL149MB
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 24
  • Type : Straight
  • Kit : Max Barrier Tray
device-thumbnail
Duo-Flow 400XL
  • Model : DFXL146IJMB
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 15
  • Type : Pre-Curved
  • Kit : Max Barrier Tray
device-thumbnail
Duo-Flow 400XL
  • Model : DFXL148IJMB
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 20
  • Type : Pre-Curved
  • Kit : Max Barrier Tray
device-thumbnail
Duo-Flow 400XL
  • Model : DFXL149IJMB
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 24
  • Type : Pre-Curved
  • Kit : Max Barrier Tray
device-thumbnail
Duo-Flow 400XL
  • Model : DFXL146CEMB
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 15
  • Type : Curved Extensions
  • Kit : Max Barrier Tray
device-thumbnail
Duo-Flow 400XL
  • Model : DFXL148CEMB
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 20
  • Type : Curved Extensions
  • Kit : Max Barrier Tray
device-thumbnail
Duo-Flow 400XL
  • Model : DFXL149CEMB
  • Procedure : -
  • Size(f) : 14
  • Length(cm) : 24
  • Type : Curved Extensions
  • Kit : Max Barrier Tray
