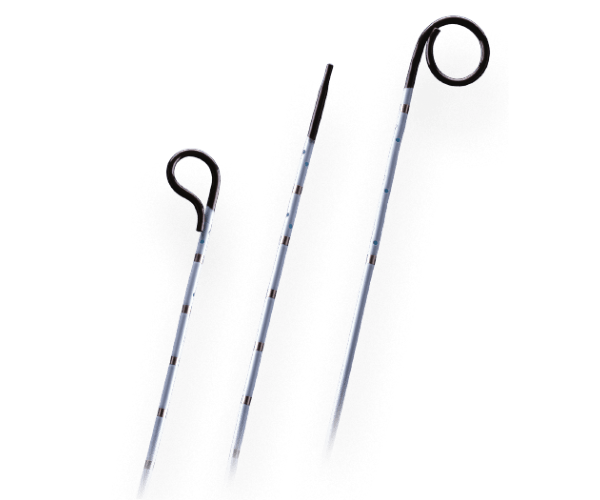

Accu-Vu Sizing Catheter

Device-Type

PTA Ballons

Targated Speciality

Interventional radiology

Manufacturer

Angiodynamics


First in Precision. Best in Selection.

Strategic Marker Placement

Accu-Vu's first marker is strategically placed to enable the catheter tip to be positioned directly above the level of the renal arteries, with the marker at the top of the renal artery. This limits any filling of the superior mesenteric artery with contrast when mapping the aorta—reducing the overall volume of contrast used per procedure.


Safe and Fast

Accu-Vu Sizing Catheters have an enhanced, soft radiopaque tip.

A softer, less traumatic tip with a finely-tuned degree of rigidity provides safe and fast navigation to the intended anatomical site.


Meet Clinical Needs with Wide Range of Selection

Accu-Vu is offered in a broad selection of both 4F and 5F sizes.

With a wide range of selection, you are assured the right match for virtually every anatomical and procedural measurement need.

Features and Benefits

  • Radiopaque markers show consistent placement across the entire sizing pattern, within +/-1 mm accuracy
  • Strategically positioned first marker enables placement of catheter tip right above the renal artery level with the marker at the top of the renal nature.
  • Accu-Vu Omni™ Flush sizing catheter provides a more concentrated contrast bolus using less contrast without reflux.
  • First-of-its-kind catheter on the market with an enhanced, soft radiopaque tip.
  • A softer, less traumatic tip with just the right degree of rigidity provides safer, faster navigation to the target anatomical site.
  • A broad selection of both 4 French and 5 French catheters, representing a full range of segment sizing, assures the right match for virtually every anatomical and procedural measurement need.

Use Case Examples

AngioDynamics Angiographic Catheters are for use where angiographic diagnosis is indicated.

Safety informations

Contraindications: None known.


Warnings:

  • ANGIODYNAMICS Angiographic Catheters should be used only by physicians with a thorough understanding of angiography and percutaneous interventional procedures and are not for reuse or resterilization.
  • ANGIODYNAMICS 3 French Angiographic Catheters are not intended for intracranial use.
  • Do not insert catheters directly through synthetic vascular grafts. Insert through a sheath introducer.
  • Never advance or retract an Angiographic Catheter or guidewire against resistance. This may result in damage to the vessel, the product, or both.
  • Do not attempt to hand straighten the tip of any curved tipped catheters which are furnished with a tip straightener. This may result in damage to the product. Tip straighteners are furnished on all catheters intended to be straightened with the aid of a tip straightener.
  • Reshaping of the catheter tip is not recommended. Physical damage to the catheter material can result when exposed to heat.
  • Do not leave curved tipped catheters straightened over guidewires for extended periods of time. This will result in failure of the catheter tip to re-form to its intended shape.
  • When using ANGIODYNAMICS HALO Catheters, form or straighten the tip in the distal thoracic aorta using a guidewire when advancing or withdrawing the catheter.
  • Avoid injection of contrast medium into the intercostal and lumbar arteries.
  • Always use a guidewire to remove the catheter from the vasculature. Failure to do so may result in damage to the vessel, puncture site, product, or all three.
  • When retracting catheters, great care must be taken to avoid exerting excessive pressure at the groin entry site. Excessive pressure may result in damage to the vessel, the catheter, or both.
  • The maximum pressure limit of catheters intended for flush angiography is stated on the catheter package. When using a pressure injector, do not exceed the stated maximum pressure.
  • Catheters intended for selective angiography do not have a maximum pressure limit stated on the catheter package. Typical flow rates of up to 10cc per second are stated with pressure generated to achieve these typical flow rates.
  • Flow rates have been established by using a contrast medium as stated on the catheter label at 37° centigrade for a 2 second injection. Since a number of variables (such as media viscosity and temperature) can produce different flow rates, this information should only be used as a guide.
  • Reuse of single-use devices creates a potential risk of patient or user infections. Contamination of the device may lead to injury, illness or death of the patient.
  • Reprocessing may compromise the integrity of the device and / or lead to device failure.

Potential adverse events

Potential complications include, but are not limited to the following:

Thrombus formation,

Emboli,

Arterial wall damage,

Plaque dislodgment,

Hematoma,

Cardiac arrhythmias,

Myocardial infarction,

Stroke, and

Death.

Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model Size Guide Wire Catheter Length
2 cm Segment Sizing Catheter
H787137090055 4F .035" 70cm
2 cm Segment Sizing Catheter
H787137090065 4F .035" 100cm
2 cm Segment Sizing Catheter
H787137091055 4F .035" 70cm
2 cm Segment Sizing Catheter
H787137091065 4F .035" 100cm
2 cm Segment Sizing Catheter
H787137092035 4F .035" 70cm
2 cm Segment Sizing Catheter
H787137092045 4F .035" 100cm
2 cm Segment Sizing Catheter
H787137090015 5F .035" 70cm
2 cm Segment Sizing Catheter
H787137090035 5F .035" 100cm
2 cm Segment Sizing Catheter
H787137091015 5F .035" 70cm
2 cm Segment Sizing Catheter
H787137091035 5F .035" 100cm
2 cm Segment Sizing Catheter
H787137092015 5F .035" 70cm
2 cm Segment Sizing Catheter
H787137092025 5F .035" 100cm
2 cm Segment Sizing Catheter
H787137090025 5F .038" 70cm
2 cm Segment Sizing Catheter
H787137090045 5F .038" 100cm
2 cm Segment Sizing Catheter
H787137091025 5F .038" 70cm
2 cm Segment Sizing Catheter
H787137091045 5F .038" 100cm
20 cm Segment Sizing Catheter
H787137097045 4F .035" 70cm
20 cm Segment Sizing Catheter
H787137098045 4F .035" 70cm
20 cm Segment Sizing Catheter
H787137099025 4F .035" 70cm
20 cm Segment Sizing Catheter
H787137097055 4F .035" 100cm
20 cm Segment Sizing Catheter
H787137098055 4F .035" 100cm
20 cm Segment Sizing Catheter
H787137097035 5F .035" 100cm
20 cm Segment Sizing Catheter
H787137098035 5F .035" 100cm
20 cm Segment Sizing Catheter
H787137099205 5F .035" 100cm
20 cm Segment Sizing Catheter
H787137097025 5F .038" 70cm
20 cm Segment Sizing Catheter
H787137098015 5F .038" 70cm
20 cm Segment Sizing Catheter
H787137098025 5F .038" 70cm
20 cm Segment Sizing Catheter
H787137099015 5F .035" 70cm
25 cm Segment Sizing Catheter
H787137094055 4F .035" 70cm
25 cm Segment Sizing Catheter
H787137095065 4F .035" 100cm
25 cm Segment Sizing Catheter
H787137096045 4F .035" 100cm
25 cm Segment Sizing Catheter
H787137094015 5F .035" 70cm
25 cm Segment Sizing Catheter
H787137094035 5F .035" 100cm
25 cm Segment Sizing Catheter
H787137095015 5F .035" 70cm
25 cm Segment Sizing Catheter
H787137095035 5F .035" 100cm
25 cm Segment Sizing Catheter
H787137096015 5F .035" 70cm
25 cm Segment Sizing Catheter
H787137096025 5F .035" 100cm
25 cm Segment Sizing Catheter
H787137094025 5F .038" 70cm
25 cm Segment Sizing Catheter
H787137094045 5F .038" 100cm
25 cm Segment Sizing Catheter
H787137095025 5F .038" 70cm
25 cm Segment Sizing Catheter
H787137095045 5F .038" 100cm
  • Model : H787137090055
  • Procedure : -
  • Size : 4F
  • Guide Wire : .035"
  • Catheter Length : 70cm
  • Model : H787137090065
  • Procedure : -
  • Size : 4F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137091055
  • Procedure : -
  • Size : 4F
  • Guide Wire : .035"
  • Catheter Length : 70cm
  • Model : H787137091065
  • Procedure : -
  • Size : 4F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137092035
  • Procedure : -
  • Size : 4F
  • Guide Wire : .035"
  • Catheter Length : 70cm
  • Model : H787137092045
  • Procedure : -
  • Size : 4F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137090015
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 70cm
  • Model : H787137090035
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137091015
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 70cm
  • Model : H787137091035
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137092015
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 70cm
  • Model : H787137092025
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137090025
  • Procedure : -
  • Size : 5F
  • Guide Wire : .038"
  • Catheter Length : 70cm
  • Model : H787137090045
  • Procedure : -
  • Size : 5F
  • Guide Wire : .038"
  • Catheter Length : 100cm
  • Model : H787137091025
  • Procedure : -
  • Size : 5F
  • Guide Wire : .038"
  • Catheter Length : 70cm
  • Model : H787137091045
  • Procedure : -
  • Size : 5F
  • Guide Wire : .038"
  • Catheter Length : 100cm
  • Model : H787137097045
  • Procedure : -
  • Size : 4F
  • Guide Wire : .035"
  • Catheter Length : 70cm
  • Model : H787137098045
  • Procedure : -
  • Size : 4F
  • Guide Wire : .035"
  • Catheter Length : 70cm
  • Model : H787137099025
  • Procedure : -
  • Size : 4F
  • Guide Wire : .035"
  • Catheter Length : 70cm
  • Model : H787137097055
  • Procedure : -
  • Size : 4F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137098055
  • Procedure : -
  • Size : 4F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137097035
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137098035
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137099205
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137097025
  • Procedure : -
  • Size : 5F
  • Guide Wire : .038"
  • Catheter Length : 70cm
  • Model : H787137098015
  • Procedure : -
  • Size : 5F
  • Guide Wire : .038"
  • Catheter Length : 70cm
  • Model : H787137098025
  • Procedure : -
  • Size : 5F
  • Guide Wire : .038"
  • Catheter Length : 70cm
  • Model : H787137099015
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 70cm
  • Model : H787137094055
  • Procedure : -
  • Size : 4F
  • Guide Wire : .035"
  • Catheter Length : 70cm
  • Model : H787137095065
  • Procedure : -
  • Size : 4F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137096045
  • Procedure : -
  • Size : 4F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137094015
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 70cm
  • Model : H787137094035
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137095015
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 70cm
  • Model : H787137095035
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137096015
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 70cm
  • Model : H787137096025
  • Procedure : -
  • Size : 5F
  • Guide Wire : .035"
  • Catheter Length : 100cm
  • Model : H787137094025
  • Procedure : -
  • Size : 5F
  • Guide Wire : .038"
  • Catheter Length : 70cm
  • Model : H787137094045
  • Procedure : -
  • Size : 5F
  • Guide Wire : .038"
  • Catheter Length : 100cm
  • Model : H787137095025
  • Procedure : -
  • Size : 5F
  • Guide Wire : .038"
  • Catheter Length : 70cm
  • Model : H787137095045
  • Procedure : -
  • Size : 5F
  • Guide Wire : .038"
  • Catheter Length : 100cm
