Advance® Angiographic Needles

Device-Type

Needles

Targated Speciality

Interventional radiology

Manufacturer

Merit Medical


The Merit Advance Angiographic Needle is indicated for providing a puncture site in blood vessels for the introduction of vascular access devices.

Features and Benefits

Merit Advance®

Angiographic Needles

THE POINT OF INNOVATION™

Begins with Merit’s Angiographic Needles and ends with exceptional clinical performance

ADVANCING NEEDLE DESIGNS WITH THE HIGHEST STANDARDS YOU’VE COME TO EXPECT

Merit Advance angiographic needles combine an ergonomic hub, coated stainless steel and tip sharpness with top clinical performance. Our Majestik® 2 and 3 part needles offered in standard, Seldinger or Cournand shields incorporate a blunt cannula with a solid or hollow cutting stylet. When clinician safety matters, choose our Advance safety needle.

BENEFITS

• Unique hub design with ergonomic feel and reference point to orient bevel.

• Increased sharpness to facilitate entry into tissue and vessel walls.

• Designed for smooth guide wire insertion and removal of the needle over the wire.

• 18G needles have approximately 25% less drag than leading competitor.

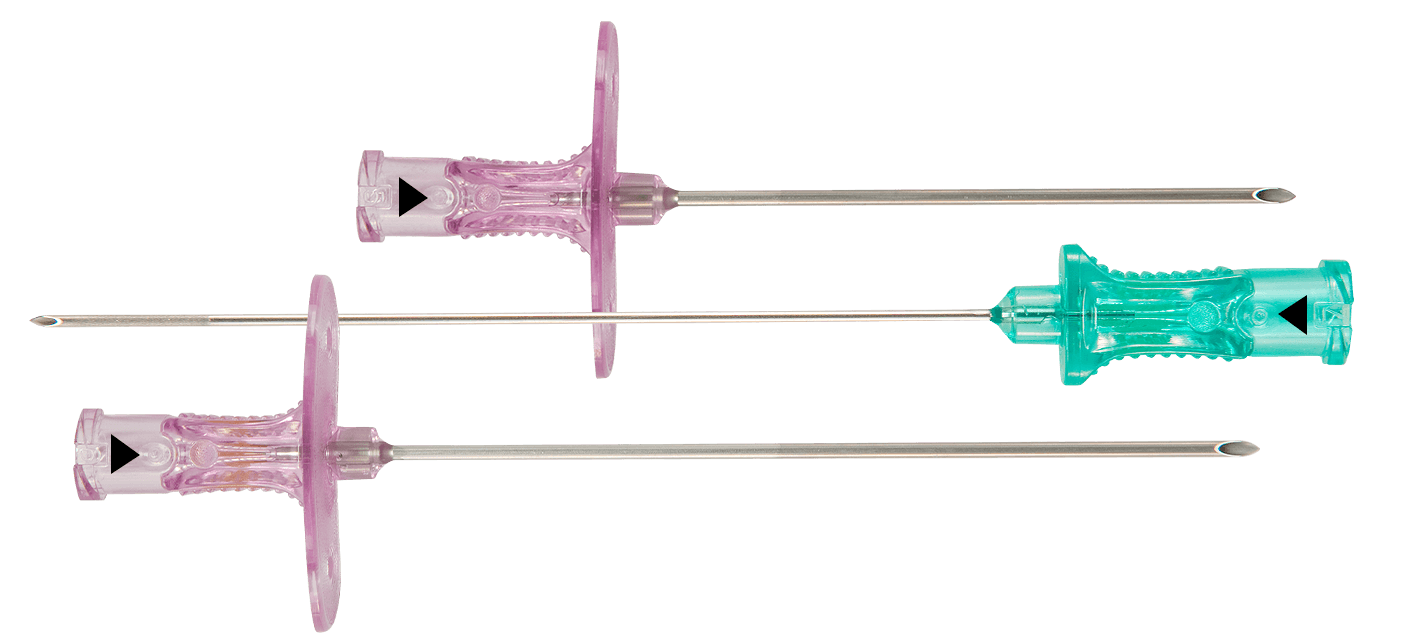

Merit Advance®

Angiographic Needle

Ergonomic hub with reference point to orient bevel. Smooth guide wire insertion and removal over the wire.

MajeSTIK®

Angiographic Needle

Sharp grind angle facilitates entry into tissue and vessel wall. Blunt-end obturator occludes the cannula lumen.

Merit Advance®

Angiographic Safety Needle

Easy-to-activate, low-profile safety mechanism shields the needle bevel after use for needlestick prevention.




Safety informations

PRECAUTIONS:

• Read manufacturer’s instructions prior to use.

• Contents of unopened, undamaged package are sterile.

• Do not use if package is damaged.

• Px ONLY CAUTION: Federal (U.S.A.) law restricts the sale of this device to sale by or on the order of a physician trained in the use of this device.

• For single patient use only. Do not reuse, reprocess or resterilize. Reuse, reprocessing or resterilization may compromise the structural integrity of the device and/or lead to device failure which, in turn, may result in patient injury, illness or death. Reuse, reprocessing or resterilization may also create a risk of contamination of the device and/or cause patient infection or cross-infection or cross-infection, including, but not limited to, the transmission of infectious disease(s) from one patient to another. Contamination of the device may lead to injury, illness or death of the patient.


CONTRAINDICATIONS:

There are no contraindications associated with the Merit Advance Angiographic Needle.


INSTRUCTIONS FOR USE:

1. Identify the insertion site and prepare the site using proper aseptic technique and local anesthesia as required.

2. Remove the Merit Advance Angiographic Needle from package using proper aseptic technique.

3. Insert a Merit Advance Angiographic Needle using standard technique.

4. Dispose of the Merit Advance Angiographic Needle in an approved sharps container while observing universal precautions

Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model NEEDLE TYPE GAUGE Wall Thickness Accepts Wire Guide Length (cm)
Advance Angiographic Needles
AD21T21W One Wall 21G Thin Wall 0.021" (0.53 mm) 2.5 cm
Advance Angiographic Needles
AD20T41W One Wall 20G Extra Thin Wall 0.025" (0.64 mm) 4.0 cm
Advance Angiographic Needles
AD18T71W One Wall 18G Extra Thin Wall 0.038" (0.97 mm) 7.0 cm
Advance Angiographic Needles
AD18T71W-E One Wall 18G Extra Thin Wall 0.038" (0.97 mm) 7.0 cm
Advance Angiographic Needles
AD18T71WC One Wall 18G Extra Thin Wall 0.038" (0.97 mm) 7.0 cm
Advance Angiographic Needles
AD18T71WP One Wall 18G Extra Thin Wall 0.038" (0.97 mm) 7.0 cm
Advance Angiographic Needles
AD18T71WS One Wall 18G Extra Thin Wall 0.038" (0.97 mm) 7.0 cm
Advance Angiographic Needles
AD18T71WT One Wall 18G Extra Thin Wall 0.038" (0.97 mm) 7.0 cm
Advance Angiographic Needles
AD20T71W One Wall 20G Extra Thin Wall 0.025" (0.64 mm) 7.0 cm
Advance Angiographic Needles
AD21T21WP One Wall 21G Thin Wall 0.021" (0.53 mm) 2.5 cm
Advance Angiographic Needles
AD21T21WT One Wall 21G Thin Wall 0.021" (0.53 mm) 2.5 cm
Advance Angiographic Needles
AD21T41W One Wall 21G Thin Wall 0.021" (0.53 mm) 4.0 cm
Advance Angiographic Needles
AD21T41W-E One Wall 21G Thin Wall 0.021" (0.53 mm) 4.0 cm
Advance Angiographic Needles
AD21T41WC One Wall 21G Thin Wall 0.021" (0.53 mm) 4.0 cm
Advance Angiographic Needles
AD21T41WT One Wall 21G Thin Wall 0.021" (0.53 mm) 4.0 cm
Advance Angiographic Needles
AD21T41WT-E One Wall 21G Thin Wall 0.021" (0.53 mm) 4.0 cm
Advance Angiographic Needles
AD21T71W One Wall 21G Thin Wall 0.021" (0.53 mm) 7.0 cm
Advance Angiographic Needles
AD21T71W-E One Wall 21G Thin Wall 0.021" (0.53 mm) 7.0 cm
Advance Angiographic Needles
AD21T71WT One Wall 21G Thin Wall 0.021" (0.53 mm) 7.0 cm
Advance Angiographic Needles
AD21T71WT-E One Wall 21G Thin Wall 0.021" (0.53 mm) 7.0 cm
Advance Angiographic Needles
AD19U41W One Wall 19G Ultra Thin Wall 0.035" (0.89 mm) 4.0 cm
Advance Angiographic Needles
AD19U41WC One Wall 19G Ultra Thin Wall 0.035" (0.89 mm) 4.0 cm
Advance Angiographic Needles
AD19U71W One Wall 19G Ultra Thin Wall 0.035" (0.89 mm) 7.0 cm
Advance Angiographic Needles
AD19U71W-E One Wall 19G Ultra Thin Wall 0.035" (0.89 mm) 7.0 cm
Advance Angiographic Needles
AD19U71WC One Wall 19G Ultra Thin Wall 0.035" (0.89 mm) 7.0 cm
  • Model : AD21T21W
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 21G
  • Wall Thickness : Thin Wall
  • Accepts Wire Guide : 0.021" (0.53 mm)
  • Length (cm) : 2.5 cm
  • Model : AD20T41W
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 20G
  • Wall Thickness : Extra Thin Wall
  • Accepts Wire Guide : 0.025" (0.64 mm)
  • Length (cm) : 4.0 cm
  • Model : AD18T71W
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 18G
  • Wall Thickness : Extra Thin Wall
  • Accepts Wire Guide : 0.038" (0.97 mm)
  • Length (cm) : 7.0 cm
  • Model : AD18T71W-E
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 18G
  • Wall Thickness : Extra Thin Wall
  • Accepts Wire Guide : 0.038" (0.97 mm)
  • Length (cm) : 7.0 cm
  • Model : AD18T71WC
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 18G
  • Wall Thickness : Extra Thin Wall
  • Accepts Wire Guide : 0.038" (0.97 mm)
  • Length (cm) : 7.0 cm
  • Model : AD18T71WP
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 18G
  • Wall Thickness : Extra Thin Wall
  • Accepts Wire Guide : 0.038" (0.97 mm)
  • Length (cm) : 7.0 cm
  • Model : AD18T71WS
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 18G
  • Wall Thickness : Extra Thin Wall
  • Accepts Wire Guide : 0.038" (0.97 mm)
  • Length (cm) : 7.0 cm
  • Model : AD18T71WT
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 18G
  • Wall Thickness : Extra Thin Wall
  • Accepts Wire Guide : 0.038" (0.97 mm)
  • Length (cm) : 7.0 cm
  • Model : AD20T71W
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 20G
  • Wall Thickness : Extra Thin Wall
  • Accepts Wire Guide : 0.025" (0.64 mm)
  • Length (cm) : 7.0 cm
  • Model : AD21T21WP
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 21G
  • Wall Thickness : Thin Wall
  • Accepts Wire Guide : 0.021" (0.53 mm)
  • Length (cm) : 2.5 cm
  • Model : AD21T21WT
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 21G
  • Wall Thickness : Thin Wall
  • Accepts Wire Guide : 0.021" (0.53 mm)
  • Length (cm) : 2.5 cm
  • Model : AD21T41W
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 21G
  • Wall Thickness : Thin Wall
  • Accepts Wire Guide : 0.021" (0.53 mm)
  • Length (cm) : 4.0 cm
  • Model : AD21T41W-E
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 21G
  • Wall Thickness : Thin Wall
  • Accepts Wire Guide : 0.021" (0.53 mm)
  • Length (cm) : 4.0 cm
  • Model : AD21T41WC
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 21G
  • Wall Thickness : Thin Wall
  • Accepts Wire Guide : 0.021" (0.53 mm)
  • Length (cm) : 4.0 cm
  • Model : AD21T41WT
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 21G
  • Wall Thickness : Thin Wall
  • Accepts Wire Guide : 0.021" (0.53 mm)
  • Length (cm) : 4.0 cm
  • Model : AD21T41WT-E
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 21G
  • Wall Thickness : Thin Wall
  • Accepts Wire Guide : 0.021" (0.53 mm)
  • Length (cm) : 4.0 cm
  • Model : AD21T71W
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 21G
  • Wall Thickness : Thin Wall
  • Accepts Wire Guide : 0.021" (0.53 mm)
  • Length (cm) : 7.0 cm
  • Model : AD21T71W-E
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 21G
  • Wall Thickness : Thin Wall
  • Accepts Wire Guide : 0.021" (0.53 mm)
  • Length (cm) : 7.0 cm
  • Model : AD21T71WT
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 21G
  • Wall Thickness : Thin Wall
  • Accepts Wire Guide : 0.021" (0.53 mm)
  • Length (cm) : 7.0 cm
  • Model : AD21T71WT-E
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 21G
  • Wall Thickness : Thin Wall
  • Accepts Wire Guide : 0.021" (0.53 mm)
  • Length (cm) : 7.0 cm
  • Model : AD19U41W
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 19G
  • Wall Thickness : Ultra Thin Wall
  • Accepts Wire Guide : 0.035" (0.89 mm)
  • Length (cm) : 4.0 cm
  • Model : AD19U41WC
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 19G
  • Wall Thickness : Ultra Thin Wall
  • Accepts Wire Guide : 0.035" (0.89 mm)
  • Length (cm) : 4.0 cm
  • Model : AD19U71W
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 19G
  • Wall Thickness : Ultra Thin Wall
  • Accepts Wire Guide : 0.035" (0.89 mm)
  • Length (cm) : 7.0 cm
  • Model : AD19U71W-E
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 19G
  • Wall Thickness : Ultra Thin Wall
  • Accepts Wire Guide : 0.035" (0.89 mm)
  • Length (cm) : 7.0 cm
  • Model : AD19U71WC
  • Procedure : -
  • NEEDLE TYPE : One Wall
  • GAUGE : 19G
  • Wall Thickness : Ultra Thin Wall
  • Accepts Wire Guide : 0.035" (0.89 mm)
  • Length (cm) : 7.0 cm
