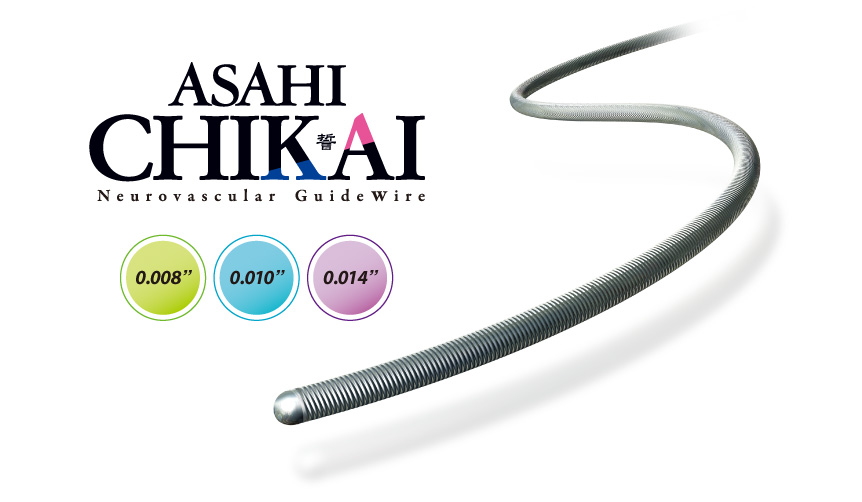

ASAHI CHIKAI

Device-Type

Coiled Stainless Steel Guidewires

Targated Speciality

Endovascular

Manufacturer

ASAHI Gaia technology

Providing good torque response, support and durability for neuro interventional procedures

ASAHI CHIKAI family of guide wires has been originally developed based on Asahi Intecc’s unique set of technologies which accomplished great success in the field of cardiovascular interventions.

Meningioma AVM/AVF Aneurysm Stroke

Technologies with Dual-coil design using ACT ONE

with ACT ONE

Employs the ASAHI brand rope coil, which provides torqueability, flexibility and resiliency.

ASAHI INTECC CO., LTD.’s unique technologies in wire drawing, wire forming, torque transmission and coating are utilized to create highly responsive guide wires featuring ASAHI’s ACT ONE, dual-coil design.

Technologies with Dual-coil design using ACT ONE


Features and Benefits

Precise torque response

ACT ONE provides exceptional torque response in tortuous anatomy.

Durable tip-shape retention

Incorporating with ACT ONE, re-shapable pre-shaped round curve and 90 degree angle enhance tip shape memory and durability.

Angle 90°

Angle 90°

* Available for CHIKAI black

Re-shapeable round curve

Re-shapeable round curve



Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model O.D. Coating Usable Length (cm) Coil length(cm) Radiopaque length(cm) Tip shape
ASAHI CHIKAI
ASAHI CHIKAI
 		WAIN-CKI-200 0.36mm (0.014inch) Hydrophilic coating (SLIP-COAT®) 170cm 200 30 5 Straight
ASAHI CHIKAI
ASAHI CHIKAI
 		WAIN-CKI-200-RC 0.36mm (0.014inch) Hydrophilic coating (SLIP-COAT®) 170cm 200 30 5 Re-shapeable round curve
ASAHI CHIKAI
ASAHI CHIKAI
 		WAIN-CKI-300 0.36mm (0.014inch) Hydrophilic coating (SLIP-COAT®) 170cm 300 30 5 Straight
ASAHI CHIKAI
ASAHI CHIKAI
 		WAIN-CKI-300-RC 0.36mm (0.014inch) Hydrophilic coating (SLIP-COAT®) 170cm 300 30 5 Re-shapeable round curve
ASAHI CHIKAI 008
ASAHI CHIKAI 008
 		WAIN-CKI-008-200 0.20/0.26mm (0.008/0.010inch) Hydrophilic coating (SLIP-COAT®) 180cm 200 9 9 Straight
ASAHI CHIKAI 10
ASAHI CHIKAI 10
 		WAIN-CKI-10-200 0.26mm (0.010inch) Hydrophilic coating (SLIP-COAT®) 170cm 200 9.5 3 Straight
ASAHI CHIKAI 10
ASAHI CHIKAI 10
 		WAIN-CKI-10-300 0.26mm (0.010inch) Hydrophilic coating (SLIP-COAT®) 170cm 300 9.5 3 Straight
ASAHI CHIKAI black
ASAHI CHIKAI black
 		WAIN-CKI-200-BS 0.36mm (0.014inch) Polymer jacket 150cm / Hydrophilic coating (SLIP-COAT®) 170cm 200 30 3 Re-shapeable round curve
ASAHI CHIKAI black
ASAHI CHIKAI black
 		WAIN-CKI-200-BA 0.36mm (0.014inch) Polymer jacket 150cm / Hydrophilic coating (SLIP-COAT®) 170cm 200 30 3 Angle 90°
ASAHI CHIKAI black 14 soft tip
ASAHI CHIKAI black 14 soft tip
 		AIN-CKI-200-B-SFT 0.36mm (0.014inch) Polymer jacket 150cm / Hydrophilic coating (SLIP-COAT®) 170cm 200 30 3 Re-shapeable round curve
ASAHI CHIKAI black 18
ASAHI CHIKAI black 18
 		WAIN-CKI-18-200-BS 0.45/0.36mm (0.018/0.014inch) Polymer jacket 150cm / Hydrophilic coating (SLIP-COAT®) 170cm 200 34 5 Re-shapeable round curve
ASAHI CHIKAI black 18 soft tip
ASAHI CHIKAI black 18 soft tip
 		AIN-CKI-18-200-SFT 0.45/0.36mm (0.018/0.014inch) Polymer jacket 150cm / Hydrophilic coating (SLIP-COAT®) 170cm 200 34 5 Re-shapeable round curve
ASAHI CHIKAI X 010
ASAHI CHIKAI X 010
 		AIN-CKX-10-200-R 0.26mm (0.010inch) Hydrophilic coating (SLIP-COAT®) 180cm 200 16 16 Re-shapeable round curve
ASAHI CHIKAI X 014 soft
ASAHI CHIKAI X 014 soft
 		AIN-CKX-14-200-SFT 0.36mm (0.014inch) Hydrophilic coating (SLIP-COAT®) 170cm 200 33 5 Straight
device-thumbnail
ASAHI CHIKAI
  • Model : WAIN-CKI-200
  • Procedure : -
  • O.D. : 0.36mm (0.014inch)
  • Coating : Hydrophilic coating (SLIP-COAT®) 170cm
  • Usable Length (cm) : 200
  • Coil length(cm) : 30
  • Radiopaque length(cm) : 5
  • Tip shape : Straight
device-thumbnail
ASAHI CHIKAI
  • Model : WAIN-CKI-200-RC
  • Procedure : -
  • O.D. : 0.36mm (0.014inch)
  • Coating : Hydrophilic coating (SLIP-COAT®) 170cm
  • Usable Length (cm) : 200
  • Coil length(cm) : 30
  • Radiopaque length(cm) : 5
  • Tip shape : Re-shapeable round curve
device-thumbnail
ASAHI CHIKAI
  • Model : WAIN-CKI-300
  • Procedure : -
  • O.D. : 0.36mm (0.014inch)
  • Coating : Hydrophilic coating (SLIP-COAT®) 170cm
  • Usable Length (cm) : 300
  • Coil length(cm) : 30
  • Radiopaque length(cm) : 5
  • Tip shape : Straight
device-thumbnail
ASAHI CHIKAI
  • Model : WAIN-CKI-300-RC
  • Procedure : -
  • O.D. : 0.36mm (0.014inch)
  • Coating : Hydrophilic coating (SLIP-COAT®) 170cm
  • Usable Length (cm) : 300
  • Coil length(cm) : 30
  • Radiopaque length(cm) : 5
  • Tip shape : Re-shapeable round curve
device-thumbnail
ASAHI CHIKAI 008
  • Model : WAIN-CKI-008-200
  • Procedure : -
  • O.D. : 0.20/0.26mm (0.008/0.010inch)
  • Coating : Hydrophilic coating (SLIP-COAT®) 180cm
  • Usable Length (cm) : 200
  • Coil length(cm) : 9
  • Radiopaque length(cm) : 9
  • Tip shape : Straight
device-thumbnail
ASAHI CHIKAI 10
  • Model : WAIN-CKI-10-200
  • Procedure : -
  • O.D. : 0.26mm (0.010inch)
  • Coating : Hydrophilic coating (SLIP-COAT®) 170cm
  • Usable Length (cm) : 200
  • Coil length(cm) : 9.5
  • Radiopaque length(cm) : 3
  • Tip shape : Straight
device-thumbnail
ASAHI CHIKAI 10
  • Model : WAIN-CKI-10-300
  • Procedure : -
  • O.D. : 0.26mm (0.010inch)
  • Coating : Hydrophilic coating (SLIP-COAT®) 170cm
  • Usable Length (cm) : 300
  • Coil length(cm) : 9.5
  • Radiopaque length(cm) : 3
  • Tip shape : Straight
device-thumbnail
ASAHI CHIKAI black
  • Model : WAIN-CKI-200-BS
  • Procedure : -
  • O.D. : 0.36mm (0.014inch)
  • Coating : Polymer jacket 150cm / Hydrophilic coating (SLIP-COAT®) 170cm
  • Usable Length (cm) : 200
  • Coil length(cm) : 30
  • Radiopaque length(cm) : 3
  • Tip shape : Re-shapeable round curve
device-thumbnail
ASAHI CHIKAI black
  • Model : WAIN-CKI-200-BA
  • Procedure : -
  • O.D. : 0.36mm (0.014inch)
  • Coating : Polymer jacket 150cm / Hydrophilic coating (SLIP-COAT®) 170cm
  • Usable Length (cm) : 200
  • Coil length(cm) : 30
  • Radiopaque length(cm) : 3
  • Tip shape : Angle 90°
device-thumbnail
ASAHI CHIKAI black 14 soft tip
  • Model : AIN-CKI-200-B-SFT
  • Procedure : -
  • O.D. : 0.36mm (0.014inch)
  • Coating : Polymer jacket 150cm / Hydrophilic coating (SLIP-COAT®) 170cm
  • Usable Length (cm) : 200
  • Coil length(cm) : 30
  • Radiopaque length(cm) : 3
  • Tip shape : Re-shapeable round curve
device-thumbnail
ASAHI CHIKAI black 18
  • Model : WAIN-CKI-18-200-BS
  • Procedure : -
  • O.D. : 0.45/0.36mm (0.018/0.014inch)
  • Coating : Polymer jacket 150cm / Hydrophilic coating (SLIP-COAT®) 170cm
  • Usable Length (cm) : 200
  • Coil length(cm) : 34
  • Radiopaque length(cm) : 5
  • Tip shape : Re-shapeable round curve
device-thumbnail
ASAHI CHIKAI black 18 soft tip
  • Model : AIN-CKI-18-200-SFT
  • Procedure : -
  • O.D. : 0.45/0.36mm (0.018/0.014inch)
  • Coating : Polymer jacket 150cm / Hydrophilic coating (SLIP-COAT®) 170cm
  • Usable Length (cm) : 200
  • Coil length(cm) : 34
  • Radiopaque length(cm) : 5
  • Tip shape : Re-shapeable round curve
device-thumbnail
ASAHI CHIKAI X 010
  • Model : AIN-CKX-10-200-R
  • Procedure : -
  • O.D. : 0.26mm (0.010inch)
  • Coating : Hydrophilic coating (SLIP-COAT®) 180cm
  • Usable Length (cm) : 200
  • Coil length(cm) : 16
  • Radiopaque length(cm) : 16
  • Tip shape : Re-shapeable round curve
device-thumbnail
ASAHI CHIKAI X 014 soft
  • Model : AIN-CKX-14-200-SFT
  • Procedure : -
  • O.D. : 0.36mm (0.014inch)
  • Coating : Hydrophilic coating (SLIP-COAT®) 170cm
  • Usable Length (cm) : 200
  • Coil length(cm) : 33
  • Radiopaque length(cm) : 5
  • Tip shape : Straight
