AZUR® CX Peripheral Coil System

Device-Type

Embolization Coil

Manufacturer

Terumo Interventional Systems

Used in Procedure

Embolization

The Detachable Azur CX Peripheral Coil System (Azur system) consists of a coil implant attached to a delivery system. The coils are platinum coils with an inner layer of hydrophilic polymer. The delivery pusher is powered by an Azur Detachment Controller to selectively detach the coils. The Azur Detachment Controller is provided separately.


The Azur system is available in a broad range of coil diameters and lengths. The coil must be delivered only through a wirereinforced microcatheter with the inner diameter specified.


The Detachable Azur CX 35 Peripheral Coil System (Azur system) consists of a coil implant attached to a delivery system. The coils are platinum-based coils with an inner layer of hydrophilic polymer. The delivery pusher is powered by an Azur Detachment Controller to selectively detach the coils. The Azur Detachment Controller is provided separately.


The Azur system is available in a broad range of coil diameters and lengths. The AZUR Detachable 35 coil must be delivered through a double-braid reinforced catheter with the inner diameter specified.


Features and Benefits

OPTIMIZE OUTCOMES IN MORE PROCEDURES

2mm and 3mm sizes are available for small vessel embolization

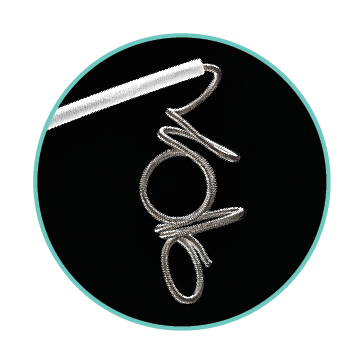

SOFT, FLEXIBLE AND PRECISE FOR CONTROLLED DELIVERY

  • Mechanical occlusion — less reliance on thrombus formation1
  • Soft feel with up to 30 minutes repositioning time*

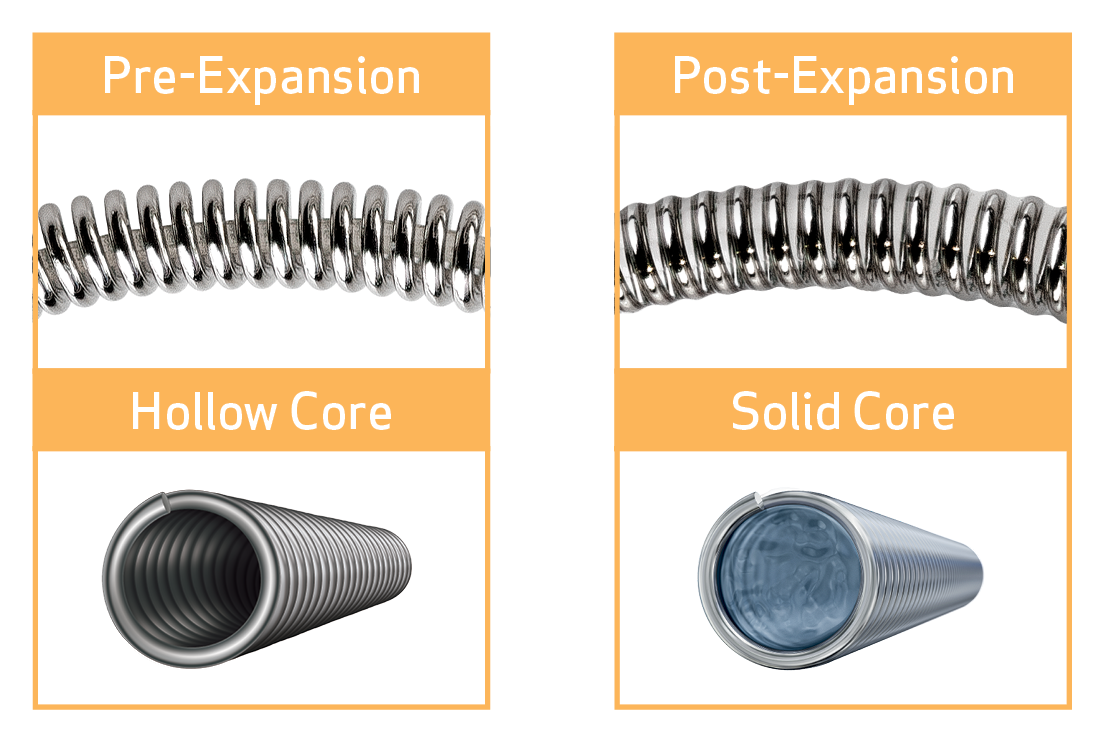

DESIGNED TO FORM A SOLID CORE

  • Enables expansion between the gaps with Hydrogel that will not be absorbed by the body1,2

Use Case Examples

The Azur system is intended to reduce or block the rate of blood flow in vessels of the peripheral vasculature. It is intended for use in the interventional radiologic management of arteriovenous malformations, arteriovenous fistulae, aneurysms, and other lesions of the peripheral vasculature. This device should only be used by physicians who have undergone training in the use of the Azur system for embolization procedures as prescribed by a representative from Terumo or a Terumo-authorized distributor.

Safety informations

CONTRAINDICATIONS

Use of the Azur system is contraindicated in any of the following circumstances:

• When superselective coil placement is not possible.

• When end arteries lead directly to nerves.

• When arteries supplying the lesion to be treated are not large enough to accept emboli.

• When the A-V shunt is larger than the coil.

• In the presence of severe atheromatous disease.

• In the presence of vasospasm (or likely onset of vasospasm).

Potential adverse events

Potential complications include, but are not limited to: hematoma at the site of entry, vessel/aneurysm perforation, unintended parent artery occlusion, incomplete filling, vascular thrombosis, hemorrhage, ischemia, vasospasm, edema, coil migration or misplacement, premature or difficult coil detachment, clot formation, revascularization, post-embolization syndrome, and neurological deficits including stroke and possibly death. The physician should be aware of these complications and instruct patients when indicated. Appropriate patient management should be considered.

Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model Description 1/BX LOOP DIAMETER (mm) LENGTH (cm) NUMBER OF LOOPS OD (in) VOLUME (mm3 )
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-780202 AZUR CX 18D System 2 mm x 2 cm 2 2 3 0.015 2.28
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-780204 AZUR CX 18D System 2 mm x 4 cm 2 4 6 0.015 4.56
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-780304 AZUR CX 18D System 3 mm x 4 cm 3 4 4 0.015 4.56
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-780308 AZUR CX 18D System 3 mm x 8 cm 3 8 8 0.015 9.12
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-780413 AZUR CX 18D System 4 mm x 13 cm 4 13 9 0.015 14.82
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-780516 AZUR CX 18D System 5 mm x 16 cm 5 16 9 0.015 18.24
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-780620 AZUR CX 18D System 6 mm x 20 cm 6 20 9 0.015 22.8
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-780724 AZUR CX 18D System 7 mm x 24 cm 7 24 9 0.015 23.84
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-780828 AZUR CX 18D System 8 mm x 28 cm 8 28 9 0.015 31.92
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-780928 AZUR CX 18D System 9 mm x 28 cm 9 28 8 0.015 31.92
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-781032 AZUR CX 18D System 10 mm x 32 cm 10 32 8 0.015 36.48
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-781238 AZUR CX 18D System 12 mm x 38 cm 12 38 8 0.015 43.32
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-781434 AZUR CX 18D System 14 mm x 34 cm 14 34 6 0.015 38.76
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-781639 AZUR CX 18D System 16 mm x39 cm 16 39 6 0.015 44.46
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-781836 AZUR CX 18D System 18 mm x 36 cm 18 36 5 0.015 41.04
AZUR® CX Detachable 0.018” System
AZUR® CX Detachable 0.018” System
 		45-782040 AZUR CX 18D System 20 mm x 40 cm 20 40 5 0.015 45.6
AZUR® CX Detachable 0.035” System
AZUR® CX Detachable 0.035” System
 		45-750407 AZUR CX Detachable 035 4 mm x 7 cm 4 7 6 0.029 29.83
AZUR® CX Detachable 0.035” System
AZUR® CX Detachable 0.035” System
 		45-750511 AZUR CX Detachable 035 5 mm x 11 cm 5 11 7 0.029 46.88
AZUR® CX Detachable 0.035” System
AZUR® CX Detachable 0.035” System
 		45 -750609 AZUR CX Detachable 035 6 mm x 9 cm 6 9 4 0.029 38.35
AZUR® CX Detachable 0.035” System
AZUR® CX Detachable 0.035” System
 		45-750617 AZUR CX Detachable 035 6 mm x 1? cm 6 17 8 0.029 72.44
AZUR® CX Detachable 0.035” System
AZUR® CX Detachable 0.035” System
 		45 -750812 AZUR CX Detachable 035 8 mm x 12 cm 8 12 4 0.029 51.14
AZUR® CX Detachable 0.035” System
AZUR® CX Detachable 0.035” System
 		45-750824 AZUR CX Detachable 035 8 mm x 24 cm 8 24 8 0.029 102.27
AZUR® CX Detachable 0.035” System
AZUR® CX Detachable 0.035” System
 		45-751019 AZUR CX Detachable 035 10 mm x 19 cm 10 19 5 0.029 80.97
AZUR® CX Detachable 0.035” System
AZUR® CX Detachable 0.035” System
 		45-751324 AZUR CX Detachable 035 13 mm x 24 cm 13 24 5 0.029 102.27
AZUR® CX Detachable 0.035” System
AZUR® CX Detachable 0.035” System
 		45-751632 AZUR CX Detachable 035 16 mm x 32 cm 16 32 5 0.029 136.37
AZUR® CX Detachable 0.035” System
AZUR® CX Detachable 0.035” System
 		45-752039 AZUR CX Detachable 035 20 mm x 39 cm 20 39 5 0.029 166.19
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-780202
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 2 mm x 2 cm
  • LOOP DIAMETER (mm) : 2
  • LENGTH (cm) : 2
  • NUMBER OF LOOPS : 3
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 2.28
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-780204
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 2 mm x 4 cm
  • LOOP DIAMETER (mm) : 2
  • LENGTH (cm) : 4
  • NUMBER OF LOOPS : 6
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 4.56
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-780304
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 3 mm x 4 cm
  • LOOP DIAMETER (mm) : 3
  • LENGTH (cm) : 4
  • NUMBER OF LOOPS : 4
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 4.56
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-780308
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 3 mm x 8 cm
  • LOOP DIAMETER (mm) : 3
  • LENGTH (cm) : 8
  • NUMBER OF LOOPS : 8
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 9.12
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-780413
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 4 mm x 13 cm
  • LOOP DIAMETER (mm) : 4
  • LENGTH (cm) : 13
  • NUMBER OF LOOPS : 9
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 14.82
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-780516
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 5 mm x 16 cm
  • LOOP DIAMETER (mm) : 5
  • LENGTH (cm) : 16
  • NUMBER OF LOOPS : 9
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 18.24
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-780620
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 6 mm x 20 cm
  • LOOP DIAMETER (mm) : 6
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 9
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 22.8
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-780724
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 7 mm x 24 cm
  • LOOP DIAMETER (mm) : 7
  • LENGTH (cm) : 24
  • NUMBER OF LOOPS : 9
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 23.84
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-780828
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 8 mm x 28 cm
  • LOOP DIAMETER (mm) : 8
  • LENGTH (cm) : 28
  • NUMBER OF LOOPS : 9
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 31.92
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-780928
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 9 mm x 28 cm
  • LOOP DIAMETER (mm) : 9
  • LENGTH (cm) : 28
  • NUMBER OF LOOPS : 8
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 31.92
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-781032
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 10 mm x 32 cm
  • LOOP DIAMETER (mm) : 10
  • LENGTH (cm) : 32
  • NUMBER OF LOOPS : 8
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 36.48
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-781238
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 12 mm x 38 cm
  • LOOP DIAMETER (mm) : 12
  • LENGTH (cm) : 38
  • NUMBER OF LOOPS : 8
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 43.32
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-781434
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 14 mm x 34 cm
  • LOOP DIAMETER (mm) : 14
  • LENGTH (cm) : 34
  • NUMBER OF LOOPS : 6
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 38.76
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-781639
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 16 mm x39 cm
  • LOOP DIAMETER (mm) : 16
  • LENGTH (cm) : 39
  • NUMBER OF LOOPS : 6
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 44.46
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-781836
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 18 mm x 36 cm
  • LOOP DIAMETER (mm) : 18
  • LENGTH (cm) : 36
  • NUMBER OF LOOPS : 5
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 41.04
device-thumbnail
AZUR® CX Detachable 0.018” System
  • Model : 45-782040
  • Procedure : -
  • Description 1/BX : AZUR CX 18D System 20 mm x 40 cm
  • LOOP DIAMETER (mm) : 20
  • LENGTH (cm) : 40
  • NUMBER OF LOOPS : 5
  • OD (in) : 0.015
  • VOLUME (mm3 ) : 45.6
device-thumbnail
AZUR® CX Detachable 0.035” System
  • Model : 45-750407
  • Procedure : -
  • Description 1/BX : AZUR CX Detachable 035 4 mm x 7 cm
  • LOOP DIAMETER (mm) : 4
  • LENGTH (cm) : 7
  • NUMBER OF LOOPS : 6
  • OD (in) : 0.029
  • VOLUME (mm3 ) : 29.83
device-thumbnail
AZUR® CX Detachable 0.035” System
  • Model : 45-750511
  • Procedure : -
  • Description 1/BX : AZUR CX Detachable 035 5 mm x 11 cm
  • LOOP DIAMETER (mm) : 5
  • LENGTH (cm) : 11
  • NUMBER OF LOOPS : 7
  • OD (in) : 0.029
  • VOLUME (mm3 ) : 46.88
device-thumbnail
AZUR® CX Detachable 0.035” System
  • Model : 45 -750609
  • Procedure : -
  • Description 1/BX : AZUR CX Detachable 035 6 mm x 9 cm
  • LOOP DIAMETER (mm) : 6
  • LENGTH (cm) : 9
  • NUMBER OF LOOPS : 4
  • OD (in) : 0.029
  • VOLUME (mm3 ) : 38.35
device-thumbnail
AZUR® CX Detachable 0.035” System
  • Model : 45-750617
  • Procedure : -
  • Description 1/BX : AZUR CX Detachable 035 6 mm x 1? cm
  • LOOP DIAMETER (mm) : 6
  • LENGTH (cm) : 17
  • NUMBER OF LOOPS : 8
  • OD (in) : 0.029
  • VOLUME (mm3 ) : 72.44
device-thumbnail
AZUR® CX Detachable 0.035” System
  • Model : 45 -750812
  • Procedure : -
  • Description 1/BX : AZUR CX Detachable 035 8 mm x 12 cm
  • LOOP DIAMETER (mm) : 8
  • LENGTH (cm) : 12
  • NUMBER OF LOOPS : 4
  • OD (in) : 0.029
  • VOLUME (mm3 ) : 51.14
device-thumbnail
AZUR® CX Detachable 0.035” System
  • Model : 45-750824
  • Procedure : -
  • Description 1/BX : AZUR CX Detachable 035 8 mm x 24 cm
  • LOOP DIAMETER (mm) : 8
  • LENGTH (cm) : 24
  • NUMBER OF LOOPS : 8
  • OD (in) : 0.029
  • VOLUME (mm3 ) : 102.27
device-thumbnail
AZUR® CX Detachable 0.035” System
  • Model : 45-751019
  • Procedure : -
  • Description 1/BX : AZUR CX Detachable 035 10 mm x 19 cm
  • LOOP DIAMETER (mm) : 10
  • LENGTH (cm) : 19
  • NUMBER OF LOOPS : 5
  • OD (in) : 0.029
  • VOLUME (mm3 ) : 80.97
device-thumbnail
AZUR® CX Detachable 0.035” System
  • Model : 45-751324
  • Procedure : -
  • Description 1/BX : AZUR CX Detachable 035 13 mm x 24 cm
  • LOOP DIAMETER (mm) : 13
  • LENGTH (cm) : 24
  • NUMBER OF LOOPS : 5
  • OD (in) : 0.029
  • VOLUME (mm3 ) : 102.27
device-thumbnail
AZUR® CX Detachable 0.035” System
  • Model : 45-751632
  • Procedure : -
  • Description 1/BX : AZUR CX Detachable 035 16 mm x 32 cm
  • LOOP DIAMETER (mm) : 16
  • LENGTH (cm) : 32
  • NUMBER OF LOOPS : 5
  • OD (in) : 0.029
  • VOLUME (mm3 ) : 136.37
device-thumbnail
AZUR® CX Detachable 0.035” System
  • Model : 45-752039
  • Procedure : -
  • Description 1/BX : AZUR CX Detachable 035 20 mm x 39 cm
  • LOOP DIAMETER (mm) : 20
  • LENGTH (cm) : 39
  • NUMBER OF LOOPS : 5
  • OD (in) : 0.029
  • VOLUME (mm3 ) : 166.19

Questions & Answers

Don't see the answer you're looking for ?
