AZUR® Peripheral HydroCoil Embolization System

Device-Type

Embolization

Manufacturer

Terumo Interventional Systems

Used in Procedure

Embolization

The Detachable Azur Peripheral Coil System consists of a coil implant attached to delivery system. The coils are platinum coils with an outer layer of hydrophilic polymer. The delivery pusher is powered by an Azar Detachable Controller to selectively detach the coils. The Azar Detachment Controller is provided separately.

Features and Benefits

SUPERIOR FILLING VOLUME AND PACKING DENSITY


AZUR Peripheral Hydrocoil has superior mechanical stability2-5 and offers the potential to use less coils which may provide cost saving per procedure.


SUPERIOR FILLING VOLUME AND PACKING DENSITY COMPARED TO BARE PLATINUM COILS

The AZUR Peripheral HydroCoil Embolization System combines a platinum coil and an expandable hydrogel polymer. In concert, these elements provide a uniquely stable and permanent platform for blood stasis, thrombus organization, and neointima formation

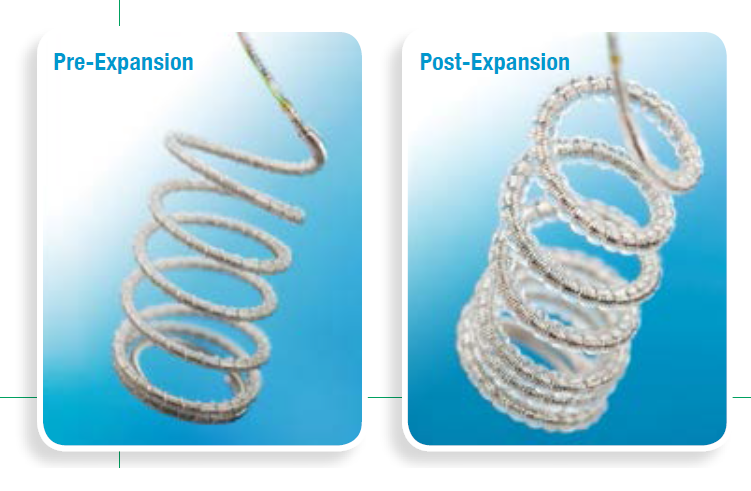

AZUR’s hydrogel coating undergoes limited expansion within the first 3 minutes, and fully expands within 20 minutes*. The result is greater filling and mechanical stability with fewer coils – nearly 5 times more filling volume for the 0.018" coil and 4 times more filling volume for the .035" coil (versus platinum coils of the same size). In other words, AZUR works harder so you don’t have to.


Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model Description 1/BX LOOP DIAMETER (mm) LENGTH (cm) NUMBER OF LOOPS OD (in) COIN STACK LENGTH (mm) VOLUME (mm3 )
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480202 AZUR 18D System 2 mm x 2 cm 2 2 3.18 0.034 2.75 11.72
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480204 AZUR 18D System 2 mm x 4 cm 2 4 6.36 0.034 5.49 23.43
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480302 AZUR 18D System 3 mm x 2 cm 3 2 2.12 0.034 1.83 11.72
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480305 AZUR 18D System 3 mm x 5 cm 3 5 5.31 0.034 4.59 29.29
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480310 AZUR 18D System 3 mm x 10 cm 3 10 10.61 0.034 9.16 58.58
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480405 AZUR 18D System 4 mm x 5 cm 4 5 3.98 0.034 3.44 29.29
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480410 AZUR 18D System 4 mm x 10 cm 4 10 7.96 0.034 6.87 58.58
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480415 AZUR 18D System 4 mm x 15 cm 4 15 11.94 0.034 10.31 87.86
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480420 AZUR 18D System 4 mm x 20 cm 4 20 15.92 0.034 13.75 117.15
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480505 AZUR 18D System 5 mm x 5 cm 5 5 3.18 0.034 2.75 29.29
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480510 AZUR 18D System 5 mm x 10 cm 5 10 6.37 0.034 5.5 58.58
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480515 AZUR 18D System 5 mm x 15 cm 5 15 9.55 0.034 825 87.86
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480520 AZUR 18D System 5 mm x 20 cm 5 20 12.73 0.034 11 117.15
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480610 AZUR 18D System 6 mm x 10 cm 6 10 5.31 0.034 4.59 58.58
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480615 AZUR 18D System 6 mm x 15 cm 6 15 7.96 0.034 6.87 87.86
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480620 AZUR 18D System 6 mm x 20 cm 6 20 10.61 0.034 9.16 117.15
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-48081O AZUR 18D System 8 mm x 1O cm 8 10 3.98 0.034 3.44 58.58
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480815 AZUR 18D System 8 mm x 15 cm 8 15 5.97 0.034 5.16 87.86
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-480820 AZUR 18D System 8 mm x 20 cm 8 20 7.96 0.034 6.87 117.15
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-481010 AZUR 18D System 10 mm x 10 cm 10 10 3.18 0.034 2.75 58.58
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-481015 AZUR 18D System 10 mm x 15 cm 10 15 4.77 0.034 4.12 87.86
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-481020 AZUR 18D System 10 mm x 20 cm 10 20 6.37 0.034 5.5 117.15
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-481215 AZUR 18D System 12 mm x 15 cm 12 15 3.98 0.034 3.44 87.86
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-481220 AZUR 18D System 12 mm x 20 cm 12 20 5.31 0.034 4.59 117.15
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-481515 AZUR 18D System 15 mm x 15 cm 15 15 3.18 0.034 2.75 87.86
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-481520 AZUR 18D System 15 mm x 20 cm 15 20 4.24 0.034 3.66 117.15
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-481530 AZUR 18D System 15 mm x 30 cm 15 30 6.37 0.034 5.5 175.73
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-482020 AZUR 18D System 20 mm x 20 cm 20 20 3.18 0.034 2.75 117.15
AZUR HydroCoil Detachable .018"
AZUR HydroCoil Detachable .018"
 		45-482030 AZUR 18D System 20 mm x 30 cm 20 30 4.77 0.034 4.12 175.73
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-450405 AZUR 35D System 4 mm x 5 cm 4 5 3.98 0.048 4.85 58.37
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-450410 AZUR 35D System 4 mm x 10 cm 4 10 7.96 0.048 9.71 116.75
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-450415 AZUR 35D System 4 mm x 15 cm 4 15 11.94 0.048 14.56 175.12
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-450610 AZUR 35D System 6 mm x 10 cm 6 10 5.31 0.048 6.47 116.75
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-450615 AZUR 35D System 6 mm x 15 cm 6 15 7.96 0.048 9.71 175.12
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-450620 AZUR 35D System 6 mm x 20 cm 6 20 10.62 0.048 12.94 233.49
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-450815 AZUR 35D System 8 mm x 15 cm 8 15 5.97 0.048 7.28 175.12
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-450820 AZUR 35D System 8 mm x 20 cm 8 20 7.96 0.048 9.71 233.49
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-451015 AZUR 35D System 10 mm x 15 cm 10 15 4.78 0.048 5.82 175.12
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-451020 AZUR 35D System 10 mm x 20 cm 10 20 6.37 0.048 7.77 233.49
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-451215 AZUR 35D System 12 mm x 15 cm 12 15 3.98 0.048 4.85 175.12
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-451220 AZUR 35D System 12 mm x 20 cm 12 20 5.31 0.048 6.47 233.49
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-451230 AZUR 35D System 12 mm x 30 cm 12 30 7.96 0.048 9.71 350.24
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-451520 AZUR 35D System 15 mm x 20 cm 15 20 4.25 0.048 5.18 233.49
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-451530 AZUR 35D System 15 mm x 30 cm 15 30 6.37 0.048 7.77 350.24
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-452020 AZUR 35D System 20 mm x 20 cm 20 20 3.18 0.048 3.88 233.49
AZUR HydroCoil Detachable .035"
AZUR HydroCoil Detachable .035"
 		45-452030 AZUR 35D System 20 mm x 30 cm 20 30 4.77 0.048 5.82 350.24
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280202 AZUR 18P System 2 mm x 2 cm 2 2 3.18 0.034 2.75 11.72
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280302 AZUR 18P System 3 mm x 2 cm 3 2 2.12 0.034 1.83 11.72
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280304 AZUR 18P System 3 mm x 4 cm 3 4 4.24 0.034 3.66 23.43
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280402 AZUR 18P System 4 mm x 2 cm 4 2 1.59 0.034 1.37 11.72
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280404 AZUR 18P System 4 mm x 4 cm 4 4 3.18 0.034 2.75 23.43
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45 -280406 AZUR 18P System 4 mm x 6 cm 4 6 4.77 0.034 4.12 35.15
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280504 AZUR 18P System 5 mm x 4 cm 5 4 2.55 0.034 2.2 23.43
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280506 AZUR 18P System 5 mm x 6 cm 5 6 3.82 0.034 3.3 35.15
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280510 AZUR 18P System 5 mm x 10 cm 5 10 6.37 0.034 5.5 58.58
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280514 AZUR 18P System 5 mm x 14 cm 5 14 8.91 0.034 7.7 82.01
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280606 AZUR 18P System 6 mm x 6 cm 6 6 3.18 0.034 2.75 35.15
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280610 AZUR 18P System 6 mm x 10 cm 6 10 5.31 0.034 4.59 58.58
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280614 AZUR 18P System 6 mm x 14 cm 6 14 7.43 0.034 6.42 82.01
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280620 AZUR 18P System 6 mm x 20 cm 6 20 10.61 0.034 9.16 117.15
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280810 AZUR 18P System 8 mm x 10 cm 8 10 3.98 0.034 3.44 58.58
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280814 AZUR 18P System 8 mm x 14cm 8 14 5.57 0.034 4.81 82.01
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-280820 AZUR 18P System 8 mm x 20 cm 8 20 7.96 0.034 6.87 117.15
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-281014 AZUR 18P System 10 mm x 14 cm 10 14 4.46 0.034 3.85 82.01
AZUR HydroCoil Pushable .018"
AZUR HydroCoil Pushable .018"
 		45-281020 AZUR 18P System 10 mm x 20 cm 10 20 6.37 0.034 5.5 117.15
AZUR HydroCoil Pushable .035"
AZUR HydroCoil Pushable .035"
 		45-250404 AZUA 35P System 4 mm x 4 cm 4 4 3.18 0.048 3.88 46.7
AZUR HydroCoil Pushable .035"
AZUR HydroCoil Pushable .035"
 		45-250406 AZUA 35P System 4 mm x 6 cm 4 6 4.77 0.048 5.82 70.05
AZUR HydroCoil Pushable .035"
AZUR HydroCoil Pushable .035"
 		45-250506 AZUA 35P System 5 mm x 6 cm 5 6 3.82 0.048 4.66 70.05
AZUR HydroCoil Pushable .035"
AZUR HydroCoil Pushable .035"
 		45-250510 AZUA 35P System 5 mm x 10 cm 5 10 6.37 0.048 7.77 116.75
AZUR HydroCoil Pushable .035"
AZUR HydroCoil Pushable .035"
 		45-250610 AZUA 35P System 6 mm x 10 cm 6 10 5.31 0.048 6.47 116.75
AZUR HydroCoil Pushable .035"
AZUR HydroCoil Pushable .035"
 		45 -250614 AZUA 35P System 6 mm x 14 cm 6 14 7.43 0.048 9.06 163.44
AZUR HydroCoil Pushable .035"
AZUR HydroCoil Pushable .035"
 		45-250810 AZUA 35P System 8 mm x 10 cm 8 10 3.98 0.048 4.85 116.75
AZUR HydroCoil Pushable .035"
AZUR HydroCoil Pushable .035"
 		45-250814 AZUA 35P System 8 mm x 14 cm 8 14 5.57 0.048 6.79 163.44
AZUR HydroCoil Pushable .035"
AZUR HydroCoil Pushable .035"
 		45-250820 AZUA 35P System 8 mm x 20 cm 8 20 7.96 0.048 9.7 233.49
AZUR HydroCoil Pushable .035"
AZUR HydroCoil Pushable .035"
 		45-251014 AZUA 35P System 10 mm x 14 cm 10 14 4.46 0.048 5.44 163.44
AZUR HydroCoil Pushable .035"
AZUR HydroCoil Pushable .035"
 		45-251020 AZUA 35P System 10 mm x 20 cm 10 20 6.37 0.048 7.76 233.49
AZUR HydroCoil Pushable .035"
AZUR HydroCoil Pushable .035"
 		45-251514 AZUA 35P System 15 mm x 14 cm 15 14 2.97 0.048 3.62 163.44
AZUR HydroCoil Pushable .035"
AZUR HydroCoil Pushable .035"
 		45-251520 AZUA 35P System 15 mm x 20 cm 15 20 4.24 0.048 5.17 233.49
AZUR HydroCoil Pushable .035"
AZUR HydroCoil Pushable .035"
 		45-251620 AZUA 35P System 16 mm x 20 cm 16 20 3.98 0.048 4.85 233.49
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480202
  • Procedure : -
  • Description 1/BX : AZUR 18D System 2 mm x 2 cm
  • LOOP DIAMETER (mm) : 2
  • LENGTH (cm) : 2
  • NUMBER OF LOOPS : 3.18
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 2.75
  • VOLUME (mm3 ) : 11.72
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480204
  • Procedure : -
  • Description 1/BX : AZUR 18D System 2 mm x 4 cm
  • LOOP DIAMETER (mm) : 2
  • LENGTH (cm) : 4
  • NUMBER OF LOOPS : 6.36
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 5.49
  • VOLUME (mm3 ) : 23.43
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480302
  • Procedure : -
  • Description 1/BX : AZUR 18D System 3 mm x 2 cm
  • LOOP DIAMETER (mm) : 3
  • LENGTH (cm) : 2
  • NUMBER OF LOOPS : 2.12
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 1.83
  • VOLUME (mm3 ) : 11.72
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480305
  • Procedure : -
  • Description 1/BX : AZUR 18D System 3 mm x 5 cm
  • LOOP DIAMETER (mm) : 3
  • LENGTH (cm) : 5
  • NUMBER OF LOOPS : 5.31
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 4.59
  • VOLUME (mm3 ) : 29.29
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480310
  • Procedure : -
  • Description 1/BX : AZUR 18D System 3 mm x 10 cm
  • LOOP DIAMETER (mm) : 3
  • LENGTH (cm) : 10
  • NUMBER OF LOOPS : 10.61
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 9.16
  • VOLUME (mm3 ) : 58.58
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480405
  • Procedure : -
  • Description 1/BX : AZUR 18D System 4 mm x 5 cm
  • LOOP DIAMETER (mm) : 4
  • LENGTH (cm) : 5
  • NUMBER OF LOOPS : 3.98
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 3.44
  • VOLUME (mm3 ) : 29.29
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480410
  • Procedure : -
  • Description 1/BX : AZUR 18D System 4 mm x 10 cm
  • LOOP DIAMETER (mm) : 4
  • LENGTH (cm) : 10
  • NUMBER OF LOOPS : 7.96
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 6.87
  • VOLUME (mm3 ) : 58.58
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480415
  • Procedure : -
  • Description 1/BX : AZUR 18D System 4 mm x 15 cm
  • LOOP DIAMETER (mm) : 4
  • LENGTH (cm) : 15
  • NUMBER OF LOOPS : 11.94
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 10.31
  • VOLUME (mm3 ) : 87.86
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480420
  • Procedure : -
  • Description 1/BX : AZUR 18D System 4 mm x 20 cm
  • LOOP DIAMETER (mm) : 4
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 15.92
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 13.75
  • VOLUME (mm3 ) : 117.15
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480505
  • Procedure : -
  • Description 1/BX : AZUR 18D System 5 mm x 5 cm
  • LOOP DIAMETER (mm) : 5
  • LENGTH (cm) : 5
  • NUMBER OF LOOPS : 3.18
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 2.75
  • VOLUME (mm3 ) : 29.29
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480510
  • Procedure : -
  • Description 1/BX : AZUR 18D System 5 mm x 10 cm
  • LOOP DIAMETER (mm) : 5
  • LENGTH (cm) : 10
  • NUMBER OF LOOPS : 6.37
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 5.5
  • VOLUME (mm3 ) : 58.58
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480515
  • Procedure : -
  • Description 1/BX : AZUR 18D System 5 mm x 15 cm
  • LOOP DIAMETER (mm) : 5
  • LENGTH (cm) : 15
  • NUMBER OF LOOPS : 9.55
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 825
  • VOLUME (mm3 ) : 87.86
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480520
  • Procedure : -
  • Description 1/BX : AZUR 18D System 5 mm x 20 cm
  • LOOP DIAMETER (mm) : 5
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 12.73
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 11
  • VOLUME (mm3 ) : 117.15
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480610
  • Procedure : -
  • Description 1/BX : AZUR 18D System 6 mm x 10 cm
  • LOOP DIAMETER (mm) : 6
  • LENGTH (cm) : 10
  • NUMBER OF LOOPS : 5.31
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 4.59
  • VOLUME (mm3 ) : 58.58
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480615
  • Procedure : -
  • Description 1/BX : AZUR 18D System 6 mm x 15 cm
  • LOOP DIAMETER (mm) : 6
  • LENGTH (cm) : 15
  • NUMBER OF LOOPS : 7.96
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 6.87
  • VOLUME (mm3 ) : 87.86
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480620
  • Procedure : -
  • Description 1/BX : AZUR 18D System 6 mm x 20 cm
  • LOOP DIAMETER (mm) : 6
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 10.61
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 9.16
  • VOLUME (mm3 ) : 117.15
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-48081O
  • Procedure : -
  • Description 1/BX : AZUR 18D System 8 mm x 1O cm
  • LOOP DIAMETER (mm) : 8
  • LENGTH (cm) : 10
  • NUMBER OF LOOPS : 3.98
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 3.44
  • VOLUME (mm3 ) : 58.58
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480815
  • Procedure : -
  • Description 1/BX : AZUR 18D System 8 mm x 15 cm
  • LOOP DIAMETER (mm) : 8
  • LENGTH (cm) : 15
  • NUMBER OF LOOPS : 5.97
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 5.16
  • VOLUME (mm3 ) : 87.86
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-480820
  • Procedure : -
  • Description 1/BX : AZUR 18D System 8 mm x 20 cm
  • LOOP DIAMETER (mm) : 8
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 7.96
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 6.87
  • VOLUME (mm3 ) : 117.15
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-481010
  • Procedure : -
  • Description 1/BX : AZUR 18D System 10 mm x 10 cm
  • LOOP DIAMETER (mm) : 10
  • LENGTH (cm) : 10
  • NUMBER OF LOOPS : 3.18
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 2.75
  • VOLUME (mm3 ) : 58.58
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-481015
  • Procedure : -
  • Description 1/BX : AZUR 18D System 10 mm x 15 cm
  • LOOP DIAMETER (mm) : 10
  • LENGTH (cm) : 15
  • NUMBER OF LOOPS : 4.77
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 4.12
  • VOLUME (mm3 ) : 87.86
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-481020
  • Procedure : -
  • Description 1/BX : AZUR 18D System 10 mm x 20 cm
  • LOOP DIAMETER (mm) : 10
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 6.37
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 5.5
  • VOLUME (mm3 ) : 117.15
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-481215
  • Procedure : -
  • Description 1/BX : AZUR 18D System 12 mm x 15 cm
  • LOOP DIAMETER (mm) : 12
  • LENGTH (cm) : 15
  • NUMBER OF LOOPS : 3.98
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 3.44
  • VOLUME (mm3 ) : 87.86
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-481220
  • Procedure : -
  • Description 1/BX : AZUR 18D System 12 mm x 20 cm
  • LOOP DIAMETER (mm) : 12
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 5.31
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 4.59
  • VOLUME (mm3 ) : 117.15
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-481515
  • Procedure : -
  • Description 1/BX : AZUR 18D System 15 mm x 15 cm
  • LOOP DIAMETER (mm) : 15
  • LENGTH (cm) : 15
  • NUMBER OF LOOPS : 3.18
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 2.75
  • VOLUME (mm3 ) : 87.86
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-481520
  • Procedure : -
  • Description 1/BX : AZUR 18D System 15 mm x 20 cm
  • LOOP DIAMETER (mm) : 15
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 4.24
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 3.66
  • VOLUME (mm3 ) : 117.15
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-481530
  • Procedure : -
  • Description 1/BX : AZUR 18D System 15 mm x 30 cm
  • LOOP DIAMETER (mm) : 15
  • LENGTH (cm) : 30
  • NUMBER OF LOOPS : 6.37
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 5.5
  • VOLUME (mm3 ) : 175.73
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-482020
  • Procedure : -
  • Description 1/BX : AZUR 18D System 20 mm x 20 cm
  • LOOP DIAMETER (mm) : 20
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 3.18
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 2.75
  • VOLUME (mm3 ) : 117.15
device-thumbnail
AZUR HydroCoil Detachable .018"
  • Model : 45-482030
  • Procedure : -
  • Description 1/BX : AZUR 18D System 20 mm x 30 cm
  • LOOP DIAMETER (mm) : 20
  • LENGTH (cm) : 30
  • NUMBER OF LOOPS : 4.77
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 4.12
  • VOLUME (mm3 ) : 175.73
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-450405
  • Procedure : -
  • Description 1/BX : AZUR 35D System 4 mm x 5 cm
  • LOOP DIAMETER (mm) : 4
  • LENGTH (cm) : 5
  • NUMBER OF LOOPS : 3.98
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 4.85
  • VOLUME (mm3 ) : 58.37
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-450410
  • Procedure : -
  • Description 1/BX : AZUR 35D System 4 mm x 10 cm
  • LOOP DIAMETER (mm) : 4
  • LENGTH (cm) : 10
  • NUMBER OF LOOPS : 7.96
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 9.71
  • VOLUME (mm3 ) : 116.75
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-450415
  • Procedure : -
  • Description 1/BX : AZUR 35D System 4 mm x 15 cm
  • LOOP DIAMETER (mm) : 4
  • LENGTH (cm) : 15
  • NUMBER OF LOOPS : 11.94
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 14.56
  • VOLUME (mm3 ) : 175.12
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-450610
  • Procedure : -
  • Description 1/BX : AZUR 35D System 6 mm x 10 cm
  • LOOP DIAMETER (mm) : 6
  • LENGTH (cm) : 10
  • NUMBER OF LOOPS : 5.31
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 6.47
  • VOLUME (mm3 ) : 116.75
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-450615
  • Procedure : -
  • Description 1/BX : AZUR 35D System 6 mm x 15 cm
  • LOOP DIAMETER (mm) : 6
  • LENGTH (cm) : 15
  • NUMBER OF LOOPS : 7.96
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 9.71
  • VOLUME (mm3 ) : 175.12
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-450620
  • Procedure : -
  • Description 1/BX : AZUR 35D System 6 mm x 20 cm
  • LOOP DIAMETER (mm) : 6
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 10.62
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 12.94
  • VOLUME (mm3 ) : 233.49
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-450815
  • Procedure : -
  • Description 1/BX : AZUR 35D System 8 mm x 15 cm
  • LOOP DIAMETER (mm) : 8
  • LENGTH (cm) : 15
  • NUMBER OF LOOPS : 5.97
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 7.28
  • VOLUME (mm3 ) : 175.12
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-450820
  • Procedure : -
  • Description 1/BX : AZUR 35D System 8 mm x 20 cm
  • LOOP DIAMETER (mm) : 8
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 7.96
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 9.71
  • VOLUME (mm3 ) : 233.49
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-451015
  • Procedure : -
  • Description 1/BX : AZUR 35D System 10 mm x 15 cm
  • LOOP DIAMETER (mm) : 10
  • LENGTH (cm) : 15
  • NUMBER OF LOOPS : 4.78
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 5.82
  • VOLUME (mm3 ) : 175.12
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-451020
  • Procedure : -
  • Description 1/BX : AZUR 35D System 10 mm x 20 cm
  • LOOP DIAMETER (mm) : 10
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 6.37
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 7.77
  • VOLUME (mm3 ) : 233.49
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-451215
  • Procedure : -
  • Description 1/BX : AZUR 35D System 12 mm x 15 cm
  • LOOP DIAMETER (mm) : 12
  • LENGTH (cm) : 15
  • NUMBER OF LOOPS : 3.98
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 4.85
  • VOLUME (mm3 ) : 175.12
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-451220
  • Procedure : -
  • Description 1/BX : AZUR 35D System 12 mm x 20 cm
  • LOOP DIAMETER (mm) : 12
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 5.31
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 6.47
  • VOLUME (mm3 ) : 233.49
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-451230
  • Procedure : -
  • Description 1/BX : AZUR 35D System 12 mm x 30 cm
  • LOOP DIAMETER (mm) : 12
  • LENGTH (cm) : 30
  • NUMBER OF LOOPS : 7.96
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 9.71
  • VOLUME (mm3 ) : 350.24
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-451520
  • Procedure : -
  • Description 1/BX : AZUR 35D System 15 mm x 20 cm
  • LOOP DIAMETER (mm) : 15
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 4.25
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 5.18
  • VOLUME (mm3 ) : 233.49
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-451530
  • Procedure : -
  • Description 1/BX : AZUR 35D System 15 mm x 30 cm
  • LOOP DIAMETER (mm) : 15
  • LENGTH (cm) : 30
  • NUMBER OF LOOPS : 6.37
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 7.77
  • VOLUME (mm3 ) : 350.24
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-452020
  • Procedure : -
  • Description 1/BX : AZUR 35D System 20 mm x 20 cm
  • LOOP DIAMETER (mm) : 20
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 3.18
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 3.88
  • VOLUME (mm3 ) : 233.49
device-thumbnail
AZUR HydroCoil Detachable .035"
  • Model : 45-452030
  • Procedure : -
  • Description 1/BX : AZUR 35D System 20 mm x 30 cm
  • LOOP DIAMETER (mm) : 20
  • LENGTH (cm) : 30
  • NUMBER OF LOOPS : 4.77
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 5.82
  • VOLUME (mm3 ) : 350.24
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280202
  • Procedure : -
  • Description 1/BX : AZUR 18P System 2 mm x 2 cm
  • LOOP DIAMETER (mm) : 2
  • LENGTH (cm) : 2
  • NUMBER OF LOOPS : 3.18
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 2.75
  • VOLUME (mm3 ) : 11.72
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280302
  • Procedure : -
  • Description 1/BX : AZUR 18P System 3 mm x 2 cm
  • LOOP DIAMETER (mm) : 3
  • LENGTH (cm) : 2
  • NUMBER OF LOOPS : 2.12
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 1.83
  • VOLUME (mm3 ) : 11.72
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280304
  • Procedure : -
  • Description 1/BX : AZUR 18P System 3 mm x 4 cm
  • LOOP DIAMETER (mm) : 3
  • LENGTH (cm) : 4
  • NUMBER OF LOOPS : 4.24
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 3.66
  • VOLUME (mm3 ) : 23.43
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280402
  • Procedure : -
  • Description 1/BX : AZUR 18P System 4 mm x 2 cm
  • LOOP DIAMETER (mm) : 4
  • LENGTH (cm) : 2
  • NUMBER OF LOOPS : 1.59
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 1.37
  • VOLUME (mm3 ) : 11.72
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280404
  • Procedure : -
  • Description 1/BX : AZUR 18P System 4 mm x 4 cm
  • LOOP DIAMETER (mm) : 4
  • LENGTH (cm) : 4
  • NUMBER OF LOOPS : 3.18
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 2.75
  • VOLUME (mm3 ) : 23.43
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45 -280406
  • Procedure : -
  • Description 1/BX : AZUR 18P System 4 mm x 6 cm
  • LOOP DIAMETER (mm) : 4
  • LENGTH (cm) : 6
  • NUMBER OF LOOPS : 4.77
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 4.12
  • VOLUME (mm3 ) : 35.15
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280504
  • Procedure : -
  • Description 1/BX : AZUR 18P System 5 mm x 4 cm
  • LOOP DIAMETER (mm) : 5
  • LENGTH (cm) : 4
  • NUMBER OF LOOPS : 2.55
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 2.2
  • VOLUME (mm3 ) : 23.43
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280506
  • Procedure : -
  • Description 1/BX : AZUR 18P System 5 mm x 6 cm
  • LOOP DIAMETER (mm) : 5
  • LENGTH (cm) : 6
  • NUMBER OF LOOPS : 3.82
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 3.3
  • VOLUME (mm3 ) : 35.15
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280510
  • Procedure : -
  • Description 1/BX : AZUR 18P System 5 mm x 10 cm
  • LOOP DIAMETER (mm) : 5
  • LENGTH (cm) : 10
  • NUMBER OF LOOPS : 6.37
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 5.5
  • VOLUME (mm3 ) : 58.58
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280514
  • Procedure : -
  • Description 1/BX : AZUR 18P System 5 mm x 14 cm
  • LOOP DIAMETER (mm) : 5
  • LENGTH (cm) : 14
  • NUMBER OF LOOPS : 8.91
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 7.7
  • VOLUME (mm3 ) : 82.01
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280606
  • Procedure : -
  • Description 1/BX : AZUR 18P System 6 mm x 6 cm
  • LOOP DIAMETER (mm) : 6
  • LENGTH (cm) : 6
  • NUMBER OF LOOPS : 3.18
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 2.75
  • VOLUME (mm3 ) : 35.15
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280610
  • Procedure : -
  • Description 1/BX : AZUR 18P System 6 mm x 10 cm
  • LOOP DIAMETER (mm) : 6
  • LENGTH (cm) : 10
  • NUMBER OF LOOPS : 5.31
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 4.59
  • VOLUME (mm3 ) : 58.58
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280614
  • Procedure : -
  • Description 1/BX : AZUR 18P System 6 mm x 14 cm
  • LOOP DIAMETER (mm) : 6
  • LENGTH (cm) : 14
  • NUMBER OF LOOPS : 7.43
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 6.42
  • VOLUME (mm3 ) : 82.01
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280620
  • Procedure : -
  • Description 1/BX : AZUR 18P System 6 mm x 20 cm
  • LOOP DIAMETER (mm) : 6
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 10.61
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 9.16
  • VOLUME (mm3 ) : 117.15
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280810
  • Procedure : -
  • Description 1/BX : AZUR 18P System 8 mm x 10 cm
  • LOOP DIAMETER (mm) : 8
  • LENGTH (cm) : 10
  • NUMBER OF LOOPS : 3.98
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 3.44
  • VOLUME (mm3 ) : 58.58
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280814
  • Procedure : -
  • Description 1/BX : AZUR 18P System 8 mm x 14cm
  • LOOP DIAMETER (mm) : 8
  • LENGTH (cm) : 14
  • NUMBER OF LOOPS : 5.57
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 4.81
  • VOLUME (mm3 ) : 82.01
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-280820
  • Procedure : -
  • Description 1/BX : AZUR 18P System 8 mm x 20 cm
  • LOOP DIAMETER (mm) : 8
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 7.96
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 6.87
  • VOLUME (mm3 ) : 117.15
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-281014
  • Procedure : -
  • Description 1/BX : AZUR 18P System 10 mm x 14 cm
  • LOOP DIAMETER (mm) : 10
  • LENGTH (cm) : 14
  • NUMBER OF LOOPS : 4.46
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 3.85
  • VOLUME (mm3 ) : 82.01
device-thumbnail
AZUR HydroCoil Pushable .018"
  • Model : 45-281020
  • Procedure : -
  • Description 1/BX : AZUR 18P System 10 mm x 20 cm
  • LOOP DIAMETER (mm) : 10
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 6.37
  • OD (in) : 0.034
  • COIN STACK LENGTH (mm) : 5.5
  • VOLUME (mm3 ) : 117.15
device-thumbnail
AZUR HydroCoil Pushable .035"
  • Model : 45-250404
  • Procedure : -
  • Description 1/BX : AZUA 35P System 4 mm x 4 cm
  • LOOP DIAMETER (mm) : 4
  • LENGTH (cm) : 4
  • NUMBER OF LOOPS : 3.18
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 3.88
  • VOLUME (mm3 ) : 46.7
device-thumbnail
AZUR HydroCoil Pushable .035"
  • Model : 45-250406
  • Procedure : -
  • Description 1/BX : AZUA 35P System 4 mm x 6 cm
  • LOOP DIAMETER (mm) : 4
  • LENGTH (cm) : 6
  • NUMBER OF LOOPS : 4.77
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 5.82
  • VOLUME (mm3 ) : 70.05
device-thumbnail
AZUR HydroCoil Pushable .035"
  • Model : 45-250506
  • Procedure : -
  • Description 1/BX : AZUA 35P System 5 mm x 6 cm
  • LOOP DIAMETER (mm) : 5
  • LENGTH (cm) : 6
  • NUMBER OF LOOPS : 3.82
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 4.66
  • VOLUME (mm3 ) : 70.05
device-thumbnail
AZUR HydroCoil Pushable .035"
  • Model : 45-250510
  • Procedure : -
  • Description 1/BX : AZUA 35P System 5 mm x 10 cm
  • LOOP DIAMETER (mm) : 5
  • LENGTH (cm) : 10
  • NUMBER OF LOOPS : 6.37
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 7.77
  • VOLUME (mm3 ) : 116.75
device-thumbnail
AZUR HydroCoil Pushable .035"
  • Model : 45-250610
  • Procedure : -
  • Description 1/BX : AZUA 35P System 6 mm x 10 cm
  • LOOP DIAMETER (mm) : 6
  • LENGTH (cm) : 10
  • NUMBER OF LOOPS : 5.31
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 6.47
  • VOLUME (mm3 ) : 116.75
device-thumbnail
AZUR HydroCoil Pushable .035"
  • Model : 45 -250614
  • Procedure : -
  • Description 1/BX : AZUA 35P System 6 mm x 14 cm
  • LOOP DIAMETER (mm) : 6
  • LENGTH (cm) : 14
  • NUMBER OF LOOPS : 7.43
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 9.06
  • VOLUME (mm3 ) : 163.44
device-thumbnail
AZUR HydroCoil Pushable .035"
  • Model : 45-250810
  • Procedure : -
  • Description 1/BX : AZUA 35P System 8 mm x 10 cm
  • LOOP DIAMETER (mm) : 8
  • LENGTH (cm) : 10
  • NUMBER OF LOOPS : 3.98
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 4.85
  • VOLUME (mm3 ) : 116.75
device-thumbnail
AZUR HydroCoil Pushable .035"
  • Model : 45-250814
  • Procedure : -
  • Description 1/BX : AZUA 35P System 8 mm x 14 cm
  • LOOP DIAMETER (mm) : 8
  • LENGTH (cm) : 14
  • NUMBER OF LOOPS : 5.57
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 6.79
  • VOLUME (mm3 ) : 163.44
device-thumbnail
AZUR HydroCoil Pushable .035"
  • Model : 45-250820
  • Procedure : -
  • Description 1/BX : AZUA 35P System 8 mm x 20 cm
  • LOOP DIAMETER (mm) : 8
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 7.96
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 9.7
  • VOLUME (mm3 ) : 233.49
device-thumbnail
AZUR HydroCoil Pushable .035"
  • Model : 45-251014
  • Procedure : -
  • Description 1/BX : AZUA 35P System 10 mm x 14 cm
  • LOOP DIAMETER (mm) : 10
  • LENGTH (cm) : 14
  • NUMBER OF LOOPS : 4.46
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 5.44
  • VOLUME (mm3 ) : 163.44
device-thumbnail
AZUR HydroCoil Pushable .035"
  • Model : 45-251020
  • Procedure : -
  • Description 1/BX : AZUA 35P System 10 mm x 20 cm
  • LOOP DIAMETER (mm) : 10
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 6.37
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 7.76
  • VOLUME (mm3 ) : 233.49
device-thumbnail
AZUR HydroCoil Pushable .035"
  • Model : 45-251514
  • Procedure : -
  • Description 1/BX : AZUA 35P System 15 mm x 14 cm
  • LOOP DIAMETER (mm) : 15
  • LENGTH (cm) : 14
  • NUMBER OF LOOPS : 2.97
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 3.62
  • VOLUME (mm3 ) : 163.44
device-thumbnail
AZUR HydroCoil Pushable .035"
  • Model : 45-251520
  • Procedure : -
  • Description 1/BX : AZUA 35P System 15 mm x 20 cm
  • LOOP DIAMETER (mm) : 15
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 4.24
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 5.17
  • VOLUME (mm3 ) : 233.49
device-thumbnail
AZUR HydroCoil Pushable .035"
  • Model : 45-251620
  • Procedure : -
  • Description 1/BX : AZUA 35P System 16 mm x 20 cm
  • LOOP DIAMETER (mm) : 16
  • LENGTH (cm) : 20
  • NUMBER OF LOOPS : 3.98
  • OD (in) : 0.048
  • COIN STACK LENGTH (mm) : 4.85
  • VOLUME (mm3 ) : 233.49

Questions & Answers

Don't see the answer you're looking for ?
