Manufacturer > Oscor > Devices > Destino™ Twist

Destino™ Twist

Device-Type

Guiding Sheath

Targated Speciality

Cardiovascular

Manufacturer

Oscor

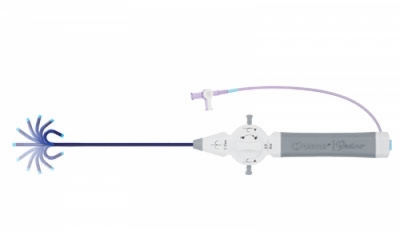

The Oscor Destino™ Twist is a steerable guiding sheath that offers a deflectable tip with an ergonomic handle. The Destino™ Twist is the ultimate tool in gaining access to the most difficult to reach sites while maintaining hemostasis with Oscor SureSeal™ technology. The Destino™ Twist is your one sheath solution intended to facilitate the intracardiac, renal, and peripheral placements of diagnostic and therapeutic devices.

Features and Benefits

  • Ergonomic handle with clear imprint of the curve deflection, french size and sheath length
  • Tip position indicator showing neutral or deflected curve
  • Accurate tip deflection response to handle collar rotation
  • Soft, atraumatic tip reduces potential for trauma and provides smooth transition to catheter
  • Radiopaque tip marker enhances fluoro visibility
  • Curve retention for accurate catheter placement
  • Hydrophobic coated sheath improves access
  • Braided Flexsteer™ shaft provides exceptional control torqueability, and kink resistance
  • Snap-locking and screw-locking dilator connector
  • Accepts maximum guidewire up to 0.038″/0.97 mm


Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model A1 Sheath Inner Diameter A2 Usable Sheath Length B Usable Dilator Length A3 Curve Bend
Destino™ Twist steerable guiding sheath
Destino™ Twist steerable guiding sheath
 		DST0654509 6.5 F 45 cm 63 cm 9mm
Destino™ Twist steerable guiding sheath
Destino™ Twist steerable guiding sheath
 		DST0654517 6.5 F 45 cm 63 cm 17 mm
Destino™ Twist steerable guiding sheath
Destino™ Twist steerable guiding sheath
 		DST0655507D2* 6.5 F 55 cm 73 cm 7 mm
Destino™ Twist steerable guiding sheath
Destino™ Twist steerable guiding sheath
 		DST0655509 6.5 F 55 cm 73 cm 9 mm
Destino™ Twist steerable guiding sheath
Destino™ Twist steerable guiding sheath
 		DST0655517 6.5 F 55 cm 73 cm 17 mm
Destino™ Twist steerable guiding sheath
Destino™ Twist steerable guiding sheath
 		DST0656509 6.5 F 65 cm 83 cm 9 mm
Destino™ Twist steerable guiding sheath
Destino™ Twist steerable guiding sheath
 		DST0659009 6.5 F 90 cm 108 cm 9 mm
Destino™ Twist steerable guiding sheath-7 F Standard
Destino™ Twist steerable guiding sheath-7 F Standard
 		DST0704509 7 F 45 cm 63 cm 9 mm
Destino™ Twist steerable guiding sheath-7 F Standard
Destino™ Twist steerable guiding sheath-7 F Standard
 		DST0704517 7 F 45 cm 63 cm 17 mm
Destino™ Twist steerable guiding sheath-7 F Standard
Destino™ Twist steerable guiding sheath-7 F Standard
 		DST0705509 7 F 55 cm 73 cm 9 mm
Destino™ Twist steerable guiding sheath-7 F Standard
Destino™ Twist steerable guiding sheath-7 F Standard
 		DST0705517 7 F 55 cm 73 cm 17 mm
Destino™ Twist steerable guiding sheath-7 F Standard
Destino™ Twist steerable guiding sheath-7 F Standard
 		DST0706509 7 F 65 cm 83 cm 9 mm
device-thumbnail
Destino™ Twist steerable guiding sheath
  • Model : DST0654509
  • Procedure : -
  • A1 Sheath Inner Diameter : 6.5 F
  • A2 Usable Sheath Length : 45 cm
  • B Usable Dilator Length : 63 cm
  • A3 Curve Bend : 9mm
device-thumbnail
Destino™ Twist steerable guiding sheath
  • Model : DST0654517
  • Procedure : -
  • A1 Sheath Inner Diameter : 6.5 F
  • A2 Usable Sheath Length : 45 cm
  • B Usable Dilator Length : 63 cm
  • A3 Curve Bend : 17 mm
device-thumbnail
Destino™ Twist steerable guiding sheath
  • Model : DST0655507D2*
  • Procedure : -
  • A1 Sheath Inner Diameter : 6.5 F
  • A2 Usable Sheath Length : 55 cm
  • B Usable Dilator Length : 73 cm
  • A3 Curve Bend : 7 mm
device-thumbnail
Destino™ Twist steerable guiding sheath
  • Model : DST0655509
  • Procedure : -
  • A1 Sheath Inner Diameter : 6.5 F
  • A2 Usable Sheath Length : 55 cm
  • B Usable Dilator Length : 73 cm
  • A3 Curve Bend : 9 mm
device-thumbnail
Destino™ Twist steerable guiding sheath
  • Model : DST0655517
  • Procedure : -
  • A1 Sheath Inner Diameter : 6.5 F
  • A2 Usable Sheath Length : 55 cm
  • B Usable Dilator Length : 73 cm
  • A3 Curve Bend : 17 mm
device-thumbnail
Destino™ Twist steerable guiding sheath
  • Model : DST0656509
  • Procedure : -
  • A1 Sheath Inner Diameter : 6.5 F
  • A2 Usable Sheath Length : 65 cm
  • B Usable Dilator Length : 83 cm
  • A3 Curve Bend : 9 mm
device-thumbnail
Destino™ Twist steerable guiding sheath
  • Model : DST0659009
  • Procedure : -
  • A1 Sheath Inner Diameter : 6.5 F
  • A2 Usable Sheath Length : 90 cm
  • B Usable Dilator Length : 108 cm
  • A3 Curve Bend : 9 mm
device-thumbnail
Destino™ Twist steerable guiding sheath-7 F Standard
  • Model : DST0704509
  • Procedure : -
  • A1 Sheath Inner Diameter : 7 F
  • A2 Usable Sheath Length : 45 cm
  • B Usable Dilator Length : 63 cm
  • A3 Curve Bend : 9 mm
device-thumbnail
Destino™ Twist steerable guiding sheath-7 F Standard
  • Model : DST0704517
  • Procedure : -
  • A1 Sheath Inner Diameter : 7 F
  • A2 Usable Sheath Length : 45 cm
  • B Usable Dilator Length : 63 cm
  • A3 Curve Bend : 17 mm
device-thumbnail
Destino™ Twist steerable guiding sheath-7 F Standard
  • Model : DST0705509
  • Procedure : -
  • A1 Sheath Inner Diameter : 7 F
  • A2 Usable Sheath Length : 55 cm
  • B Usable Dilator Length : 73 cm
  • A3 Curve Bend : 9 mm
device-thumbnail
Destino™ Twist steerable guiding sheath-7 F Standard
  • Model : DST0705517
  • Procedure : -
  • A1 Sheath Inner Diameter : 7 F
  • A2 Usable Sheath Length : 55 cm
  • B Usable Dilator Length : 73 cm
  • A3 Curve Bend : 17 mm
device-thumbnail
Destino™ Twist steerable guiding sheath-7 F Standard
  • Model : DST0706509
  • Procedure : -
  • A1 Sheath Inner Diameter : 7 F
  • A2 Usable Sheath Length : 65 cm
  • B Usable Dilator Length : 83 cm
  • A3 Curve Bend : 9 mm
