DiamondTOUCH™ Digital Inflation Device

Device-Type

Inflation

Manufacturer

Merit Medical

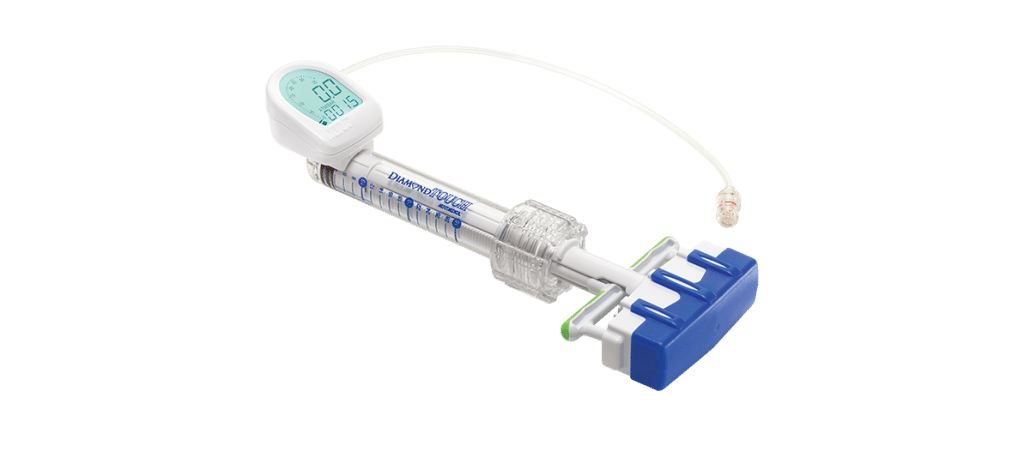

The DiamondTOUCH™ Inflation Device and Fluid Dispensing Syringe by Merit Medical is a 30mL disposable device with an integral pressure transducer, microcomputer, back-lit LCD, threaded plunger assembly with lock/release bar, a flexible high pressure extension tube, and a three-way stopcock. The DiamondTOUCH™ is designed to generate positive and negative pressure, and monitor positive pressures over a range of zero to +35ATM/BAR (zero to 514 PSI).

Features and Benefits

Digital Gauge

  • One button functionality for simplicity and ease of use
  • Large dial face with oversized time and pressure digits to enhance visibility
  • Last inflation mark recalls the highest pressure of the previous inflation
  • High resolution from multiple angles


Speed and Performance

  • Rapid Inflation – Pressures can be reached rapidly – up to 35 atm with as few 3 rotations of the handle. *
  • Quick release ergonomic handle – Releases easily, even from high-pressure inflations.
  • One-handed preparation – Preparation made easy with unique one-handed air removal. Simply press the handle against a solid surface.


Versatile

  • 30 mL syringe barrel accommodates additional fluid for larger balloons
  • 35 atm pressure capacity allows inflation of high pressure interventional balloons


Robust and Reliable

  • Strong components provide expanded capability with the security and confidence in performance that comes from using Merit products.

Use Case Examples

The DiamondTOUCH Inflation Syringe is used to inflate and deflate balloon angioplasty catheters or other interventional devices and to measure the pressure and time of inflation within the balloon during the procedure. It is also used to dispense fluids into the body and monitor the pressure of that fluid.

Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model PRESSURE RATING (ATM/BAR) VOLUME (M L) DISPLAY TYPE TUBING LENGTH (IN/CM) SYRINGE BODY MATERIAL STERILIZATION LATEX FREE
DiamondTOUCH™
DiamondTOUCH™
 		IN9135 35 atm/bar 30 mL Digital 13" (33.02 cm) Clear Polycarbonate ETO Yes
DiamondTOUCH™
DiamondTOUCH™
 		IN9152 35 atm/bar 30 mL Digital 13" (33.02 cm) Clear Polycarbonate ETO Yes
DiamondTOUCH™ Syringe
DiamondTOUCH™ Syringe
 		IN9KVCF 35 atm/bar 30 mL Digital 36' (91.44 cm) Clear Polycarbonate ETO Yes
DiamondTOUCH™ Syringe
DiamondTOUCH™ Syringe
 		IN9VCF 35 atm/bar 30 mL Digital 36' (91.44 cm) Clear Polycarbonate ETO Yes
device-thumbnail
DiamondTOUCH™
  • Model : IN9135
  • Procedure : -
  • PRESSURE RATING (ATM/BAR) : 35 atm/bar
  • VOLUME (M L) : 30 mL
  • DISPLAY TYPE : Digital
  • TUBING LENGTH (IN/CM) : 13" (33.02 cm)
  • SYRINGE BODY MATERIAL : Clear Polycarbonate
  • STERILIZATION : ETO
  • LATEX FREE : Yes
device-thumbnail
DiamondTOUCH™
  • Model : IN9152
  • Procedure : -
  • PRESSURE RATING (ATM/BAR) : 35 atm/bar
  • VOLUME (M L) : 30 mL
  • DISPLAY TYPE : Digital
  • TUBING LENGTH (IN/CM) : 13" (33.02 cm)
  • SYRINGE BODY MATERIAL : Clear Polycarbonate
  • STERILIZATION : ETO
  • LATEX FREE : Yes
device-thumbnail
DiamondTOUCH™ Syringe
  • Model : IN9KVCF
  • Procedure : -
  • PRESSURE RATING (ATM/BAR) : 35 atm/bar
  • VOLUME (M L) : 30 mL
  • DISPLAY TYPE : Digital
  • TUBING LENGTH (IN/CM) : 36' (91.44 cm)
  • SYRINGE BODY MATERIAL : Clear Polycarbonate
  • STERILIZATION : ETO
  • LATEX FREE : Yes
device-thumbnail
DiamondTOUCH™ Syringe
  • Model : IN9VCF
  • Procedure : -
  • PRESSURE RATING (ATM/BAR) : 35 atm/bar
  • VOLUME (M L) : 30 mL
  • DISPLAY TYPE : Digital
  • TUBING LENGTH (IN/CM) : 36' (91.44 cm)
  • SYRINGE BODY MATERIAL : Clear Polycarbonate
  • STERILIZATION : ETO
  • LATEX FREE : Yes
