Direxion™ HI-FLO™ Torqueable Microcatheters
With Direxion’s best-in-class torque response and high-pressure flow rates, now with improved tip shapes and hydrophilic coating, you can reposition the microcatheter tip without a guidewire and obtain clear imaging with power injections up to 1200 psi.
Features and Benefits

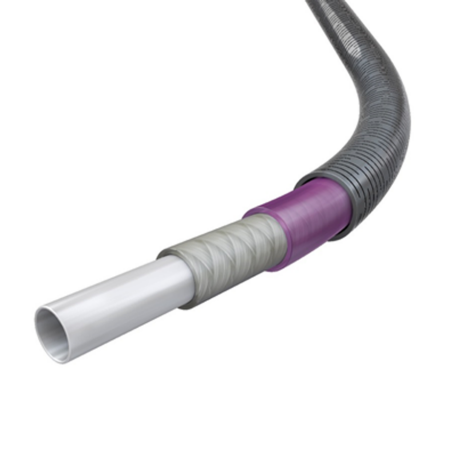

- Slotted nitinol technology similar to the Fathom™-16 Guidewire
- Stiffness profile is changed by increasing or decreasing the distance between the laser cuts
- Catheter flexibility profile is designed with a soft distal tip to aid in trackability and stiffer proximal end to assist with pushability
- Each microcatheter has 10,000+ laser cuts

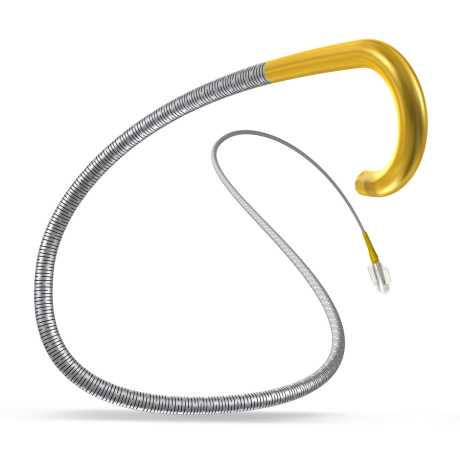

The Direxion Microcatheter is available in six tip configurations, as shown below. The distal tip is available in four pre-shaped options: Straight, Bern Shape, J Shape, and Swan Shape. These shapes are designed to facilitate access to the most challenging anatomy. Direxion Microcatheters are also available with two radiopaque markers, 2RO, which is designed to aid in the delivery of detachable embolic coils during embolization procedures.
Direxion™ Microcatheter
Direxion HI-FLO™ Microcatheter
Lumen Size (in)
0.021”
0.027”
Distal Tip Size (F)
2.4F
2.8F
Length Options
105, 130, 155 cm
Number of UPNs
14
12
Tip Shapes
Straight, Bern, J, Swan
2 RO Marker Options
Straight and Bern
N/A
Pre-loaded System Offering
Fathom™-16 Guidewire
Transend™-14 Guidewire
Fathom-16 Guidewire
Transend-18 Guidewire
Maximum Injection Pressure
1200 PSI
Maximum Flow Rate @ 1200 PSI
3.5 mL/s
6.3 mL/s
Hydrophilic Coating
Yes
Yes
Direxion™ Microcatheter
Direxion HI-FLO™ Microcatheter
Guidewire Size
≤ 0.018”
≤ 0.021”
Max Diagnostic Catheter Size
0.035”
0.038”
Compatible with 0.018” coils
Yes
No
Non-Spherical Embolic Particles
Up to ≤ 500 Micron
Up to ≤ 700 Micron
Spherical Embolic Particles
Up to ≤ 710 Micron
Up to ≤ 900 Micron
Compatible with Chemical Agents
(Glue, DMSO, Alcohol, Chemotherapy)
Yes
Yes
