Double Flexible-Tipped Wire Guide

Device-Type

Coiled Stainless Steel Guidewires

Targated Speciality

Endovascular

Manufacturer

Cook Medical

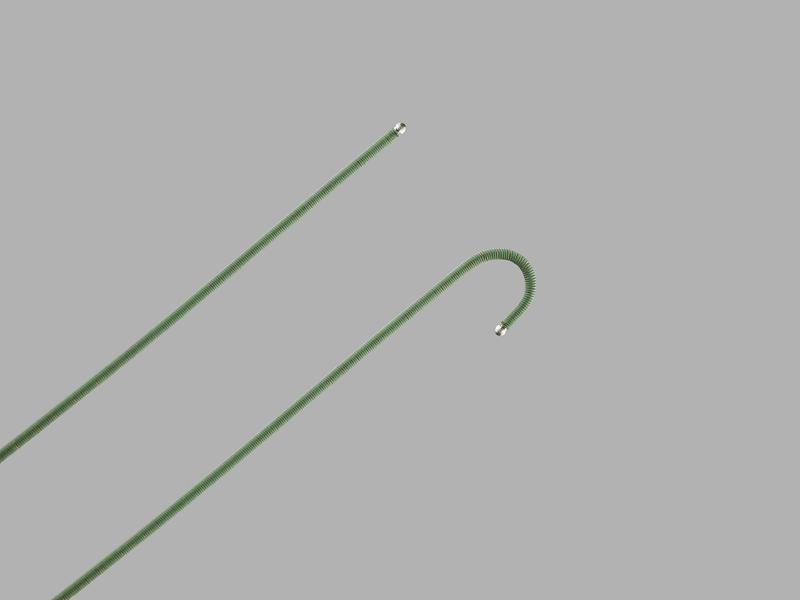

Double Flexible Tipped Wire Guides are made with a stainless steel inner mandril and stainless steel outer coil . They come in a variety of diameters length , and tip configurations . These wires are provided with two usable ends . Some devices are provided with a green PTFE coating to ease coaxial use with other devices .

Safety informations

INTENDED USE

Double Flexible Tipped Wire Guides are used to facilitate the placement of devices during diagnostic and interventional procedures.


CONTRAINDICATIONS

Not intended for use In the coronary.


WARNINGS

  • This product is a delicate instrument. Avoid forceful angulate.
  • Avoid manipulating or withdrawing the wire guide back through a metal needle or cannula.
  • A sharp edge may scrape or shear material from the wire guide.
  • Altering the configuration of the tip or curve manually may damage the wire guide.
  • Excessive tightening of a torque device may abrade the coating on the guide.


PRECAUTIONS

  • This product is intended for use by physicians trained and experienced in diagnostic and interventional techniques Standard techniques for placement of devices in angiographic procedures should be employed
  • Do not attempt to torque the wire guide.
  • Use medical imaging when you manipulate the wire guide. Do not advance or manipulate the wire guide without visual evidence of the coresponding movement of the distal tip .
  • When you use the wire guide with another device, consider the end hole size and the length of the device in order to ensure a proper it between the wire guide and the device.
  • These wire guides come with two usable end , Either end may be used depending on the clinical situation as determined by an experienced.


Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model Diameter inch Length cm Taper Length cm Floppy Tip Length cm Tip Curve Radius mm
PTFE-Coated Stainless Steel
PTFE-Coated Stainless Steel
 		G00364 .035 50 10 2.5 3
PTFE-Coated Stainless Steel
PTFE-Coated Stainless Steel
 		G00362 .035 145 10 2.5 3
device-thumbnail
PTFE-Coated Stainless Steel
  • Model : G00364
  • Procedure : -
  • Diameter inch : .035
  • Length cm : 50
  • Taper Length cm : 10
  • Floppy Tip Length cm : 2.5
  • Tip Curve Radius mm : 3
device-thumbnail
PTFE-Coated Stainless Steel
  • Model : G00362
  • Procedure : -
  • Diameter inch : .035
  • Length cm : 145
  • Taper Length cm : 10
  • Floppy Tip Length cm : 2.5
  • Tip Curve Radius mm : 3
