Manufacturer > Argon Medical Devices > Devices > EKM Inflation Device

EKM Inflation Device

Device-Type

Inflation

Manufacturer

Argon Medical Devices

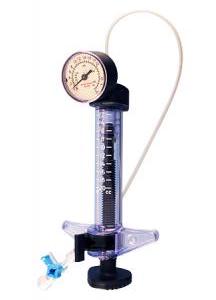

EKM Inflation Device is a one-piece, plastic, 20cc disposable inflation device with a lock lever design that controls the piston, a manometer, and a connecting tube with a male rotating adapter. The manometer measures pressures ranging from vacuum to 30atm; the gauge is marked in 1atm increments. The gauge also has an inner scale of comparable PSI measurements. The accuracy of the manometer has been determined to be within 1atm over the range.

Features and Benefits

Includes Hemostasis Valve, Guidewire Insertion Tool, and Torque Device

Use Case Examples

The inflation device is recommended for use while performing balloon angioplasty procedures to inflate the balloon, monitor the pressure within the balloon and deflate the balloon.

Safety informations

Warnings

  • Use only liquid inflation media. DO NOT inflate with air.
  • Always follow the manufacturer’s directions accompanying the balloon dilation catheter for instructions for use, maximum balloon inflation pressure, precautions, and warnings for that device.


Precaution

  • Before use, inspect the device to verify that no damage has occurred during shipping and handling.
  • Before use, ensure the connector tubing is completely free of air.

Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model Stopcock Features
30 Atm inflation device with analog display
30 Atm inflation device with analog display
 		194100 3-way Stopcock -
30 Atm inflation device with analog display
30 Atm inflation device with analog display
 		194101 3-way Stopcock Includes Hemostasis Valve, Guidewire Insertion Tool, and Torque Device
device-thumbnail
30 Atm inflation device with analog display
  • Model : 194100
  • Procedure : -
  • Stopcock : 3-way Stopcock
device-thumbnail
30 Atm inflation device with analog display
  • Model : 194101
  • Procedure : -
  • Stopcock : 3-way Stopcock
  • Features : Includes Hemostasis Valve, Guidewire Insertion Tool, and Torque Device
