Epic™

Device-Type

Self-Expanding Stents

Manufacturer

Boston Scientific

Epic™ Vascular Self-Expanding Stent System

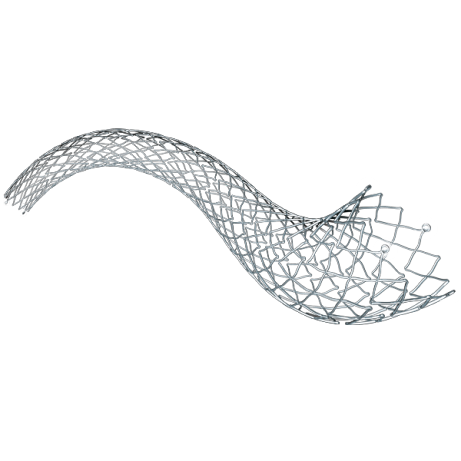

Ideal for the Iliac: The Epic Stent is a self-expanding Nitinol stent designed to sustain vessel patency, while providing enhanced visibility and accuracy during placement.


Epic Vascular Self-Expanding Stent System Schematic

Features and Benefits

Epic Stent System provides exactly the right balance


Exceptional Flexibility

  • Tandem Architecture™ Stent Design features Macro™, Medium and Micro™ Struts, as well as patented connector patterns—designed to optimize flexibility
  • Hybrid Architecture Design with open- and closed-cell geometry engineered to provide flexibility and deployment uniformity


Balanced Radial Force

  • Macro and Micro Struts are engineered to work in tandem for balanced force—even in tortuous vasculature


Excellent Deployment Accuracy

  • Ergonomic handle with two convenient deployment options: thumb wheel and pull grip
  • Radiopaque stent markers and catheter shaft marker band enhance visibility and simplify placement


Fracture Resistance

  • Meticulous surface finishing and polishing to remove imperfections and improve fracture resistance
  • Tandem Architecture Stent Design engineered to bend and flex and reduce the risk of fracture
  • High-grade Nitinol tubing

Use Case Examples

The Epic Vascular Self-Expanding Stent System is intended for the treatment of iliac artery atherosclerotic lesions and obstructions.


The Epic Vascular Self-Expanding Stent System is indicated for the improvement of luminal diameter in patients with de novo or restenotic symptomatic atherosclerotic lesions up to 120 mm in length in the common and/or external iliac arteries, with a reference vessel diameter between 5 and 11 mm.

Safety informations

WARNINGS

  • Stenting across a bifurcation or side branch could compromise future diagnostic or therapeutic procedures.
  • Persons allergic to nickel-titanium may suffer an allergic response to this implant.
  • Improper stent size selection may lead to stent migration or stent jumping.
  • As with any type of intravascular implant, infection secondary to contamination of the stent, may lead to thrombosis, pseudoaneurysm, or rupture into a neighboring organ or into the retroperitoneum.
  • The stent may cause thrombus or distal emboli to migrate from the site of the implant down the arterial lumen.
  • Do not expose to organic solvents (e.g. alcohol).
  • The long-term outcome following repeat dilatation of endothelialized stents is unknown at present.
  • In patients with poor kidney function, contrast agents may precipitate kidney failure.


PRECAUTIONS

Safety and effectiveness has not been demonstrated in patients with the following characteristics:

  • Highly calcified lesions resistant to PTA.
  • Persistent, intraluminal thrombus at the target lesion.
  • Uncorrected bleeding disorders or patients who cannot receive anticoagulation or anti-platelet aggregation therapy.
  • Perforated vessels evidenced by extravasation of contrast media.
  • Lesions that are within or adjacent to an aneurysm.
  • Vessels with excessive tortuosity.
  • The delivery system is not designed for use with power injection systems.
  • Always use an introducer or guide sheath for the implant procedure, to protect the access site.
  • Only advance the stent delivery system over a guidewire.
  • Never dilate the stent using a balloon that is larger in diameter than the labeled diameter of the stent.
  • The stent delivery system is not intended for arterial blood monitoring.
  • In the event of thrombosis of the expanded stent, thrombolysis and/or PTA should be considered.
  • In the event of complications such as infection, pseudoaneurysms or fistula formation, surgical removal of the stent may be required.

Potential adverse events

Potential adverse events that may occur following intravascular stent implantation include, but are not limited to:

  • Abscess
  • Allergic reaction (to drug, contrast, device or other)
  • Amputation
  • Aneurysm
  • Angina/coronary ischemia
  • Arrhythmia
  • Arteriovenous fistula
  • Death
  • Drug reactions
  • Embolization (air, plaque, thrombus, device, or other)
  • Entanglement of delivery system in deployed stent
  • Fever
  • GI bleeding
  • Hemorrhage/hematoma
  • Hypotension/hypertension
  • Myocardial Infarction (MI)
  • Need for urgent intervention or surgery
  • Pseudoaneurysm
  • Renal insufficiency or failure
  • Restenosis of stented artery
  • Sepsis/infection
  • Stent fracture
  • Stent migration
  • Stent misplacement/jumping
  • Stent thrombosis with possible neurological injury
  • Stroke
  • Thrombosis/thrombus
  • Tissue ischemia/necrosis
  • Vasospasm
  • Vessel injury, examples include perforation, dissection, intimal tear, rupture
  • Vessel occlusion

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model Unconstrained Stent Diameter (mm) Unconstrained Stent Length (mm) Sheath Compatibility (F) Catheter Working Length (cm)
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-06207 6 20 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-06307 6 30 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-06407 6 40 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-06607 6 60 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-06807 6 80 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-06107 6 100 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-06127 6 120 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-07207 7 20 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-07307 7 30 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-07407 7 40 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-07607 7 60 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-07807 7 80 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-07107 7 100 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-07127 7 120 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-08207 8 20 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-08307 8 30 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-08407 8 40 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-08607 8 60 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-08807 8 80 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-08107 8 100 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-08127 8 120 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-09207 9 20 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-09307 9 30 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-09407 9 40 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-09607 9 60 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-09807 9 80 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-09107 9 100 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-10207 10 20 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-10307 10 30 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-10407 10 40 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-10607 10 60 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-10807 10 80 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-10107 10 100 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-12307 12 30 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-12407 12 40 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-12607 12 60 6 75
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-06202 6 20 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-06302 6 30 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-06402 6 40 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-06602 6 60 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-06802 6 80 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-06102 6 100 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-06122 6 120 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-07202 7 20 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-07302 7 30 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-07402 7 40 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-07602 7 60 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-07802 7 80 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-07102 7 100 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-07122 7 120 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-08202 8 20 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-08302 8 30 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-08402 8 40 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-08602 8 60 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-08802 8 80 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-08102 8 100 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-08122 8 120 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-09202 9 20 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-09302 9 30 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-09402 9 40 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-09602 9 60 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-09802 9 80 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-09102 9 100 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-10202 10 20 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-10302 10 30 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-10402 10 40 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-10602 10 60 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-10802 10 80 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-10102 10 100 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-12302 12 30 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-12402 12 40 6 120
Epic™ Self-Expanding Vascular Stent System
Epic™ Self-Expanding Vascular Stent System
 		39200-12602 12 60 6 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-06207
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 6
  • Unconstrained Stent Length (mm) : 20
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-06307
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 6
  • Unconstrained Stent Length (mm) : 30
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-06407
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 6
  • Unconstrained Stent Length (mm) : 40
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-06607
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 6
  • Unconstrained Stent Length (mm) : 60
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-06807
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 6
  • Unconstrained Stent Length (mm) : 80
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-06107
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 6
  • Unconstrained Stent Length (mm) : 100
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-06127
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 6
  • Unconstrained Stent Length (mm) : 120
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-07207
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 7
  • Unconstrained Stent Length (mm) : 20
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-07307
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 7
  • Unconstrained Stent Length (mm) : 30
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-07407
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 7
  • Unconstrained Stent Length (mm) : 40
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-07607
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 7
  • Unconstrained Stent Length (mm) : 60
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-07807
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 7
  • Unconstrained Stent Length (mm) : 80
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-07107
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 7
  • Unconstrained Stent Length (mm) : 100
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-07127
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 7
  • Unconstrained Stent Length (mm) : 120
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-08207
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 8
  • Unconstrained Stent Length (mm) : 20
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-08307
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 8
  • Unconstrained Stent Length (mm) : 30
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-08407
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 8
  • Unconstrained Stent Length (mm) : 40
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-08607
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 8
  • Unconstrained Stent Length (mm) : 60
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-08807
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 8
  • Unconstrained Stent Length (mm) : 80
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-08107
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 8
  • Unconstrained Stent Length (mm) : 100
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-08127
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 8
  • Unconstrained Stent Length (mm) : 120
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-09207
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 9
  • Unconstrained Stent Length (mm) : 20
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-09307
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 9
  • Unconstrained Stent Length (mm) : 30
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-09407
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 9
  • Unconstrained Stent Length (mm) : 40
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-09607
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 9
  • Unconstrained Stent Length (mm) : 60
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-09807
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 9
  • Unconstrained Stent Length (mm) : 80
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-09107
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 9
  • Unconstrained Stent Length (mm) : 100
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-10207
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 10
  • Unconstrained Stent Length (mm) : 20
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-10307
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 10
  • Unconstrained Stent Length (mm) : 30
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-10407
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 10
  • Unconstrained Stent Length (mm) : 40
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-10607
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 10
  • Unconstrained Stent Length (mm) : 60
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-10807
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 10
  • Unconstrained Stent Length (mm) : 80
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-10107
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 10
  • Unconstrained Stent Length (mm) : 100
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-12307
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 12
  • Unconstrained Stent Length (mm) : 30
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-12407
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 12
  • Unconstrained Stent Length (mm) : 40
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-12607
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 12
  • Unconstrained Stent Length (mm) : 60
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 75
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-06202
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 6
  • Unconstrained Stent Length (mm) : 20
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-06302
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 6
  • Unconstrained Stent Length (mm) : 30
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-06402
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 6
  • Unconstrained Stent Length (mm) : 40
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-06602
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 6
  • Unconstrained Stent Length (mm) : 60
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-06802
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 6
  • Unconstrained Stent Length (mm) : 80
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-06102
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 6
  • Unconstrained Stent Length (mm) : 100
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-06122
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 6
  • Unconstrained Stent Length (mm) : 120
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-07202
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 7
  • Unconstrained Stent Length (mm) : 20
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-07302
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 7
  • Unconstrained Stent Length (mm) : 30
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-07402
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 7
  • Unconstrained Stent Length (mm) : 40
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-07602
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 7
  • Unconstrained Stent Length (mm) : 60
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-07802
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 7
  • Unconstrained Stent Length (mm) : 80
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-07102
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 7
  • Unconstrained Stent Length (mm) : 100
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-07122
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 7
  • Unconstrained Stent Length (mm) : 120
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-08202
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 8
  • Unconstrained Stent Length (mm) : 20
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-08302
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 8
  • Unconstrained Stent Length (mm) : 30
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-08402
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 8
  • Unconstrained Stent Length (mm) : 40
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-08602
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 8
  • Unconstrained Stent Length (mm) : 60
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-08802
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 8
  • Unconstrained Stent Length (mm) : 80
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-08102
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 8
  • Unconstrained Stent Length (mm) : 100
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-08122
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 8
  • Unconstrained Stent Length (mm) : 120
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-09202
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 9
  • Unconstrained Stent Length (mm) : 20
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-09302
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 9
  • Unconstrained Stent Length (mm) : 30
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-09402
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 9
  • Unconstrained Stent Length (mm) : 40
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-09602
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 9
  • Unconstrained Stent Length (mm) : 60
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-09802
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 9
  • Unconstrained Stent Length (mm) : 80
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-09102
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 9
  • Unconstrained Stent Length (mm) : 100
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-10202
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 10
  • Unconstrained Stent Length (mm) : 20
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-10302
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 10
  • Unconstrained Stent Length (mm) : 30
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-10402
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 10
  • Unconstrained Stent Length (mm) : 40
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-10602
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 10
  • Unconstrained Stent Length (mm) : 60
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-10802
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 10
  • Unconstrained Stent Length (mm) : 80
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-10102
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 10
  • Unconstrained Stent Length (mm) : 100
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-12302
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 12
  • Unconstrained Stent Length (mm) : 30
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-12402
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 12
  • Unconstrained Stent Length (mm) : 40
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120
device-thumbnail
Epic™ Self-Expanding Vascular Stent System
  • Model : 39200-12602
  • Procedure : -
  • Unconstrained Stent Diameter (mm) : 12
  • Unconstrained Stent Length (mm) : 60
  • Sheath Compatibility (F) : 6
  • Catheter Working Length (cm) : 120

Questions & Answers

Don't see the answer you're looking for ?
