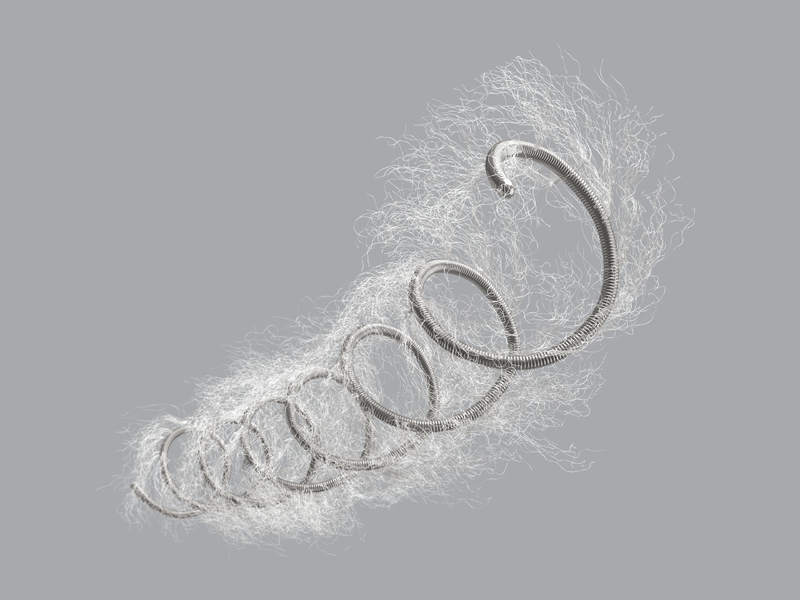

Nester® Embolization Coil

Device-Type

Embolization Coil

Targated Speciality

Endovascular

Manufacturer

Cook Medical


Intended for arterial and venous embolization in the peripheral vasculature.

Safety informations

INTENDED USE

Nester Embolization Coils and Microcoils are intended for arterial and venous embolization in the peripheral vasculature.


CONTRAINDICATIONS

None known.


WARNINGS

• Positioning of Embolization Coils and Microcoils should be done with particular care. Coils should not be left too close to the inlets of arteries and should be intermeshed with previously placed coils if possible. A minimal but sufficient arterial blood flow should remain to hold the coils against the previously placed coils until a solid clot ensures permanent fixation. The purpose of these suggestions is to minimize the possibility

of loose coils becoming dislodged and obstructing a normal and essential arterial channel.

• Nester Embolization Coils and Microcoils are not recommended for use with polyurethane catheters or catheters with sideports. If a catheter with sideports is used, the embolus may lodge in the sideport or pass

inadvertently through it. Use of a polyurethane catheter may also result in lodging of the embolus within the catheter.

• If difficulties occur when deploying the embolization coil, withdraw the wire guide, coil and angiographic catheter simultaneously as a unit.


PRECAUTIONS

• The product is intended for use by physicians trained and experienced in embolization techniques. Standard techniques for placement of vascular access sheaths, angiographic catheters and wire guides should be employed.

• Perform an angiogram prior to embolization to determine correct catheter position.

• Prior to introduction of the embolization coil, flush the angiographic catheter with saline.

• If using a .018 inch Nester Embolization Microcoil, ensure that the delivery catheter has an internal diameter (ID) of .018 to .025 inch.



Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model Recommended Catheter ID and End Hole Diameter inch Extended Embolus Length cm Coiled Embolus Diameter mm Approximate Number of Loops
MWCE-18-14-10-NESTER-01
G47325 0.018 14 10 4.5
MWCE-18-14-3-NESTER-01
G47326 0.018 14 3 14.9
MWCE-18-14-4-NESTER-01
G47327 0.018 14 4 11.1
MWCE-18-14-5-NESTER-01
G47328 0.018 14 5 8.9
MWCE-18-14-6-NESTER-01
G47329 0.018 14 6 7.4
MWCE-18-14-8-NESTER-01
G47330 0.018 14 8 5.6
MWCE-18-2-2-NESTER-01
G47344 0.018 2 2 3.2
MWCE-18-3-2-NESTER-01
G47331 0.018 3 2 4.8
MWCE-18-3-3-NESTER-01
G47332 0.018 3 3 3.2
MWCE-18-5-2-NESTER-01
G47333 0.018 5 2 8
MWCE-18-5-3-NESTER-01
G47334 0.018 5 3 5.3
MWCE-18-5-5-NESTER-01
G47335 0.018 5 5 3.2
MWCE-18-7-2-NESTER-01
G47337 0.018 7 2 11.1
MWCE-18-7-3-NESTER-01
G47338 0.018 7 3 7.4
MWCE-18-7-4-NESTER-01
G47339 0.018 7 4 5.6
MWCE-18-7-5-NESTER-01
G47340 0.018 7 5 4.5
MWCE-18-7-6-NESTER-01
G47341 0.018 7 6 3.7
MWCE-18-7-8-NESTER-01
G47342 0.018 7 8 2.8
MWCE-35-14-10-NESTER-01
G47345 0.035 14 10 4.5
MWCE-35-14-12-NESTER-01
G47346 0.035 14 12 3.7
MWCE-35-14-14-NESTER-01
G47347 0.035 14 14 3.2
MWCE-35-14-16-NESTER-01
G47348 0.035 14 16 2.8
MWCE-35-14-18-NESTER-01
G47349 0.035 14 18 2.5
MWCE-35-14-20-NESTER-01
G47350 0.035 14 20 2.2
MWCE-35-14-4-NESTER-01
G47352 0.035 14 4 11.1
MWCE-35-14-6-NESTER-01
G47354 0.035 14 6 7.4
MWCE-35-14-8-NESTER-01
G47355 0.035 14 8 5.6
MWCE-35-20-10-NESTER-01
G47356 0.035 20 10 6.4
MWCE-35-20-12-NESTER-01
G47357 0.035 20 12 5.3
MWCE-35-20-14-NESTER-01
G47358 0.035 20 14 4.5
MWCE-35-20-16-NESTER-01
G47359 0.035 20 16 4
MWCE-35-20-18-NESTER-01
G47360 0.035 20 18 3.5
MWCE-35-20-20-NESTER-01
G47361 0.035 20 20 3.2
MWCE-35-7-10-NESTER-01
G47365 0.035 7 10 2.2
MWCE-35-7-3-NESTER-01
G47371 0.035 7 3 7.4
MWCE-35-7-4-NESTER-01
G47372 0.035 7 4 5.6
MWCE-35-7-6-NESTER-01
G47374 0.035 7 6 3.7
MWCE-35-7-8-NESTER-01
G47375 0.035 7 8 2.8
  • Model : G47325
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 14
  • Coiled Embolus Diameter mm : 10
  • Approximate Number of Loops : 4.5
  • Model : G47326
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 14
  • Coiled Embolus Diameter mm : 3
  • Approximate Number of Loops : 14.9
  • Model : G47327
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 14
  • Coiled Embolus Diameter mm : 4
  • Approximate Number of Loops : 11.1
  • Model : G47328
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 14
  • Coiled Embolus Diameter mm : 5
  • Approximate Number of Loops : 8.9
  • Model : G47329
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 14
  • Coiled Embolus Diameter mm : 6
  • Approximate Number of Loops : 7.4
  • Model : G47330
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 14
  • Coiled Embolus Diameter mm : 8
  • Approximate Number of Loops : 5.6
  • Model : G47344
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 2
  • Coiled Embolus Diameter mm : 2
  • Approximate Number of Loops : 3.2
  • Model : G47331
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 3
  • Coiled Embolus Diameter mm : 2
  • Approximate Number of Loops : 4.8
  • Model : G47332
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 3
  • Coiled Embolus Diameter mm : 3
  • Approximate Number of Loops : 3.2
  • Model : G47333
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 5
  • Coiled Embolus Diameter mm : 2
  • Approximate Number of Loops : 8
  • Model : G47334
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 5
  • Coiled Embolus Diameter mm : 3
  • Approximate Number of Loops : 5.3
  • Model : G47335
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 5
  • Coiled Embolus Diameter mm : 5
  • Approximate Number of Loops : 3.2
  • Model : G47337
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 7
  • Coiled Embolus Diameter mm : 2
  • Approximate Number of Loops : 11.1
  • Model : G47338
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 7
  • Coiled Embolus Diameter mm : 3
  • Approximate Number of Loops : 7.4
  • Model : G47339
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 7
  • Coiled Embolus Diameter mm : 4
  • Approximate Number of Loops : 5.6
  • Model : G47340
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 7
  • Coiled Embolus Diameter mm : 5
  • Approximate Number of Loops : 4.5
  • Model : G47341
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 7
  • Coiled Embolus Diameter mm : 6
  • Approximate Number of Loops : 3.7
  • Model : G47342
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.018
  • Extended Embolus Length cm : 7
  • Coiled Embolus Diameter mm : 8
  • Approximate Number of Loops : 2.8
  • Model : G47345
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 14
  • Coiled Embolus Diameter mm : 10
  • Approximate Number of Loops : 4.5
  • Model : G47346
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 14
  • Coiled Embolus Diameter mm : 12
  • Approximate Number of Loops : 3.7
  • Model : G47347
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 14
  • Coiled Embolus Diameter mm : 14
  • Approximate Number of Loops : 3.2
  • Model : G47348
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 14
  • Coiled Embolus Diameter mm : 16
  • Approximate Number of Loops : 2.8
  • Model : G47349
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 14
  • Coiled Embolus Diameter mm : 18
  • Approximate Number of Loops : 2.5
  • Model : G47350
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 14
  • Coiled Embolus Diameter mm : 20
  • Approximate Number of Loops : 2.2
  • Model : G47352
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 14
  • Coiled Embolus Diameter mm : 4
  • Approximate Number of Loops : 11.1
  • Model : G47354
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 14
  • Coiled Embolus Diameter mm : 6
  • Approximate Number of Loops : 7.4
  • Model : G47355
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 14
  • Coiled Embolus Diameter mm : 8
  • Approximate Number of Loops : 5.6
  • Model : G47356
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 20
  • Coiled Embolus Diameter mm : 10
  • Approximate Number of Loops : 6.4
  • Model : G47357
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 20
  • Coiled Embolus Diameter mm : 12
  • Approximate Number of Loops : 5.3
  • Model : G47358
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 20
  • Coiled Embolus Diameter mm : 14
  • Approximate Number of Loops : 4.5
  • Model : G47359
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 20
  • Coiled Embolus Diameter mm : 16
  • Approximate Number of Loops : 4
  • Model : G47360
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 20
  • Coiled Embolus Diameter mm : 18
  • Approximate Number of Loops : 3.5
  • Model : G47361
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 20
  • Coiled Embolus Diameter mm : 20
  • Approximate Number of Loops : 3.2
  • Model : G47365
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 7
  • Coiled Embolus Diameter mm : 10
  • Approximate Number of Loops : 2.2
  • Model : G47371
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 7
  • Coiled Embolus Diameter mm : 3
  • Approximate Number of Loops : 7.4
  • Model : G47372
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 7
  • Coiled Embolus Diameter mm : 4
  • Approximate Number of Loops : 5.6
  • Model : G47374
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 7
  • Coiled Embolus Diameter mm : 6
  • Approximate Number of Loops : 3.7
  • Model : G47375
  • Procedure : -
  • Recommended Catheter ID and End Hole Diameter inch : 0.035
  • Extended Embolus Length cm : 7
  • Coiled Embolus Diameter mm : 8
  • Approximate Number of Loops : 2.8
