Performa® Vessel-Sizing Catheters

Device-Type

Diagnostic Catheters

Targated Speciality

Cardiovascular

Manufacturer

Merit Medical

Merit’s Performa® Vessel-Sizing Catheters provide clinicians with an instrument for accurate measurement of a patient’s anatomy and will take the guess work out of electing the appropriate interventional device.

Features and Benefits

Visualize the Difference

Merit’s Performa® Vessel-Sizing Catheters provide clinicians with an instrument for accurate measurement of a patient’s anatomy and will take the guess work out of electing the appropriate interventional device.

Standard Configuration

Platinum marker bands are placed at the distal portion of the catheter to determine accurate vessel sizing.

SH Configuration

Platinum marker bands are positioned closer to the pigtail curve allowing bands to be visualized closer to the vessel.

AVS Configuration

Platinum marker bands have side ports placed between bands to allow quick contrast filling of the vessel while visualizing the marker bands.

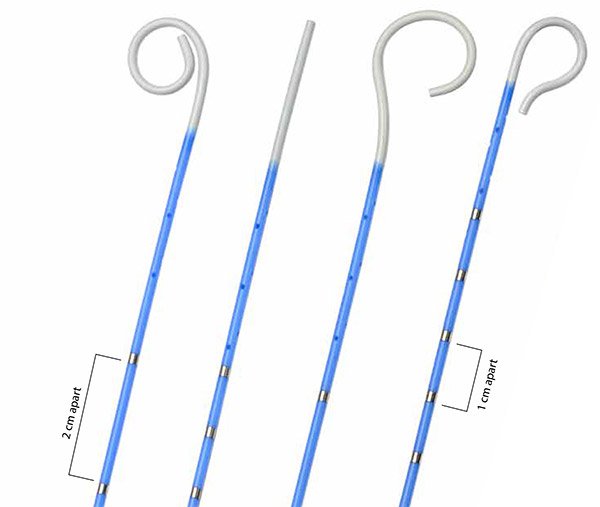

Four Tip Configurations

Available in Pigtail, straight, Modified Hook and ultra Bolus Flush styles.


Marker Bands

2 band option

Spaced 2 cm apart

11 and 20 band options

Eleven bands spaced 1 cm apart for a 10 cm segment. Also avaliable with twenty bands spaced 1 cm apart for a 19 cm segment.

Safety informations

Indications:

Angiographic catheters are designed to be used for delivering radiopaque media to selected sites in the vascular system in conjunction with routine diagnostic procedures. Angiographic catheters with marker bands may also be used for anatomical measurements.

Contraindications: None known.

Warnings:

• The Impress® angiographic catheter with hydrophilic coating should not be used in the coronary arteries.

• Angiographic catheters are single use.

• Recommended guide wire size: See the individual catheter label.

• Guide wire use has been associated with greater incidence of thrombus formation. Precautions:

• Do not use if package is opened or damaged.

• Do not use after expiration date.

• Do not autoclave.

• Carefully remove the catheter from the package by grasping the hub and slowly withdrawing it from the package.

• If resistance is felt when removing the guidewire from the catheter, remove the guide wire and catheter as a unit to prevent potential damage to the vessel wall.

• Flush all devices entering a blood vessel with sterile heparinized saline or similar isotonic solution before use.

• For catheters containing hydrophilic polymer coating on the distal surface of the catheter, the surface of the distal portion of the catheter must be completely wet with solution to remain lubricated. Proper caution must be taken to wet the catheter prior to and during use.

Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model Braided French Size(F) Length Catheter Shape Internal Diameter Side Ports Recommended Guide Wire BRAIDED FRENCH SIZE (F) LENGTH LABEL SHORT DESCRIPTION Side Ports RECOMMENDED GUIDE WIRE MARKER BANDS AND SPACING
PIG-VSC-11B
PIG-VSC-11B
 		7602-11M Non-Braided 5F 100 cm Pigtail 0.052" (1.32 mm) 10 Side Ports 0.035" (0.89 mm) - - - - - - -
PIG-VSC-11B
PIG-VSC-11B
 		7602-11M65 Non-Braided 5F 65 cm Pigtail 0.052" (1.32 mm) 10 Side Ports 0.035" (0.89 mm) - - - - - - -
PIG-VSC-20B
PIG-VSC-20B
 		7602-20M Non-Braided 5F 100 cm Pigtail 0.052" (1.32 mm) 10 Side Ports 0.035" (0.89 mm) - - - - - - -
PIG-VSC-20B
PIG-VSC-20B
 		7602-20M100SH Non-Braided 5F 100 cm Pigtail 0.052" (1.32 mm) 5 Side Ports 0.035" (0.89 mm) - - - - - - -
PIG-VSC-20B
PIG-VSC-20B
 		7602-20M65 Non-Braided 5F 65 cm Pigtail 0.052" (1.32 mm) 10 Side Ports 0.035" (0.89 mm) - - - - - - -
Vessel Sizing Catheters
Vessel Sizing Catheters
 		46535AVS20MHK - - - Modified Hook 0.041" (1.04 mm) - - Non-Braided 4F 65 cm MOD HOOK-20B 6 Side Ports 0.035" (0.89 mm) 20 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		510035AVS20MHK - - - Modified Hook 0.052" (1.32 mm) - - Non-Braided 5F 100 cm MOD HOOK-20B 6 Side Ports 0.035" (0.89 mm) 20 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		510035AVS20PIG - - - Pigtail 0.052" (1.32 mm) - - Non-Braided 5F 100 cm PIG-VSC-20B 10 Side Ports 0.035" (0.89 mm) 20 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		510035AVS2MHK - - - Modified Hook 0.052" (1.32 mm) - - Non-Braided 5F 100 cm MOD HOOK-2B 6 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		510035AVS2PIG - - - Pigtail 0.052" (1.32 mm) - - Non-Braided 5F 100 cm PIG-VSC-2B 10 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		510035AVS2STR - - - Straight 0.052" (1.32 mm) - - Non-Braided 5F 100 cm VSC-2B 10 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		56535AVS20MHK - - - Modified Hook 0.052" (1.32 mm) - - Non-Braided 5F 65 cm MOD HOOK-20B 6 Side Ports 0.035" (0.89 mm) 20 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		56535AVS20PIG - - - Pigtail 0.052" (1.32 mm) - - Non-Braided 5F 65 cm PIG-VSC-20B 10 Side Ports 0.035" (0.89 mm) 20 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		56535AVS2MHK - - - Modified Hook 0.052" (1.32 mm) - - Non-Braided 5F 65 cm MOD HOOK-2B 6 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		56535AVS2PIG - - - Pigtail 0.052" (1.32 mm) - - Non-Braided 5F 65 cm PIG-VSC-2B 10 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		56535AVS2STR - - - Straight 0.052" (1.32 mm) - - Non-Braided 5F 65 cm VSC-2B 10 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7602-20M65SH - - - Pigtail 0.052" (1.32 mm) - - Non-Braided 5F 65 cm PIG-VSC-20B 5 Side Ports 0.035" (0.89 mm) 20 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7602-2M - - - Pigtail 0.052" (1.32 mm) - - Non-Braided 5F 100 cm PIG-VSC-2B 10 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7602-2M65 - - - Pigtail 0.052" (1.32 mm) - - Non-Braided 5F 65 cm PIG-VSC-2B 10 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7603-11M100 - - - Modified Hook 0.052" (1.32 mm) - - Non-Braided 5F 100 cm MOD HOOK-11B 6 Side Ports 0.035" (0.89 mm) 11 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7603-11M65 - - - Modified Hook 0.052" (1.32 mm) - - Non-Braided 5F 65 cm MOD HOOK-11B 6 Side Ports 0.035" (0.89 mm) 11 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7603-20M100SH - - - Modified Hook 0.052" (1.32 mm) - - Non-Braided 5F 100 cm MOD HOOK-20B 6 Side Ports 0.035" (0.89 mm) 20 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7603-20M65SH - - - Modified Hook 0.052" (1.32 mm) - - Non-Braided 5F 65 cm MOD HOOK-20B 6 Side Ports 0.035" (0.89 mm) 20 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7603-2M100 - - - Modified Hook 0.052" (1.32 mm) - - Non-Braided 5F 100 cm MOD HOOK-2B 6 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7603-2M65 - - - Modified Hook 0.052" (1.32 mm) - - Non-Braided 5F 65 cm MOD HOOK-2B 6 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7673-11M100SH - - - Straight 0.052" (1.32 mm) - - Non-Braided 5F 100 cm VSC-11B 10 Side Ports 0.035" (0.89 mm) 11 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7673-11M65SH - - - Straight 0.052" (1.32 mm) - - Non-Braided 5F 65 cm VSC-11B 10 Side Ports 0.035" (0.89 mm) 11 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7673-20M100SH - - - Straight 0.052" (1.32 mm) - - Non-Braided 5F 100 cm VSC-20B 10 Side Ports 0.035" (0.89 mm) 20 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7673-20M65SH - - - Straight 0.052" (1.32 mm) - - Non-Braided 5F 65 cm VSC-20B 10 Side Ports 0.035" (0.89 mm) 20 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7673-2M - - - Straight 0.052" (1.32 mm) - - Non-Braided 5F 100 cm VSC-2B 10 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7673-2M65 - - - Straight 0.052" (1.32 mm) - - Non-Braided 5F 65 cm VSC-2B 10 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7674-2M - - - Ultra Bolus 0.052" (1.32 mm) - - Non-Braided 5F 100 cm UBF-VSC-2B 10 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7674-2M65 - - - Ultra Bolus 0.052" (1.32 mm) - - Non-Braided 5F 65 cm UBF-VSC-2B 10 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7742-20M100SH - - - Pigtail 0.041" (1.04 mm) - - Non-Braided 4F 100 cm PIG-VSC-20B 5 Side Ports 0.035" (0.89 mm) 20 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7742-20M65SH - - - Pigtail 0.041" (1.04 mm) - - Non-Braided 4F 65 cm PIG-VSC-20B 5 Side Ports 0.035" (0.89 mm) 20 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7742-2M100SH - - - Pigtail 0.041" (1.04 mm) - - Non-Braided 4F 100 cm PIG-VSC-2B 5 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7742-2M65SH - - - Pigtail 0.041" (1.04 mm) - - Non-Braided 4F 65 cm PIG-VSC-2B 5 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7743-2M100SH - - - Ultra Bolus 0.041" (1.04 mm) - - Non-Braided 4F 100 cm UBF-VSC-2B 5 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7743-2M65SH - - - Ultra Bolus 0.041" (1.04 mm) - - Non-Braided 4F 65 cm UBF-VSC-2B 5 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7744-2M100SH - - - Straight 0.041" (1.04 mm) - - Non-Braided 4F 100 cm VSC-2B 5 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7744-2M65SH - - - Straight 0.041" (1.04 mm) - - Non-Braided 4F 65 cm VSC-2B 5 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7755-2M100 - - - Modified Hook 0.041" (1.04 mm) - - Non-Braided 4F 100 cm MOD HOOK-2B 6 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7755-2M65 - - - Modified Hook 0.041" (1.04 mm) - - Non-Braided 4F 65 cm MOD HOOK-2B 6 Side Ports 0.035" (0.89 mm) 2 Bands (2 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7757-2MP65 - - - Pigtail 0.041" (1.04 mm) - - Non-Braided 4F 65 cm PED-PIG-VSC-2B 5 Side Ports 0.035" (0.89 mm) 2 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7757-2MP65SH - - - Pigtail 0.041" (1.04 mm) - - Non-Braided 4F 65 cm PED-PIG-VSC-2B 5 Side Ports 0.035" (0.89 mm) 2 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7757-2MP65SHA - - - Pigtail 0.041" (1.04 mm) - - Non-Braided 4F 65 cm PED-PIG-VSC-2B 5 Side Ports 0.035" (0.89 mm) 2 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7757-2MP80 - - - Pigtail 0.041" (1.04 mm) - - Non-Braided 4F 80 cm PED-PIG-VSC-2B 5 Side Ports 0.035" (0.89 mm) 2 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7757-2MP80SH - - - Pigtail 0.041" (1.04 mm) - - Non-Braided 4F 80 cm PED-PIG-VSC-2B 5 Side Ports 0.035" (0.89 mm) 2 Bands (1 cm apart)
Vessel Sizing Catheters
Vessel Sizing Catheters
 		7757-2MP80SHTC - - - Pigtail 0.041" (1.04 mm) - - Non-Braided 4F 80 cm PED-PIG-VSC-2B 5 Side Ports 0.035" (0.89 mm) 2 Bands (5 mm apart)
device-thumbnail
PIG-VSC-11B
  • Model : 7602-11M
  • Procedure : -
  • Braided : Non-Braided
  • French Size(F) : 5F
  • Length : 100 cm
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • Recommended Guide Wire : 0.035" (0.89 mm)
device-thumbnail
PIG-VSC-11B
  • Model : 7602-11M65
  • Procedure : -
  • Braided : Non-Braided
  • French Size(F) : 5F
  • Length : 65 cm
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • Recommended Guide Wire : 0.035" (0.89 mm)
device-thumbnail
PIG-VSC-20B
  • Model : 7602-20M
  • Procedure : -
  • Braided : Non-Braided
  • French Size(F) : 5F
  • Length : 100 cm
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • Recommended Guide Wire : 0.035" (0.89 mm)
device-thumbnail
PIG-VSC-20B
  • Model : 7602-20M100SH
  • Procedure : -
  • Braided : Non-Braided
  • French Size(F) : 5F
  • Length : 100 cm
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 5 Side Ports
  • Recommended Guide Wire : 0.035" (0.89 mm)
device-thumbnail
PIG-VSC-20B
  • Model : 7602-20M65
  • Procedure : -
  • Braided : Non-Braided
  • French Size(F) : 5F
  • Length : 65 cm
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • Recommended Guide Wire : 0.035" (0.89 mm)
device-thumbnail
Vessel Sizing Catheters
  • Model : 46535AVS20MHK
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : MOD HOOK-20B
  • Catheter Shape : Modified Hook
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 6 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 20 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 510035AVS20MHK
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : MOD HOOK-20B
  • Catheter Shape : Modified Hook
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 6 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 20 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 510035AVS20PIG
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : PIG-VSC-20B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 20 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 510035AVS2MHK
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : MOD HOOK-2B
  • Catheter Shape : Modified Hook
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 6 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 510035AVS2PIG
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : PIG-VSC-2B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 510035AVS2STR
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : VSC-2B
  • Catheter Shape : Straight
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 56535AVS20MHK
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : MOD HOOK-20B
  • Catheter Shape : Modified Hook
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 6 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 20 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 56535AVS20PIG
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : PIG-VSC-20B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 20 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 56535AVS2MHK
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : MOD HOOK-2B
  • Catheter Shape : Modified Hook
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 6 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 56535AVS2PIG
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : PIG-VSC-2B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 56535AVS2STR
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : VSC-2B
  • Catheter Shape : Straight
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7602-20M65SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : PIG-VSC-20B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 5 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 20 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7602-2M
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : PIG-VSC-2B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7602-2M65
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : PIG-VSC-2B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7603-11M100
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : MOD HOOK-11B
  • Catheter Shape : Modified Hook
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 6 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 11 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7603-11M65
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : MOD HOOK-11B
  • Catheter Shape : Modified Hook
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 6 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 11 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7603-20M100SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : MOD HOOK-20B
  • Catheter Shape : Modified Hook
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 6 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 20 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7603-20M65SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : MOD HOOK-20B
  • Catheter Shape : Modified Hook
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 6 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 20 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7603-2M100
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : MOD HOOK-2B
  • Catheter Shape : Modified Hook
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 6 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7603-2M65
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : MOD HOOK-2B
  • Catheter Shape : Modified Hook
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 6 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7673-11M100SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : VSC-11B
  • Catheter Shape : Straight
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 11 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7673-11M65SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : VSC-11B
  • Catheter Shape : Straight
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 11 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7673-20M100SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : VSC-20B
  • Catheter Shape : Straight
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 20 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7673-20M65SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : VSC-20B
  • Catheter Shape : Straight
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 20 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7673-2M
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : VSC-2B
  • Catheter Shape : Straight
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7673-2M65
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : VSC-2B
  • Catheter Shape : Straight
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7674-2M
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : UBF-VSC-2B
  • Catheter Shape : Ultra Bolus
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7674-2M65
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 5F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : UBF-VSC-2B
  • Catheter Shape : Ultra Bolus
  • Internal Diameter : 0.052" (1.32 mm)
  • Side Ports : 10 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7742-20M100SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : PIG-VSC-20B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 5 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 20 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7742-20M65SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : PIG-VSC-20B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 5 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 20 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7742-2M100SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : PIG-VSC-2B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 5 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7742-2M65SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : PIG-VSC-2B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 5 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7743-2M100SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : UBF-VSC-2B
  • Catheter Shape : Ultra Bolus
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 5 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7743-2M65SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : UBF-VSC-2B
  • Catheter Shape : Ultra Bolus
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 5 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7744-2M100SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : VSC-2B
  • Catheter Shape : Straight
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 5 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7744-2M65SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : VSC-2B
  • Catheter Shape : Straight
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 5 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7755-2M100
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 100 cm
  • LABEL SHORT DESCRIPTION : MOD HOOK-2B
  • Catheter Shape : Modified Hook
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 6 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7755-2M65
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : MOD HOOK-2B
  • Catheter Shape : Modified Hook
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 6 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (2 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7757-2MP65
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : PED-PIG-VSC-2B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 5 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7757-2MP65SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : PED-PIG-VSC-2B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 5 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7757-2MP65SHA
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 65 cm
  • LABEL SHORT DESCRIPTION : PED-PIG-VSC-2B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 5 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7757-2MP80
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 80 cm
  • LABEL SHORT DESCRIPTION : PED-PIG-VSC-2B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 5 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7757-2MP80SH
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 80 cm
  • LABEL SHORT DESCRIPTION : PED-PIG-VSC-2B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 5 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (1 cm apart)
device-thumbnail
Vessel Sizing Catheters
  • Model : 7757-2MP80SHTC
  • Procedure : -
  • BRAIDED : Non-Braided
  • FRENCH SIZE (F) : 4F
  • LENGTH : 80 cm
  • LABEL SHORT DESCRIPTION : PED-PIG-VSC-2B
  • Catheter Shape : Pigtail
  • Internal Diameter : 0.041" (1.04 mm)
  • Side Ports : 5 Side Ports
  • RECOMMENDED GUIDE WIRE : 0.035" (0.89 mm)
  • MARKER BANDS AND SPACING : 2 Bands (5 mm apart)

Questions & Answers

Don't see the answer you're looking for ?
