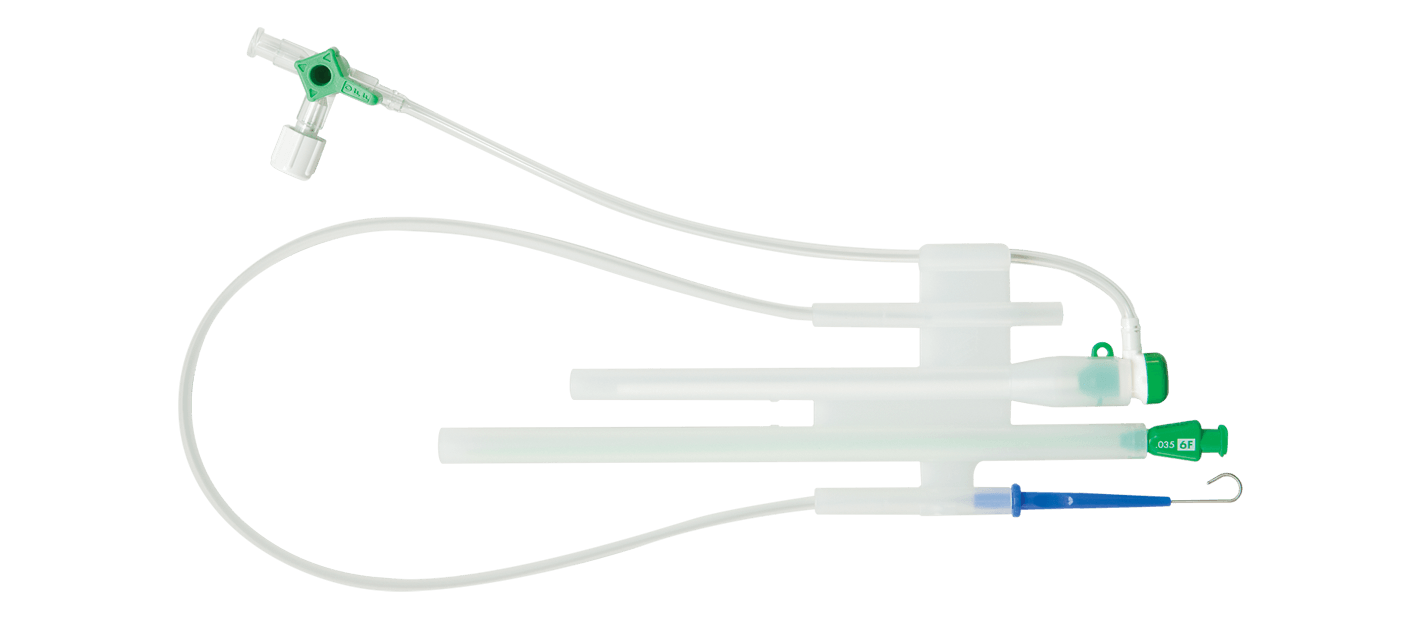

Prelude Sheath Introducers

Device-Type

Sheaths

Targated Speciality

Endovascular

Manufacturer

Merit Medical

A Great Introduction

The Prelude Sheath Introducers are part of Merit Medical’s innovative family of vascular access products. The Preludes offer excellent transitions, kink resistance, smooth insertion and more to make accessing your patient easy and convenient.

Features and Benefits

EXCELLENT TRANSITIONS – help facilitate smooth insertion into vessel.

HEMOSTASIS VALVE – Minimizes blood leakage during procedure. Facilitates insertion and withdrawal of devices.

COLOR-CODED HUBS – Match standard French sizing for easy identification.

SNAP FIT DILATOR – Eliminates slipping during insertion. Easy to grasp surface with an audible snap.

ROTATING SUTURE RING – Rotates around device. Smooth surface. Large suture opening.

THREE-WAY STOPCOCK – Easy to grip handle facilitates flush and aspiration.

HOLSTER – Keeps all components secure, especially the guide wire. Components can be flushed while in the holster. All Prelude Sheaths are packaged in the holster.

GUIDE WIRE OPTIONS – Multiple guide wire options to meet your procedural needs. All 0.035” (0.89mm) and 0.038” (0.97mm) guide wires are stainless steel, double ended (3mmJ and straight floppy).

CUSTOM KIT OPTIONS – Merit can tailor kits to meet your clinical needs.

Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model TRADEMARK EXPANDED FAMILY NAME1 SHEATH FRENCH SIZE (F) SHEATH LENGTH (CM) BOW TIE™ GUIDE WIRE DIAMETER GUIDE WIRE LENGTH WIRE DESCRIPTION TIP CONFIGURATION GUIDE WIRE MATERIAL GUIDE WIRE MATERIAL ABREVIATION NEEDLE GAUGE (G) DILATOR LENGTH CM (IN) MAX GUIDE WIRE ACCEPTED BY DILATOR HUB COLOR HCPCS CODE HCPCS CODE 0.035" (0.89 mm) HUB COLOR Green
K15-00201
K15-00201
 		K15-00201 Prelude® Prelude® Sheath Introducer 7F 7 cm (2.8") BowTie™ Guide Wire Insertion device 0.018" (0.46 mm) 40 cm (15.7") Mandrel Straight Floppy Tip Stainless Steel SS/SS 21G 13 cm (5.1") 0.018" (0.46 mm) Orange C1894, C1769 -
K15-00201P
K15-00201P
 		K15-00201P Prelude® Prelude® Sheath Introducer 7F 7 cm (2.8") BowTie™ Guide Wire Insertion device 0.018" (0.46 mm) 40 cm (15.7") Mandrel Straight Floppy Tip Stainless Steel SS/SS 21G 13 cm (5.1") 0.018" (0.46 mm) Orange C1894, C1769 -
PSI-4F-11
PSI-4F-11
 		PSI-4F-11 Prelude® Prelude® Sheath Introducer 4F 11 cm (4.3") 16 cm (6.3") 0.035" (0.89 mm) Red C1894 -
PSI-4F-11-035
PSI-4F-11-035
 		PSI-4F-11-035 Prelude® Prelude® Sheath Introducer 4F 11 cm (4.3") 0.035" (0.89 mm) 0.035" (0.89 mm) Double Ended 3 mm J-Tip/Straight Stainless Steel 16 cm (6.3")0.035" (0.89 mm) 0.035" (0.89 mm) Red C1894, C1769 -
PSI-4F-23
PSI-4F-23
 		PSI-4F-23 Prelude® Prelude® Sheath Introducer 4F 23 cm (9") 28 cm (11") 0.035" (0.89 mm) Red C1894 -
PSI-4F-23-035
PSI-4F-23-035
 		PSI-4F-23-035 Prelude® Prelude® Sheath Introducer 4F 23 cm (9") 0.035" (0.89 mm) 80 cm (31.5") Double Ended 3 mm J-Tip/Straight Stainless Steel 28 cm (11") 0.035" (0.89 mm) Red C1894, C1769 -
PSI-5F-11
PSI-5F-11
 		PSI-5F-11 Prelude® Prelude® Sheath Introducer 5F 11 cm (4.3") 16 cm (6.3") 0.038" (0.97 mm) Gray C1894 -
PSI-5F-11-035
PSI-5F-11-035
 		PSI-5F-11-035 Prelude® Prelude® Sheath Introducer 5F 11 cm (4.3") 0.035" (0.89 mm) 50 cm (19.7") Double Ended 3 mm J-Tip/Straight Stainless Steel 16 cm (6.3") 0.035" (0.89 mm) Gray C1894, C1769 -
PSI-5F-11-035-18G
PSI-5F-11-035-18G
 		PSI-5F-11-035-18G Prelude® Prelude® Sheath Introducer 5F 11 cm (4.3") 0.035" (0.89 mm) 50 cm (19.7") Double Ended 3 mm J-Tip/Straight Stainless Steel 18G 16 cm (6.3") 0.035" (0.89 mm) Gray C1894, C1769 -
PSI-5F-11-038
PSI-5F-11-038
 		PSI-5F-11-038 Prelude® Prelude® Sheath Introducer 5F 11 cm (4.3") 0.038" (0.97 mm) 50 cm (19.7") Double Ended 3 mm J-Tip/Straight Stainless Steel 16 cm (6.3") 0.038" (0.97 mm) Gray C1894, C1769 -
PSI-5F-11-038-18G
PSI-5F-11-038-18G
 		PSI-5F-11-038-18G Prelude® Prelude® Sheath Introducer 5F 11 cm (4.3") 0.038" (0.97 mm) 50 cm (19.7") Double Ended 3 mm J-Tip/Straight Stainless Steel 18G 16 cm (6.3") 0.038" (0.97 mm) Gray C1894, C1769 -
PSI-5F-23
PSI-5F-23
 		PSI-5F-23 Prelude® Prelude® Sheath Introducer 5F 23 cm (9") 23 cm (9") 0.038" (0.97 mm) Gray C1894 -
PSI-5F-23-035
PSI-5F-23-035
 		PSI-5F-23-035 Prelude® Prelude® Sheath Introducer 5F 23 cm (9") 0.035" (0.89 mm) 80 cm (31.5") Double Ended 3 mm J-Tip/Straight Stainless Steel 28 cm (11") 0.035" (0.89 mm) Gray C1894, C1769 -
PSI-5F-23-038
PSI-5F-23-038
 		PSI-5F-23-038 Prelude® Prelude® Sheath Introducer 5F 23 cm (9") 0.038" (0.97 mm) 80 cm (31.5") Double Ended 3 mm J-Tip/Straight Stainless Steel 28 cm (11") 0.038" (0.97 mm) Gray C1894, C1769 -
PSI-6F-11
PSI-6F-11
 		PSI-6F-11 Prelude® Prelude® Sheath Introducer 6F 11 cm (4.3") 16 cm (6.3") 0.038" (0.97 mm) Green C1894 -
PSI-6F-11-035
PSI-6F-11-035
 		PSI-6F-11-035 Prelude® Prelude® Sheath Introducer 6F 11 cm (4.3") 0.035" (0.89 mm) 50 cm (19.7") Double Ended 3 mm J-Tip/Straight Stainless Steel 16 cm (6.3") 0.035" (0.89 mm) Green C1894, C1769 -
PSI-6F-11-035-18G
PSI-6F-11-035-18G
 		PSI-6F-11-035-18G Prelude® Prelude® Sheath Introducer 6F 11 cm (4.3") 0.035" (0.89 mm) 50 cm (19.7") Double Ended 3 mm J-Tip/Straight Stainless Steel 18G 16 cm (6.3") 0.035" (0.89 mm) Green C1894, C1769 -
PSI-6F-11-038
PSI-6F-11-038
 		PSI-6F-11-038 Prelude® Prelude® Sheath Introducer 6F 11 cm (4.3") 0.038" (0.97 mm) 50 cm (19.7") Double Ended 3 mm J-Tip/Straight Stainless Steel 16 cm (6.3") 0.038" (0.97 mm) Green C1894, C1769 -
PSI-6F-23
PSI-6F-23
 		PSI-6F-23 Prelude® Prelude® Sheath Introducer 6F 23 cm (9") 28 cm (11") 0.038" (0.97 mm) Green C1894 -
PSI-6F-23-035
PSI-6F-23-035
 		PSI-6F-23-035 Prelude® Prelude® Sheath Introducer 6F 23 cm (9") 0.035" (0.89 mm) 80 cm (31.5") Double Ended 3 mm J-Tip/Straight Stainless Steel 28 cm (11") 0.035" (0.89 mm) Green C1894, C1769 -
PSI-6F-23-038
PSI-6F-23-038
 		PSI-6F-23-038 Prelude® Prelude® Sheath Introducer 6F 23 cm (9") 0.038" (0.97 mm) 80 cm (31.5") Double Ended 3 mm J-Tip/Straight Stainless Steel 28 cm (11") 0.038" (0.97 mm) Green C1894, C1769 -
PSI-7F-11
PSI-7F-11
 		PSI-7F-11 Prelude® Prelude® Sheath Introducer 7F 11 cm (4.3") 16 cm (6.3") 0.035" (0.89 mm) Orange C1894 -
PSI-7F-11-035
PSI-7F-11-035
 		PSI-7F-11-035 Prelude® Prelude® Sheath Introducer 7F 11 cm (4.3") 0.035" (0.89 mm) 50 cm (19.7") Double Ended 3 mm J-Tip/Straight Stainless Steel 16 cm (6.3") 0.035" (0.89 mm) Orange - C1894, C1769
PSI-7F-11-035-18G
PSI-7F-11-035-18G
 		PSI-7F-11-035-18G Prelude® Prelude® Sheath Introducer 7F 11 cm (4.3") 0.035" (0.89 mm) 50 cm (19.7") Double Ended 3 mm J-Tip/Straight Stainless Steel 18G 16 cm (6.3") 0.035" (0.89 mm) Orange - C1894, C1769
PSI-7F-11-038
PSI-7F-11-038
 		PSI-7F-11-038 Prelude® Prelude® Sheath Introducer 7F 11 cm (4.3") 0.038" (0.97 mm) 50 cm (19.7") Double Ended 3 mm J-Tip/Straight Stainless Steel 16 cm (6.3") 0.038" (0.97 mm) Orange - C1894, C1769
PSI-7F-23
PSI-7F-23
 		PSI-7F-23 Prelude® Prelude® Sheath Introducer 7F 23 cm (9") 28 cm (11") 0.038" (0.97 mm) Orange - C1894
PSI-7F-23-035
PSI-7F-23-035
 		PSI-7F-23-035 Prelude® Prelude® Sheath Introducer 7F 23 cm (9") 0.035" (0.89 mm) 80 cm (31.5") Double Ended 3 mm J-Tip/Straight Stainless Steel 28 cm (11") 0.035" (0.89 mm) Orange - C1894, C1769
PSI-7F-23-038
PSI-7F-23-038
 		PSI-7F-23-038 Prelude® Prelude® Sheath Introducer 7F 23 cm (9") 0.038" (0.97 mm) 80 cm (31.5") Double Ended 3 mm J-Tip/Straight Stainless Steel 28 cm (11") 0.038" (0.97 mm) Orange - C1894, C1769
PSI-8F-11
PSI-8F-11
 		PSI-8F-11 Prelude® Prelude® Sheath Introducer 8F 11 cm (4.3") 16 cm (6.3") 0.038" (0.97 mm) Blue - C1894
PSI-8F-11-035
PSI-8F-11-035
 		PSI-8F-11-035 Prelude® Prelude® Sheath Introducer 8F 11 cm (4.3") 0.035" (0.89 mm) 50 cm (19.7") Double Ended 3 mm J-Tip/Straight Stainless Steel 16 cm (6.3") 0.035" (0.89 mm) Blue - C1894, C1769
PSI-8F-11-038
PSI-8F-11-038
 		PSI-8F-11-038 Prelude® Prelude® Sheath Introducer 8F 11 cm (4.3") 0.038" (0.97 mm) 50 cm (19.7") Double Ended 3 mm J-Tip/Straight Stainless Steel 16 cm (6.3") 0.038" (0.97 mm) Blue - C1894, C1769
PSI-8F-11-038-18G
PSI-8F-11-038-18G
 		PSI-8F-11-038-18G Prelude® Prelude® Sheath Introducer 8F 11 cm (4.3") 0.038" (0.97 mm) 50 cm (19.7") Double Ended 3 mm J-Tip/Straight Stainless Steel 18G 16 cm (6.3") 0.038" (0.97 mm) Blue - C1894, C1769
PSI-8F-23
PSI-8F-23
 		PSI-8F-23 Prelude® Prelude® Sheath Introducer 8F 23 cm (9") 28 cm (11") 0.038" (0.97 mm) Blue - C1894
PSI-8F-23-035
PSI-8F-23-035
 		PSI-8F-23-035 Prelude® Prelude® Sheath Introducer 8F 23 cm (9") 0.035" (0.89 mm) 80 cm (31.5") Double Ended 3 mm J-Tip/Straight Stainless Steel 28 cm (11") 0.035" (0.89 mm) Blue - C1894, C1769
PSI-8F-23-038
PSI-8F-23-038
 		PSI-8F-23-038 Prelude® Prelude® Sheath Introducer 8F 23 cm (9") 0.038" (0.97 mm) 80 cm (31.5") Double Ended 3 mm J-Tip/Straight Stainless Steel 28 cm (11") 0.038" (0.97 mm) Blue - C1894, C1769
device-thumbnail
K15-00201
  • Model : K15-00201
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 7F
  • SHEATH LENGTH (CM) : 7 cm (2.8")
  • BOW TIE™ : BowTie™ Guide Wire Insertion device
  • GUIDE WIRE DIAMETER : 0.018" (0.46 mm)
  • GUIDE WIRE LENGTH : 40 cm (15.7")
  • WIRE DESCRIPTION : Mandrel
  • TIP CONFIGURATION : Straight Floppy Tip
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION : SS/SS
  • NEEDLE GAUGE (G) : 21G
  • DILATOR LENGTH CM (IN) : 13 cm (5.1")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.018" (0.46 mm)
  • HUB COLOR : Orange
  • HCPCS CODE : C1894, C1769
device-thumbnail
K15-00201P
  • Model : K15-00201P
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 7F
  • SHEATH LENGTH (CM) : 7 cm (2.8")
  • BOW TIE™ : BowTie™ Guide Wire Insertion device
  • GUIDE WIRE DIAMETER : 0.018" (0.46 mm)
  • GUIDE WIRE LENGTH : 40 cm (15.7")
  • WIRE DESCRIPTION : Mandrel
  • TIP CONFIGURATION : Straight Floppy Tip
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION : SS/SS
  • NEEDLE GAUGE (G) : 21G
  • DILATOR LENGTH CM (IN) : 13 cm (5.1")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.018" (0.46 mm)
  • HUB COLOR : Orange
  • HCPCS CODE : C1894, C1769
device-thumbnail
PSI-4F-11
  • Model : PSI-4F-11
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 4F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER :
  • GUIDE WIRE LENGTH :
  • WIRE DESCRIPTION :
  • TIP CONFIGURATION :
  • GUIDE WIRE MATERIAL :
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Red
  • HCPCS CODE : C1894
device-thumbnail
PSI-4F-11-035
  • Model : PSI-4F-11-035
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 4F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.035" (0.89 mm)
  • GUIDE WIRE LENGTH : 0.035" (0.89 mm)
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")0.035" (0.89 mm)
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Red
  • HCPCS CODE : C1894, C1769
device-thumbnail
PSI-4F-23
  • Model : PSI-4F-23
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 4F
  • SHEATH LENGTH (CM) : 23 cm (9")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER :
  • GUIDE WIRE LENGTH :
  • WIRE DESCRIPTION :
  • TIP CONFIGURATION :
  • GUIDE WIRE MATERIAL :
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 28 cm (11")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Red
  • HCPCS CODE : C1894
device-thumbnail
PSI-4F-23-035
  • Model : PSI-4F-23-035
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 4F
  • SHEATH LENGTH (CM) : 23 cm (9")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.035" (0.89 mm)
  • GUIDE WIRE LENGTH : 80 cm (31.5")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 28 cm (11")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Red
  • HCPCS CODE : C1894, C1769
device-thumbnail
PSI-5F-11
  • Model : PSI-5F-11
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 5F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER :
  • GUIDE WIRE LENGTH :
  • WIRE DESCRIPTION :
  • TIP CONFIGURATION :
  • GUIDE WIRE MATERIAL :
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Gray
  • HCPCS CODE : C1894
device-thumbnail
PSI-5F-11-035
  • Model : PSI-5F-11-035
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 5F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.035" (0.89 mm)
  • GUIDE WIRE LENGTH : 50 cm (19.7")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Gray
  • HCPCS CODE : C1894, C1769
device-thumbnail
PSI-5F-11-035-18G
  • Model : PSI-5F-11-035-18G
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 5F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.035" (0.89 mm)
  • GUIDE WIRE LENGTH : 50 cm (19.7")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) : 18G
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Gray
  • HCPCS CODE : C1894, C1769
device-thumbnail
PSI-5F-11-038
  • Model : PSI-5F-11-038
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 5F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.038" (0.97 mm)
  • GUIDE WIRE LENGTH : 50 cm (19.7")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Gray
  • HCPCS CODE : C1894, C1769
device-thumbnail
PSI-5F-11-038-18G
  • Model : PSI-5F-11-038-18G
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 5F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.038" (0.97 mm)
  • GUIDE WIRE LENGTH : 50 cm (19.7")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) : 18G
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Gray
  • HCPCS CODE : C1894, C1769
device-thumbnail
PSI-5F-23
  • Model : PSI-5F-23
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 5F
  • SHEATH LENGTH (CM) : 23 cm (9")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER :
  • GUIDE WIRE LENGTH :
  • WIRE DESCRIPTION :
  • TIP CONFIGURATION :
  • GUIDE WIRE MATERIAL :
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 23 cm (9")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Gray
  • HCPCS CODE : C1894
device-thumbnail
PSI-5F-23-035
  • Model : PSI-5F-23-035
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 5F
  • SHEATH LENGTH (CM) : 23 cm (9")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.035" (0.89 mm)
  • GUIDE WIRE LENGTH : 80 cm (31.5")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 28 cm (11")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Gray
  • HCPCS CODE : C1894, C1769
device-thumbnail
PSI-5F-23-038
  • Model : PSI-5F-23-038
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 5F
  • SHEATH LENGTH (CM) : 23 cm (9")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.038" (0.97 mm)
  • GUIDE WIRE LENGTH : 80 cm (31.5")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 28 cm (11")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Gray
  • HCPCS CODE : C1894, C1769
device-thumbnail
PSI-6F-11
  • Model : PSI-6F-11
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 6F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER :
  • GUIDE WIRE LENGTH :
  • WIRE DESCRIPTION :
  • TIP CONFIGURATION :
  • GUIDE WIRE MATERIAL :
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Green
  • HCPCS CODE : C1894
device-thumbnail
PSI-6F-11-035
  • Model : PSI-6F-11-035
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 6F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.035" (0.89 mm)
  • GUIDE WIRE LENGTH : 50 cm (19.7")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Green
  • HCPCS CODE : C1894, C1769
device-thumbnail
PSI-6F-11-035-18G
  • Model : PSI-6F-11-035-18G
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 6F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.035" (0.89 mm)
  • GUIDE WIRE LENGTH : 50 cm (19.7")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) : 18G
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Green
  • HCPCS CODE : C1894, C1769
device-thumbnail
PSI-6F-11-038
  • Model : PSI-6F-11-038
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 6F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.038" (0.97 mm)
  • GUIDE WIRE LENGTH : 50 cm (19.7")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Green
  • HCPCS CODE : C1894, C1769
device-thumbnail
PSI-6F-23
  • Model : PSI-6F-23
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 6F
  • SHEATH LENGTH (CM) : 23 cm (9")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER :
  • GUIDE WIRE LENGTH :
  • WIRE DESCRIPTION :
  • TIP CONFIGURATION :
  • GUIDE WIRE MATERIAL :
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 28 cm (11")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Green
  • HCPCS CODE : C1894
device-thumbnail
PSI-6F-23-035
  • Model : PSI-6F-23-035
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 6F
  • SHEATH LENGTH (CM) : 23 cm (9")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.035" (0.89 mm)
  • GUIDE WIRE LENGTH : 80 cm (31.5")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 28 cm (11")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Green
  • HCPCS CODE : C1894, C1769
device-thumbnail
PSI-6F-23-038
  • Model : PSI-6F-23-038
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 6F
  • SHEATH LENGTH (CM) : 23 cm (9")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.038" (0.97 mm)
  • GUIDE WIRE LENGTH : 80 cm (31.5")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 28 cm (11")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Green
  • HCPCS CODE : C1894, C1769
device-thumbnail
PSI-7F-11
  • Model : PSI-7F-11
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 7F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER :
  • GUIDE WIRE LENGTH :
  • WIRE DESCRIPTION :
  • TIP CONFIGURATION :
  • GUIDE WIRE MATERIAL :
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Orange
  • HCPCS CODE : C1894
device-thumbnail
PSI-7F-11-035
  • Model : PSI-7F-11-035
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 7F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.035" (0.89 mm)
  • GUIDE WIRE LENGTH : 50 cm (19.7")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Orange
  • HCPCS CODE 0.035" (0.89 mm) HUB COLOR Green : C1894, C1769
device-thumbnail
PSI-7F-11-035-18G
  • Model : PSI-7F-11-035-18G
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 7F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.035" (0.89 mm)
  • GUIDE WIRE LENGTH : 50 cm (19.7")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) : 18G
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Orange
  • HCPCS CODE 0.035" (0.89 mm) HUB COLOR Green : C1894, C1769
device-thumbnail
PSI-7F-11-038
  • Model : PSI-7F-11-038
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 7F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.038" (0.97 mm)
  • GUIDE WIRE LENGTH : 50 cm (19.7")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Orange
  • HCPCS CODE 0.035" (0.89 mm) HUB COLOR Green : C1894, C1769
device-thumbnail
PSI-7F-23
  • Model : PSI-7F-23
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 7F
  • SHEATH LENGTH (CM) : 23 cm (9")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER :
  • GUIDE WIRE LENGTH :
  • WIRE DESCRIPTION :
  • TIP CONFIGURATION :
  • GUIDE WIRE MATERIAL :
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 28 cm (11")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Orange
  • HCPCS CODE 0.035" (0.89 mm) HUB COLOR Green : C1894
device-thumbnail
PSI-7F-23-035
  • Model : PSI-7F-23-035
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 7F
  • SHEATH LENGTH (CM) : 23 cm (9")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.035" (0.89 mm)
  • GUIDE WIRE LENGTH : 80 cm (31.5")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 28 cm (11")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Orange
  • HCPCS CODE 0.035" (0.89 mm) HUB COLOR Green : C1894, C1769
device-thumbnail
PSI-7F-23-038
  • Model : PSI-7F-23-038
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 7F
  • SHEATH LENGTH (CM) : 23 cm (9")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.038" (0.97 mm)
  • GUIDE WIRE LENGTH : 80 cm (31.5")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 28 cm (11")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Orange
  • HCPCS CODE 0.035" (0.89 mm) HUB COLOR Green : C1894, C1769
device-thumbnail
PSI-8F-11
  • Model : PSI-8F-11
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 8F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER :
  • GUIDE WIRE LENGTH :
  • WIRE DESCRIPTION :
  • TIP CONFIGURATION :
  • GUIDE WIRE MATERIAL :
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Blue
  • HCPCS CODE 0.035" (0.89 mm) HUB COLOR Green : C1894
device-thumbnail
PSI-8F-11-035
  • Model : PSI-8F-11-035
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 8F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.035" (0.89 mm)
  • GUIDE WIRE LENGTH : 50 cm (19.7")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Blue
  • HCPCS CODE 0.035" (0.89 mm) HUB COLOR Green : C1894, C1769
device-thumbnail
PSI-8F-11-038
  • Model : PSI-8F-11-038
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 8F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.038" (0.97 mm)
  • GUIDE WIRE LENGTH : 50 cm (19.7")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Blue
  • HCPCS CODE 0.035" (0.89 mm) HUB COLOR Green : C1894, C1769
device-thumbnail
PSI-8F-11-038-18G
  • Model : PSI-8F-11-038-18G
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 8F
  • SHEATH LENGTH (CM) : 11 cm (4.3")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.038" (0.97 mm)
  • GUIDE WIRE LENGTH : 50 cm (19.7")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) : 18G
  • DILATOR LENGTH CM (IN) : 16 cm (6.3")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Blue
  • HCPCS CODE 0.035" (0.89 mm) HUB COLOR Green : C1894, C1769
device-thumbnail
PSI-8F-23
  • Model : PSI-8F-23
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 8F
  • SHEATH LENGTH (CM) : 23 cm (9")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER :
  • GUIDE WIRE LENGTH :
  • WIRE DESCRIPTION :
  • TIP CONFIGURATION :
  • GUIDE WIRE MATERIAL :
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 28 cm (11")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Blue
  • HCPCS CODE 0.035" (0.89 mm) HUB COLOR Green : C1894
device-thumbnail
PSI-8F-23-035
  • Model : PSI-8F-23-035
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 8F
  • SHEATH LENGTH (CM) : 23 cm (9")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.035" (0.89 mm)
  • GUIDE WIRE LENGTH : 80 cm (31.5")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 28 cm (11")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.035" (0.89 mm)
  • HUB COLOR : Blue
  • HCPCS CODE 0.035" (0.89 mm) HUB COLOR Green : C1894, C1769
device-thumbnail
PSI-8F-23-038
  • Model : PSI-8F-23-038
  • Procedure : -
  • TRADEMARK : Prelude®
  • EXPANDED FAMILY NAME1 : Prelude® Sheath Introducer
  • SHEATH FRENCH SIZE (F) : 8F
  • SHEATH LENGTH (CM) : 23 cm (9")
  • BOW TIE™ :
  • GUIDE WIRE DIAMETER : 0.038" (0.97 mm)
  • GUIDE WIRE LENGTH : 80 cm (31.5")
  • WIRE DESCRIPTION : Double Ended
  • TIP CONFIGURATION : 3 mm J-Tip/Straight
  • GUIDE WIRE MATERIAL : Stainless Steel
  • GUIDE WIRE MATERIAL ABREVIATION :
  • NEEDLE GAUGE (G) :
  • DILATOR LENGTH CM (IN) : 28 cm (11")
  • MAX GUIDE WIRE ACCEPTED BY DILATOR : 0.038" (0.97 mm)
  • HUB COLOR : Blue
  • HCPCS CODE 0.035" (0.89 mm) HUB COLOR Green : C1894, C1769

Questions & Answers

Don't see the answer you're looking for ?
