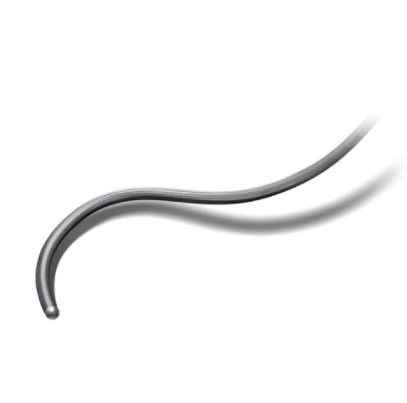

ProStream Multiple Sidehole Infusion Wires

Device-Type

Infusion System

Manufacturer

Medtronic


The ProStream™ Multiple Sidehole Infusion Wire is intended to be used for the controlled selective infusion of physician-specified pharmacologic agents or radiopaque contrast media into the general vasculature. All pharmacologic agents utilized with the ProStream Multiple Infusion Wire should be fully prepared and used according to the instructions for use of the specific pharmocologic agent. The ProStream Multiple Sidehole Infusion Wire is not intended for coronary or neurovascular use.

Features and Benefits

UNIQUE CORE WIRE DESIGN

  • Eliminates the need for a separate core wire
  • Provides torque for added control
  • Small profile to reach distal vessels

RADIOPAQUE MARKERS

  • Enhance visualization and permit precise placement proximal and distal to the infusion length

INFUSE WITH EASE

  • Use the 5 F Cragg-McNamara catheter coaxially with the ProStream infusion wire to maximize treatment area and treat two areas—simultaneously—below the knee.

Design of ProStream Sidehole Infusion Wires


Design of ProStream Sidehole Infusion Wires

  1. Polyimide tube
  2. Outer Teflon™* layer
  3. Integral core wire
  4. Platinum radiopaque markers
  5. Spiral-patterned sideholes
  6. Stainless steel coil

Safety informations

Indications for Use: The ProStream™ Multiple Sidehole Infusion Wire is intended to be used for the controlled selective infusion of physician-specified pharmacologic agents or radiopaque contrast media into the general vasculature. All pharmacologic agents utilized with the ProStream Multiple Sidehole Infusion Wire should be fully prepared and used according to the instructions for use of the specific pharmacologic agent. The ProStream Multiple Sidehole Infusion Wire is not intended for coronary or neurovascular use.

Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
  • Model : 41272-01
  • Procedure : -
  • Diameter (in) : 0.035
  • Usable Length (cm) : 145
  • Infusion Length (cm) : 6
  • Model : 41273-01
  • Procedure : -
  • Diameter (in) : 0.035
  • Usable Length (cm) : 145
  • Infusion Length (cm) : 9
  • Model : 41274-01
  • Procedure : -
  • Diameter (in) : 0.035
  • Usable Length (cm) : 145
  • Infusion Length (cm) : 12
  • Model : 41276-01
  • Procedure : -
  • Diameter (in) : 0.035
  • Usable Length (cm) : 175
  • Infusion Length (cm) : 6
  • Model : 41277-01
  • Procedure : -
  • Diameter (in) : 0.035
  • Usable Length (cm) : 175
  • Infusion Length (cm) : 9
  • Model : 41278-01
  • Procedure : -
  • Diameter (in) : 0.035
  • Usable Length (cm) : 175
  • Infusion Length (cm) : 12
