VenaTech™ Convertible

Device-Type

Vena Cava Filter

Manufacturer

B. Braun Interventional Systems

VenaTech® Vena cava filter systems

- Designed for enhanced clot trapping

- Special delivery system combining ease of use and procedural safety


Additional details for VenaTech® Vena cava filter systems:

- Implantable from femoral, jugular or brachial approach

- Introducer sheath with hemostasis valve and side port tubing for VenaTech® LP and Retrievable (7 F implantation for VenaTech® LP and Retrievable, 13 F implantation for VenaTech® Convertible, 10 F explantation VenaTech® Retrievable)

- Vena cava diameter for VenaTech® Retrievable ≥ 14 mm and ≤ 28 mm, VenaTech® LP ≤ 35 mm and VenaTech® Convertible ≤ 32 mm

- x-ray visible

- MRI conditional up to 3 Tesla

Features and Benefits

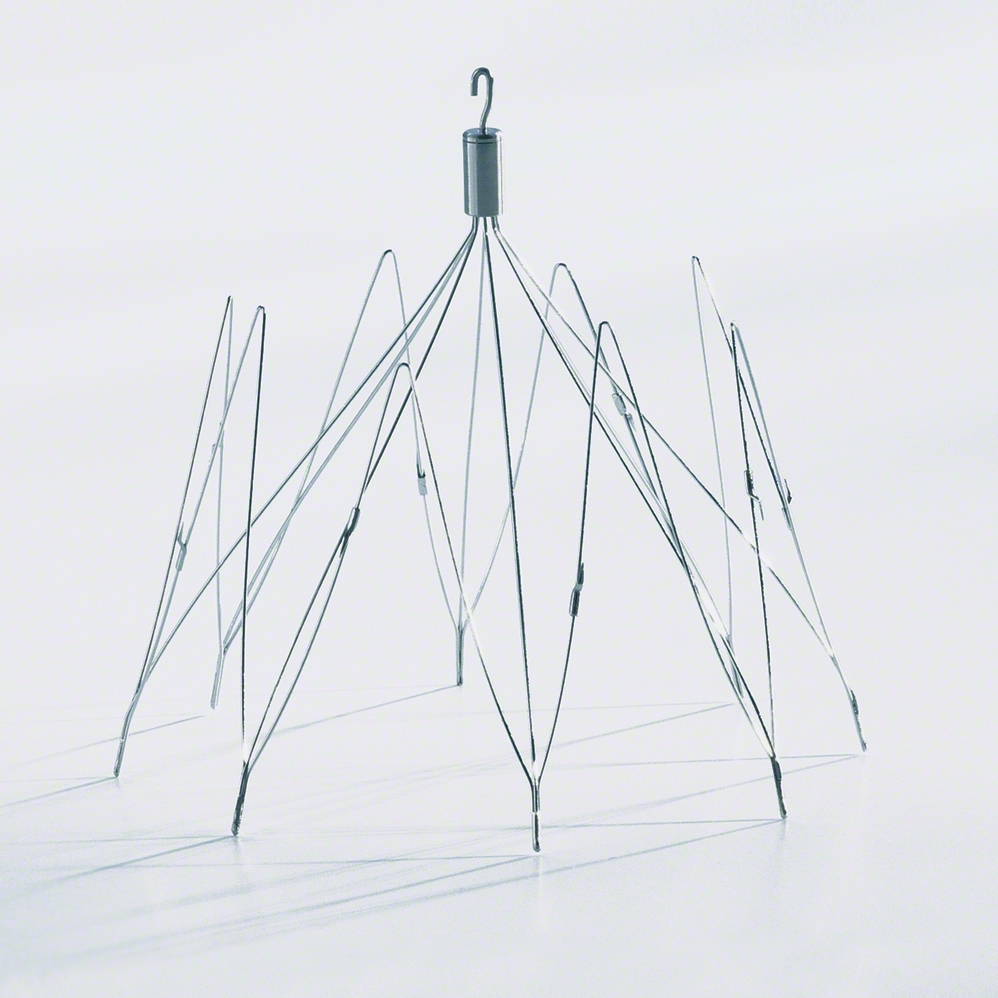

The convertible vena cava filter


  • Excellent effectiveness of caval filtration is combined with the possibility of filter
  • deactivation
  • For femoral or jugular approach
  • Wire design and high flexibility to accommodate vena cava up to 32 mm in diameter
  • Unique patented concept of deactivation: When it is clinically indicated to discontinue filtration, the filter elements are converted to an open configuration and the Vena Cava lumen is restored to its original state.

Filter Conversion

  • Advance gooseneck snare catheter to the top of the filter hook
  • Capture the hook on the cone of the filter with the loop of the gooseneck snare
  • Advance the gooseneck catheter downward until it covers the hook
  • Unlock filter head (pull snare proximally until filter head unlocks)
  • Retrieve filter head


Safety informations

Indications:

- Contraindications to anticoagulants (severe coagulopathy, thrombocytopenia, hemorrhage, recent brain surgery, recent cranial trauma)

- Failure of the anticoagulants treatment (recurrent pulmonary embolism under treatment development of clot in spite of anti-coagulation)

- Severe complication of the anticoagulants treatment (intestinal hemorrhage, gastroduodenal ulcer)
