Manufacturer > Reflow Medical > Devices > Wingman 35 Crossing Catheter

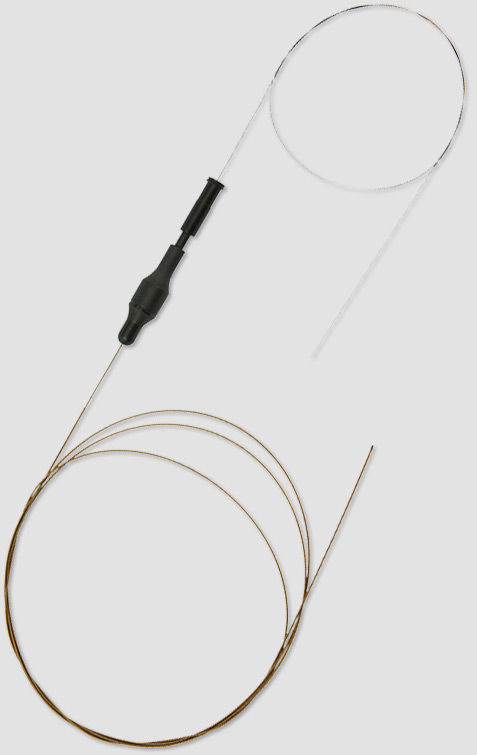

Wingman 35 Crossing Catheter

Device-Type

CTO Crossing Devices

Targated Speciality

Cardiovascular

Manufacturer

Reflow Medical


Compatible with the physician’s choice of guidewire. Works with the Reflow Spex™ and SpexLP™ catheters for added support in lesion crossing.


Features and Benefits


RAPID, ROUTINE LESION CROSSING “ON-THE-FLY”

  • Compatible with physician-preferred guidewire and procedural technique.
  • Keeps the physician in control of the device advancement and activation at all times.
  • Provides a similar safety profile to conventional support catheters.
  • Eliminates the need for expensive, complicated energy devices to cross most lesions.
  • .014”, .018” and .035” options allow treatment of a broad range of vasculature: SFA, iliac and below-the-knee.
  • Reduces total procedure time.
  • .014″C enables treatment of coronary vasculature.



BRAID-REINFORCED

HYPOTUBE MICROCATHETER

Provides added column strength and traction to resist kinks


CONTROL POINT™

ACTIVATION AND

ENGAGEMENT HANDLE

Allows you to simultaneously “push and twist” the beveled tip to anchor and penetrate the lesion


UNIQUE EXTENDABLE

BEVELED TIP

Improves tracking through extremely tight occlusions and difficult-to-cross vasculature


CONTROL COAT™

HYDROPHILIC

CATHETER COATING

Increases lubricity without compromising tactile feedback


Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model Effective Length (cm) Introducer Sheath Compatibility (F) Max Outer Diameter (in/F) Max Pressure (psi/kpa) Extendable Tip Diameter (in/mm) Tip Extension (in/mm) Hydrophilic Coating (cm)
Wingman 35 Crossing Catheter
WGM35065 (US/CE) – 65 cm 65 5 0.06/4.6 360/2482 0.050/1.27 0.020/5 40
Wingman 35 Crossing Catheter
WGM35090 (US/CE) – 90 cm 90 5 0.06/4.6 360/2482 0.050/1.27 0.020/5 40
Wingman 35 Crossing Catheter
WGM35135 (US/CE) – 135 cm 135 5 0.06/4.6 360/2482 0.050/1.27 0.020/5 40
  • Model : WGM35065 (US/CE) – 65 cm
  • Procedure : -
  • Effective Length (cm) : 65
  • Introducer Sheath Compatibility (F) : 5
  • Max Outer Diameter (in/F) : 0.06/4.6
  • Max Pressure (psi/kpa) : 360/2482
  • Extendable Tip Diameter (in/mm) : 0.050/1.27
  • Tip Extension (in/mm) : 0.020/5
  • Hydrophilic Coating (cm) : 40
  • Model : WGM35090 (US/CE) – 90 cm
  • Procedure : -
  • Effective Length (cm) : 90
  • Introducer Sheath Compatibility (F) : 5
  • Max Outer Diameter (in/F) : 0.06/4.6
  • Max Pressure (psi/kpa) : 360/2482
  • Extendable Tip Diameter (in/mm) : 0.050/1.27
  • Tip Extension (in/mm) : 0.020/5
  • Hydrophilic Coating (cm) : 40
  • Model : WGM35135 (US/CE) – 135 cm
  • Procedure : -
  • Effective Length (cm) : 135
  • Introducer Sheath Compatibility (F) : 5
  • Max Outer Diameter (in/F) : 0.06/4.6
  • Max Pressure (psi/kpa) : 360/2482
  • Extendable Tip Diameter (in/mm) : 0.050/1.27
  • Tip Extension (in/mm) : 0.020/5
  • Hydrophilic Coating (cm) : 40
