Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters

Device-Type

Specialty Balloons

Targated Speciality

Cardiovascular

Manufacturer

B. Braun Interventional Systems

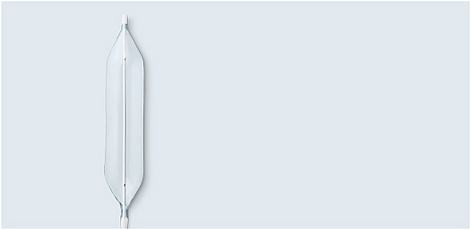

The catheter is a coaxial design catheter with a balloon mounted on its distal tip. The lumen labeled with the balloon size is for balloon inflation while the through lumen allows the catheter to track over a guidewire. A radiopaque band[s] defines the center [or shoulders, if two] of the dilatation balloon. Each balloon inflates to the stated diameter and length at a specific pressure. The balloon size is ± 10% at the Rated Burst Pressure (RBP). The RBP is different for each size. Check the package label for the RBP. It is important that the balloon not be inflated beyond the RBP.

Features and Benefits

Short balloon tapers and distal tip for optimal trackability and positioning in the valve.

Rapid inflation and deflation times to maximize reperfusion and minimize procedure time.

Low profile design provides consistent deliverability and retractability (balloon re-wrap).

Features high rated burst pressures suitable for resistant stenosis along with rapid inflation/ deflation times to minimize procedure times and maximize reperfusion.

Safety informations

CONTRAINDICATIONS:

Other than standard risks associated with insertion of a cardiovascular catheter, there are no known contraindications for valvuloplasty. The patient's medical condition could affect successful use of this catheter.  Patients with mild valvular stenosis.  A patient with valvular stenosis with major congenital heart defects that requires open heart surgery.


WARNINGS:

  • CAUTION: Do not exceed the RBP. An inflation device with pressure gauge is recommended to monitor pressure. Pressure in excess of the RBP can cause balloon rupture and potential inability to withdraw the catheter through the introducer sheath.
  • Catheter balloon inflation diameter must be carefully considered in selecting a particular size for any patient. The inflated balloon diameter should not be significantly greater than valvular diameter. The choice of the balloon size to be used for valve stenosis has been established by the VACA Registry to be approximately 1.2 to 1.4 times the valve annulus. It is important to perform an angiogram prior to valvuloplasty to measure the size of the valve in the lateral projection.
  • Balloons ≥ 4cm in length may impinge upon the tricuspid valve mechanism and may injure it. Balloons longer than 4cm are not recommended for children ≤ 10 years old.
  • Use only appropriate balloon inflation medium. Do not use air or gaseous medium to inflate the balloon.
  • This catheter is not recommended for pressure measurement or fluid injection.
  • Do not remove the guidewire from the catheter at any time during the procedure.
  • This device is intended for single use only. Do not resterilize and/or reuse it, as this can potentially result in compromised device performance and increased risk of cross-contamination.
  • The catheter should be used prior to the 'Use Before' date noted on the package label. \
  • Right ventricular outflow tract damage has occurred with balloons larger than 1.5 times the size of valve annulus.
  • The catheter is intended for valvuloplasty applications only, and is not intended for angioplasty.
  • THE CATHETER IS NOT INTENDED FOR USE WITH STENTS.


PRECAUTIONS:

  • Dilatation procedure should be conducted under fluoroscopic guidance with appropriate x-ray equipment.
  • Guidewires are delicate instruments. Care should be exercised while handling to help prevent the possibility of breakage.
  • Careful attention must be paid to the maintenance of tight catheter connections and aspiration before proceeding to avoid air introduction into the system.
  • Under no circumstances should any portion of the catheter system be advanced against resistance. The cause of the resistance should be identified with fluoroscopy and action taken to remedy the problem.
  • If resistance is felt upon removal, then the balloon, guidewire, and the sheath should be removed together as a unit, particularly if balloon rupture or leakage is known or suspected. This may be accomplished by firmly grasping the balloon catheter and sheath as a unit and withdrawing both together, using a gentle twisting motion combined with traction.
  • Before removing the catheter from the sheath it is very important that the balloon is completely deflated.
  • Proper functioning of the catheter depends upon its integrity. Care should be used when handling the catheter. Damage may result from kinking, stretching, or forceful wiping of the catheter.

Potential adverse events

Potential complications and related adverse effects associated with the valvuloplasty catheter use include, but are not limited to:

• Perforation • Arrhythmia Development • Conduction System Injury • Valvular Tearing or Trauma • Thromboembolic Events • Restenosis Development • Hematoma • Inflammation • Cardiovascular Injury • Infection

Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model Balloon Diameter (mm) Balloon Length (cm) Introducer Size (Fr) Shaft Size (Fr) Usable Length (cm) Rated Burst Pressure (ATM) Guidewire Size (in)
Z-Med Balloon Dilatation Catheters
Z-Med Balloon Dilatation Catheters
 		610468 12 2 8 6 100 7 0.035
Z-Med Balloon Dilatation Catheters
Z-Med Balloon Dilatation Catheters
 		610441 13 3 9 7 100 6 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610492 12 2 8 6 100 7 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610457 12 3 8 6 85 7 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610482 12 4 8 6 100 7 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611695 14 2 9 6 85 6 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611650 14 2 9 6 120 6 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610483 14 3 9 6 100 6 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610498 15 2 9 6 100 5 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610485 15 3 9 7 100 5 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610486 15 4 9 7 100 5 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611651 16 2 9 7 120 5 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610469 16 4 9 7 100 5 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610445 17 3 10 7 100 4 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611652 18 2 10 8 120 4 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610447 18 3 10 7 100 4 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610497 18 4 9 8 100 4 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610487 18 4 10 8 100 4 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610448 18 6 10 7 100 4 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610449 19 6 11 7 100 4 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611808 20 3 12 8 120 4 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610461 20 4 12 8 85 4 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610470 20 4 12 8 100 4 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610231 20 5 12 8 100 4 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610233 20 5 12 8 120 4 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611554 20 6 12 9 100 4 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611676 20 8 12 9 100 4 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611809 22 3 12 9 120 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610462 22 4 12 9 85 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610488 22 4 12 9 100 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611555 22 6 12 9 100 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611685 23 2 12 9 85 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611812 23 2 12 9 120 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611818 23 3 12 9 120 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611807 23 4 12 9 120 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611565 23 5 12 9 100 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611680 24 2 12 9 75 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611684 24 3 12 9 100 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611819 24 4 12 9 100 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611817 25 3 12 9 120 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610463 25 4 12 9 85 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610489 25 4 12 9 100 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610232 25 5 12 9 100 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		610496 25 5 12 9 120 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611479 25 6 12 9 100 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611678 25 8 12 9 100 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611686 26 2 12 9 85 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611821 26 2 12 9 100 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611823 26 4 12 9 75 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611820 26 4 12 9 100 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611682 26 6 12 9 100 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611803 28 2 12 9 85 3 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611813 28 2 12 9 120 2 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611787 28 3 12 9 85 2 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611810 28 3 12 9 120 2 0.035
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
 		611824 28 4 12 9 75 2 0.035
device-thumbnail
Z-Med Balloon Dilatation Catheters
  • Model : 610468
  • Procedure : -
  • Balloon Diameter (mm) : 12
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 8
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 7
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-Med Balloon Dilatation Catheters
  • Model : 610441
  • Procedure : -
  • Balloon Diameter (mm) : 13
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 6
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610492
  • Procedure : -
  • Balloon Diameter (mm) : 12
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 8
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 7
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610457
  • Procedure : -
  • Balloon Diameter (mm) : 12
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 8
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 85
  • Rated Burst Pressure (ATM) : 7
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610482
  • Procedure : -
  • Balloon Diameter (mm) : 12
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 8
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 7
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611695
  • Procedure : -
  • Balloon Diameter (mm) : 14
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 85
  • Rated Burst Pressure (ATM) : 6
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611650
  • Procedure : -
  • Balloon Diameter (mm) : 14
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 120
  • Rated Burst Pressure (ATM) : 6
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610483
  • Procedure : -
  • Balloon Diameter (mm) : 14
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 6
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610498
  • Procedure : -
  • Balloon Diameter (mm) : 15
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 5
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610485
  • Procedure : -
  • Balloon Diameter (mm) : 15
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 5
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610486
  • Procedure : -
  • Balloon Diameter (mm) : 15
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 5
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611651
  • Procedure : -
  • Balloon Diameter (mm) : 16
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 120
  • Rated Burst Pressure (ATM) : 5
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610469
  • Procedure : -
  • Balloon Diameter (mm) : 16
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 5
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610445
  • Procedure : -
  • Balloon Diameter (mm) : 17
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 10
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611652
  • Procedure : -
  • Balloon Diameter (mm) : 18
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 10
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 120
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610447
  • Procedure : -
  • Balloon Diameter (mm) : 18
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 10
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610497
  • Procedure : -
  • Balloon Diameter (mm) : 18
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610487
  • Procedure : -
  • Balloon Diameter (mm) : 18
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 10
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610448
  • Procedure : -
  • Balloon Diameter (mm) : 18
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 10
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610449
  • Procedure : -
  • Balloon Diameter (mm) : 19
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 11
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611808
  • Procedure : -
  • Balloon Diameter (mm) : 20
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 120
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610461
  • Procedure : -
  • Balloon Diameter (mm) : 20
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 85
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610470
  • Procedure : -
  • Balloon Diameter (mm) : 20
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610231
  • Procedure : -
  • Balloon Diameter (mm) : 20
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610233
  • Procedure : -
  • Balloon Diameter (mm) : 20
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 120
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611554
  • Procedure : -
  • Balloon Diameter (mm) : 20
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611676
  • Procedure : -
  • Balloon Diameter (mm) : 20
  • Balloon Length (cm) : 8
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611809
  • Procedure : -
  • Balloon Diameter (mm) : 22
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 120
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610462
  • Procedure : -
  • Balloon Diameter (mm) : 22
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 85
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610488
  • Procedure : -
  • Balloon Diameter (mm) : 22
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611555
  • Procedure : -
  • Balloon Diameter (mm) : 22
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611685
  • Procedure : -
  • Balloon Diameter (mm) : 23
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 85
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611812
  • Procedure : -
  • Balloon Diameter (mm) : 23
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 120
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611818
  • Procedure : -
  • Balloon Diameter (mm) : 23
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 120
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611807
  • Procedure : -
  • Balloon Diameter (mm) : 23
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 120
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611565
  • Procedure : -
  • Balloon Diameter (mm) : 23
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611680
  • Procedure : -
  • Balloon Diameter (mm) : 24
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 75
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611684
  • Procedure : -
  • Balloon Diameter (mm) : 24
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611819
  • Procedure : -
  • Balloon Diameter (mm) : 24
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611817
  • Procedure : -
  • Balloon Diameter (mm) : 25
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 120
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610463
  • Procedure : -
  • Balloon Diameter (mm) : 25
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 85
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610489
  • Procedure : -
  • Balloon Diameter (mm) : 25
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610232
  • Procedure : -
  • Balloon Diameter (mm) : 25
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 610496
  • Procedure : -
  • Balloon Diameter (mm) : 25
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 120
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611479
  • Procedure : -
  • Balloon Diameter (mm) : 25
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611678
  • Procedure : -
  • Balloon Diameter (mm) : 25
  • Balloon Length (cm) : 8
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611686
  • Procedure : -
  • Balloon Diameter (mm) : 26
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 85
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611821
  • Procedure : -
  • Balloon Diameter (mm) : 26
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611823
  • Procedure : -
  • Balloon Diameter (mm) : 26
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 75
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611820
  • Procedure : -
  • Balloon Diameter (mm) : 26
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611682
  • Procedure : -
  • Balloon Diameter (mm) : 26
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611803
  • Procedure : -
  • Balloon Diameter (mm) : 28
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 85
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611813
  • Procedure : -
  • Balloon Diameter (mm) : 28
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 120
  • Rated Burst Pressure (ATM) : 2
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611787
  • Procedure : -
  • Balloon Diameter (mm) : 28
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 85
  • Rated Burst Pressure (ATM) : 2
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611810
  • Procedure : -
  • Balloon Diameter (mm) : 28
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 120
  • Rated Burst Pressure (ATM) : 2
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-MED™ Balloon Aortic and Pulmonic Valvuloplasty Catheters
  • Model : 611824
  • Procedure : -
  • Balloon Diameter (mm) : 28
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 75
  • Rated Burst Pressure (ATM) : 2
  • Guidewire Size (in) : 0.035

Questions & Answers

Don't see the answer you're looking for ?
