Z-MED II™ Balloon Aortic and Pulmonic Valvuloplasty Catheters

Device-Type

Specialty Balloons

Targated Speciality

Cardiovascular

Manufacturer

B. Braun Interventional Systems

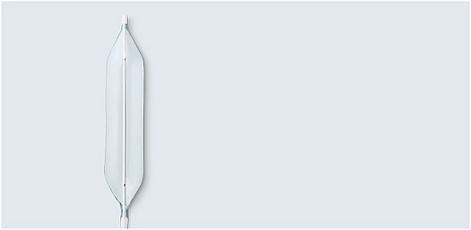

The catheter is a coaxial design catheter with a balloon mounted on its distal tip. The lumen labeled with the balloon size is for balloon inflation while the through lumen allows the catheter to track over a guidewire. A radiopaque band[s] defines the center [or shoulders, if two] of the dilatation balloon. Each balloon inflates to the stated diameter and length at a specific pressure. The balloon size is ± 10% at the Nominal Inflation Pressure. The Rated Burst Pressure (RBP) is different for each size. Check the package label for the RBP. It is important that the balloon not be inflated beyond the RBP.

Safety informations

CONTRAINDICATIONS:

Other than standard risks associated with insertion of a cardiovascular catheter, there are no known contraindications for valvuloplasty. The patient's medical condition could affect successful use of this catheter

  • Patients with mild valvular stenosis.
  • A patient with valvular stenosis with major congenital heart defects that requires open heart surgery.



WARNINGS:

  • CAUTION: Do not exceed the RBP. An inflation device with pressure gauge is recommended to monitor pressure. Pressure in excess of the RBP can cause balloon rupture and potential inability to withdraw the catheter through the introducer sheath.
  • Catheter balloon inflation diameter must be carefully considered in selecting a particular size for any patient. The inflated balloon diameter should not be significantly greater than valvular diameter. The choice of the balloon size to be used for valve stenosis has been established by the VACA Registry to be approximately 1.2 to 1.4 times the valve annulus. It is important to perform an angiogram prior to valvuloplasty to measure the size of the valve in the lateral projection.
  • Balloons ≥ 4cm in length may impinge upon the tricuspid valve mechanism and may injure it. Balloons longer than 4cm are not recommended for children ≤ 10 years old.
  • Use only appropriate balloon inflation medium. Do not use air or gaseous medium to inflate the balloon.
  • This catheter is not recommended for pressure measurement or fluid injection.
  • Do not remove the guidewire from the catheter at any time during the procedure.
  • This device is intended for single use only. Do not resterilize and/or reuse it, as this can potentially result in compromised device performance and increased risk of cross-contamination.
  • The catheter should be used prior to the 'Use Before' date noted on the package label. \
  • Right ventricular outflow tract damage has occurred with balloons larger than 1.5 times the size of valve annulus.
  • The catheter is intended for valvuloplasty applications only, and is not intended for angioplasty.
  • THE CATHETER IS NOT INTENDED FOR USE WITH STENTS.


PRECAUTIONS:

  • Dilatation procedure should be conducted under fluoroscopic guidance with appropriate x-ray equipment.
  • Guidewires are delicate instruments. Care should be exercised while handling to help prevent the possibility of breakage.
  • Careful attention must be paid to the maintenance of tight catheter connections and aspiration before proceeding to avoid air introduction into the system.
  • Under no circumstances should any portion of the catheter system be advanced against resistance. The cause of the resistance should be identified with fluoroscopy and action taken to remedy the problem.
  • If resistance is felt upon removal, then the balloon, guidewire, and the sheath should be removed together as a unit, particularly if balloon rupture or leakage is known or suspected. This may be accomplished by firmly grasping the balloon catheter and sheath as a unit and withdrawing both together, using a gentle twisting motion combined with traction.
  • Before removing the catheter from the sheath it is very important that the balloon is completely deflated.
  • Proper functioning of the catheter depends upon its integrity. Care should be used when handling the catheter. Damage may result from kinking, stretching, or forceful wiping of the catheter.


Potential adverse events

Potential complications and related adverse effects associated with the valvuloplasty catheter use include, but are not limited to:

• Perforation • Arrhythmia Development • Conduction System Injury • Valvular Tearing or Trauma • Thromboembolic Events • Restenosis Development • Hematoma • Inflammation • Cardiovascular Injury • Infection

Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model Balloon Diameter (mm) Balloon Length (cm) Introducer Size (Fr) Shaft Size (Fr) Usable Length (cm) Rated Burst Pressure (ATM) Guidewire Size (in)
Z-med II
Z-med II
 		611700 4 2 5 5 100 15 0.025
Z-med II
Z-med II
 		611706 5 3 6 5 100 15 0.025
Z-med II
Z-med II
 		611715 7 2 6 5 100 15 0.025
Z-med II
Z-med II
 		611730 10 2 7 6 100 13 0.035
Z-med II
Z-med II
 		611701 4 3 5 5 100 15 0.025
Z-med II
Z-med II
 		611710 6 2 6 5 100 15 0.025
Z-med II
Z-med II
 		611711 6 3 6 5 100 15 0.025
Z-med II
Z-med II
 		611716 7 3 6 5 100 15 0.025
Z-med II
Z-med II
 		611720 8 2 7 6 100 15 0.035
Z-med II
Z-med II
 		611721 8 3 7 6 100 15 0.035
Z-med II
Z-med II
 		611722 8 4 7 6 100 15 0.035
Z-med II
Z-med II
 		611725 9 2 7 6 100 14 0.035
Z-med II
Z-med II
 		611726 9 3 7 6 100 14 0.035
Z-med II
Z-med II
 		611731 10 3 7 6 100 13 0.035
Z-med II
Z-med II
 		611732 10 4 7 6 100 13 0.035
Z-med II
Z-med II
 		611733 10 5 7 6 100 13 0.035
Z-med II
Z-med II
 		611788 11 3 8 6 100 10 0.035
Z-med II
Z-med II
 		611799 11 4 8 6 100 10 0.035
Z-med II
Z-med II
 		611735 12 2 8 6 100 10 0.035
Z-med II
Z-med II
 		611736 12 3 8 6 100 10 0.035
Z-med II
Z-med II
 		611737 12 4 8 6 100 10 0.035
Z-med II
Z-med II
 		611738 12 5 8 6 100 10 0.035
Z-med II
Z-med II
 		611739 12 6 8 6 100 10 0.035
Z-med II
Z-med II
 		611740 14 3 9 7 100 10 0.035
Z-med II
Z-med II
 		611741 14 4 9 7 100 10 0.035
Z-med II
Z-med II
 		611742 14 5 9 7 100 10 0.035
Z-med II
Z-med II
 		611743 14 6 9 7 100 10 0.035
Z-med II
Z-med II
 		611744 15 3 9 7 100 8 0.035
Z-med II
Z-med II
 		611745 15 4 9 7 100 8 0.035
Z-med II
Z-med II
 		611746 15 5 9 7 100 8 0.035
Z-med II
Z-med II
 		611747 15 6 9 7 100 8 0.035
Z-med II
Z-med II
 		611748 16 3 9 7 100 8 0.035
Z-med II
Z-med II
 		611749 16 4 9 7 100 8 0.035
Z-med II
Z-med II
 		611750 16 5 9 7 100 8 0.035
Z-med II
Z-med II
 		611751 16 6 9 7 100 8 0.035
Z-med II
Z-med II
 		611752 18 3 10 8 100 7 0.035
Z-med II
Z-med II
 		611753 18 4 10 8 100 7 0.035
Z-med II
Z-med II
 		611754 18 5 10 8 100 7 0.035
Z-med II
Z-med II
 		611755 18 6 10 8 100 7 0.035
Z-med II
Z-med II
 		611756 20 3 12 8 100 5 0.035
Z-med II
Z-med II
 		611757 20 4 12 8 100 5 0.035
Z-med II
Z-med II
 		611003 20 4.5 11 10 100 5 0.035
Z-med II
Z-med II
 		611705 5 2 6 5 100 15 0.025
Z-med II
Z-med II
 		611758 20 5 12 8 100 5 0.035
Z-med II
Z-med II
 		611759 20 6 12 8 100 5 0.035
Z-med II
Z-med II
 		611760 22 3 12 9 100 4 0.035
Z-med II
Z-med II
 		611761 22 4 12 9 100 4 0.035
Z-med II
Z-med II
 		611004 22 4.5 12 10 110 4 0.035
Z-med II
Z-med II
 		611762 22 5 12 9 100 4 0.035
Z-med II
Z-med II
 		611763 22 6 12 9 100 4 0.035
Z-med II
Z-med II
 		611764 23 3 14 9 100 4 0.035
Z-med II
Z-med II
 		611765 23 4 14 9 100 4 0.035
Z-med II
Z-med II
 		611766 23 5 14 9 100 4 0.035
Z-med II
Z-med II
 		611767 23 6 14 9 100 4 0.035
Z-med II
Z-med II
 		611802 25 2 14 9 85 4 0.035
Z-med II
Z-med II
 		611768 25 3 14 9 100 4 0.035
Z-med II
Z-med II
 		611805 25 3 14 9 120 4 0.035
Z-med II
Z-med II
 		611769 25 4 14 9 100 4 0.035
Z-med II
Z-med II
 		611005 25 4.5 12 10 110 4 0.035
Z-med II
Z-med II
 		611770 25 5 14 9 100 4 0.035
Z-med II
Z-med II
 		611771 25 6 14 9 100 4 0.035
Z-med II
Z-med II
 		611655 26 2 14 9 100 4 0.035
Z-med II
Z-med II
 		611659 26 4 14 9 100 4 0.035
Z-med II
Z-med II
 		611656 28 2 16 11 100 3.5 0.035
Z-med II
Z-med II
 		611660 28 4 16 11 100 3.5 0.035
Z-med II
Z-med II
 		611657 30 2 16 11 100 3 0.035
Z-med II
Z-med II
 		611661 30 4 16 11 100 3 0.035
Z-med II
Z-med II
 		611675 30 5 16 11 100 3 0.035
Z-med II
Z-med II
 		611658 30 6 16 11 100 3 0.035
device-thumbnail
Z-med II
  • Model : 611700
  • Procedure : -
  • Balloon Diameter (mm) : 4
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 5
  • Shaft Size (Fr) : 5
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 15
  • Guidewire Size (in) : 0.025
device-thumbnail
Z-med II
  • Model : 611706
  • Procedure : -
  • Balloon Diameter (mm) : 5
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 6
  • Shaft Size (Fr) : 5
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 15
  • Guidewire Size (in) : 0.025
device-thumbnail
Z-med II
  • Model : 611715
  • Procedure : -
  • Balloon Diameter (mm) : 7
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 6
  • Shaft Size (Fr) : 5
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 15
  • Guidewire Size (in) : 0.025
device-thumbnail
Z-med II
  • Model : 611730
  • Procedure : -
  • Balloon Diameter (mm) : 10
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 7
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 13
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611701
  • Procedure : -
  • Balloon Diameter (mm) : 4
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 5
  • Shaft Size (Fr) : 5
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 15
  • Guidewire Size (in) : 0.025
device-thumbnail
Z-med II
  • Model : 611710
  • Procedure : -
  • Balloon Diameter (mm) : 6
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 6
  • Shaft Size (Fr) : 5
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 15
  • Guidewire Size (in) : 0.025
device-thumbnail
Z-med II
  • Model : 611711
  • Procedure : -
  • Balloon Diameter (mm) : 6
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 6
  • Shaft Size (Fr) : 5
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 15
  • Guidewire Size (in) : 0.025
device-thumbnail
Z-med II
  • Model : 611716
  • Procedure : -
  • Balloon Diameter (mm) : 7
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 6
  • Shaft Size (Fr) : 5
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 15
  • Guidewire Size (in) : 0.025
device-thumbnail
Z-med II
  • Model : 611720
  • Procedure : -
  • Balloon Diameter (mm) : 8
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 7
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 15
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611721
  • Procedure : -
  • Balloon Diameter (mm) : 8
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 7
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 15
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611722
  • Procedure : -
  • Balloon Diameter (mm) : 8
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 7
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 15
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611725
  • Procedure : -
  • Balloon Diameter (mm) : 9
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 7
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 14
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611726
  • Procedure : -
  • Balloon Diameter (mm) : 9
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 7
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 14
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611731
  • Procedure : -
  • Balloon Diameter (mm) : 10
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 7
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 13
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611732
  • Procedure : -
  • Balloon Diameter (mm) : 10
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 7
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 13
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611733
  • Procedure : -
  • Balloon Diameter (mm) : 10
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 7
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 13
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611788
  • Procedure : -
  • Balloon Diameter (mm) : 11
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 8
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 10
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611799
  • Procedure : -
  • Balloon Diameter (mm) : 11
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 8
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 10
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611735
  • Procedure : -
  • Balloon Diameter (mm) : 12
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 8
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 10
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611736
  • Procedure : -
  • Balloon Diameter (mm) : 12
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 8
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 10
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611737
  • Procedure : -
  • Balloon Diameter (mm) : 12
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 8
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 10
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611738
  • Procedure : -
  • Balloon Diameter (mm) : 12
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 8
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 10
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611739
  • Procedure : -
  • Balloon Diameter (mm) : 12
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 8
  • Shaft Size (Fr) : 6
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 10
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611740
  • Procedure : -
  • Balloon Diameter (mm) : 14
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 10
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611741
  • Procedure : -
  • Balloon Diameter (mm) : 14
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 10
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611742
  • Procedure : -
  • Balloon Diameter (mm) : 14
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 10
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611743
  • Procedure : -
  • Balloon Diameter (mm) : 14
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 10
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611744
  • Procedure : -
  • Balloon Diameter (mm) : 15
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 8
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611745
  • Procedure : -
  • Balloon Diameter (mm) : 15
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 8
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611746
  • Procedure : -
  • Balloon Diameter (mm) : 15
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 8
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611747
  • Procedure : -
  • Balloon Diameter (mm) : 15
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 8
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611748
  • Procedure : -
  • Balloon Diameter (mm) : 16
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 8
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611749
  • Procedure : -
  • Balloon Diameter (mm) : 16
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 8
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611750
  • Procedure : -
  • Balloon Diameter (mm) : 16
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 8
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611751
  • Procedure : -
  • Balloon Diameter (mm) : 16
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 9
  • Shaft Size (Fr) : 7
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 8
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611752
  • Procedure : -
  • Balloon Diameter (mm) : 18
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 10
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 7
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611753
  • Procedure : -
  • Balloon Diameter (mm) : 18
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 10
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 7
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611754
  • Procedure : -
  • Balloon Diameter (mm) : 18
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 10
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 7
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611755
  • Procedure : -
  • Balloon Diameter (mm) : 18
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 10
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 7
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611756
  • Procedure : -
  • Balloon Diameter (mm) : 20
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 5
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611757
  • Procedure : -
  • Balloon Diameter (mm) : 20
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 5
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611003
  • Procedure : -
  • Balloon Diameter (mm) : 20
  • Balloon Length (cm) : 4.5
  • Introducer Size (Fr) : 11
  • Shaft Size (Fr) : 10
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 5
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611705
  • Procedure : -
  • Balloon Diameter (mm) : 5
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 6
  • Shaft Size (Fr) : 5
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 15
  • Guidewire Size (in) : 0.025
device-thumbnail
Z-med II
  • Model : 611758
  • Procedure : -
  • Balloon Diameter (mm) : 20
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 5
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611759
  • Procedure : -
  • Balloon Diameter (mm) : 20
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 8
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 5
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611760
  • Procedure : -
  • Balloon Diameter (mm) : 22
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611761
  • Procedure : -
  • Balloon Diameter (mm) : 22
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611004
  • Procedure : -
  • Balloon Diameter (mm) : 22
  • Balloon Length (cm) : 4.5
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 10
  • Usable Length (cm) : 110
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611762
  • Procedure : -
  • Balloon Diameter (mm) : 22
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611763
  • Procedure : -
  • Balloon Diameter (mm) : 22
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611764
  • Procedure : -
  • Balloon Diameter (mm) : 23
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 14
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611765
  • Procedure : -
  • Balloon Diameter (mm) : 23
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 14
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611766
  • Procedure : -
  • Balloon Diameter (mm) : 23
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 14
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611767
  • Procedure : -
  • Balloon Diameter (mm) : 23
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 14
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611802
  • Procedure : -
  • Balloon Diameter (mm) : 25
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 14
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 85
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611768
  • Procedure : -
  • Balloon Diameter (mm) : 25
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 14
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611805
  • Procedure : -
  • Balloon Diameter (mm) : 25
  • Balloon Length (cm) : 3
  • Introducer Size (Fr) : 14
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 120
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611769
  • Procedure : -
  • Balloon Diameter (mm) : 25
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 14
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611005
  • Procedure : -
  • Balloon Diameter (mm) : 25
  • Balloon Length (cm) : 4.5
  • Introducer Size (Fr) : 12
  • Shaft Size (Fr) : 10
  • Usable Length (cm) : 110
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611770
  • Procedure : -
  • Balloon Diameter (mm) : 25
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 14
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611771
  • Procedure : -
  • Balloon Diameter (mm) : 25
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 14
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611655
  • Procedure : -
  • Balloon Diameter (mm) : 26
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 14
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611659
  • Procedure : -
  • Balloon Diameter (mm) : 26
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 14
  • Shaft Size (Fr) : 9
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 4
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611656
  • Procedure : -
  • Balloon Diameter (mm) : 28
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 16
  • Shaft Size (Fr) : 11
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3.5
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611660
  • Procedure : -
  • Balloon Diameter (mm) : 28
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 16
  • Shaft Size (Fr) : 11
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3.5
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611657
  • Procedure : -
  • Balloon Diameter (mm) : 30
  • Balloon Length (cm) : 2
  • Introducer Size (Fr) : 16
  • Shaft Size (Fr) : 11
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611661
  • Procedure : -
  • Balloon Diameter (mm) : 30
  • Balloon Length (cm) : 4
  • Introducer Size (Fr) : 16
  • Shaft Size (Fr) : 11
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611675
  • Procedure : -
  • Balloon Diameter (mm) : 30
  • Balloon Length (cm) : 5
  • Introducer Size (Fr) : 16
  • Shaft Size (Fr) : 11
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035
device-thumbnail
Z-med II
  • Model : 611658
  • Procedure : -
  • Balloon Diameter (mm) : 30
  • Balloon Length (cm) : 6
  • Introducer Size (Fr) : 16
  • Shaft Size (Fr) : 11
  • Usable Length (cm) : 100
  • Rated Burst Pressure (ATM) : 3
  • Guidewire Size (in) : 0.035

Questions & Answers

Don't see the answer you're looking for ?
