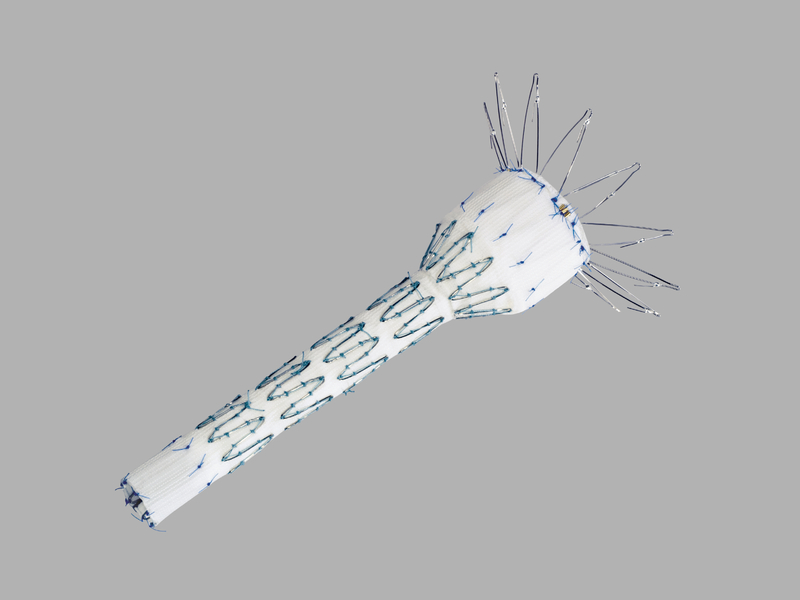

Zenith Renu® AAA Ancillary Graft Converter

Device-Type

Ancillary Components

Manufacturer

Cook Medical

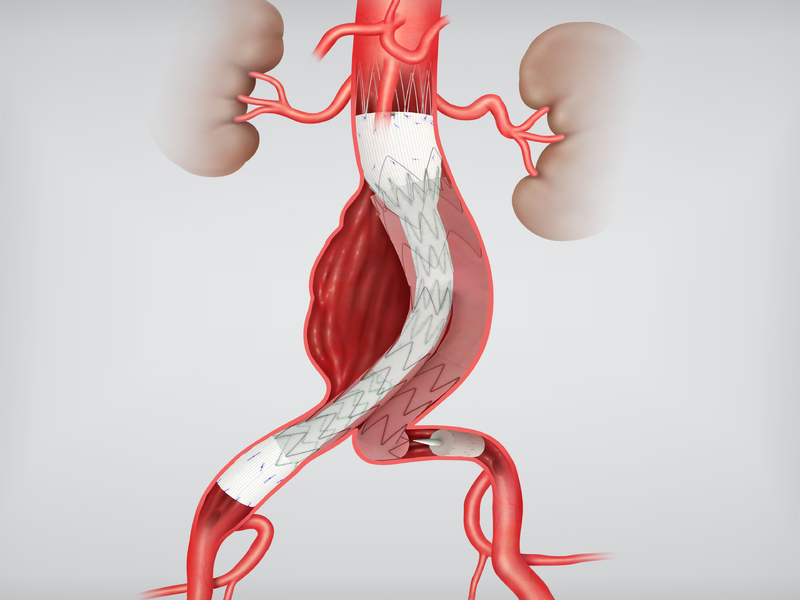

The Zenith Renu AAA Ancillary Graft with the Z-Trak Introduction System is indicated for secondary endovascular intervention in patients having received prior endovascular repair of infrarenal abdominal aortic or aorto-iliac aneurysms in which there is inadequate proximal fixation or seal. (Consult the Instructions for Use for a more thorough examination of the deployment protocol, MRI safety, indications for use, contraindications, warnings and precautions.)

Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model Proximal/DistalDiametermm/mm Proximal Length mm Distal Length mm Total Length mm Introducer Sheath ID/OD Fr(mm)/mm
Zenith Ancillary Components
Zenith Ancillary Components
 		G55357 22/12 59 54 113 18(6.0)/7.1
Zenith Ancillary Components
Zenith Ancillary Components
 		G55363 24/12 59 54 113 18(6.0)/7.1
Zenith Ancillary Components
Zenith Ancillary Components
 		G55369 26/12 59 54 113 18(6.0)/7.1
Zenith Ancillary Components
Zenith Ancillary Components
 		G55376 28/12 59 54 113 20(6.7)/7.7
Zenith Ancillary Components
Zenith Ancillary Components
 		G55382 30/12 59 54 113 20(6.7)/7.7
Zenith Ancillary Components
Zenith Ancillary Components
 		G55388 32/12 59 54 113 20(6.7)/7.7
Zenith Ancillary Components
Zenith Ancillary Components
 		G55394 36/12 80 47 127 22(7.3)/8.5
device-thumbnail
Zenith Ancillary Components
  • Model : G55357
  • Procedure : -
  • Proximal/DistalDiametermm/mm : 22/12
  • Proximal Length mm : 59
  • Distal Length mm : 54
  • Total Length mm : 113
  • Introducer Sheath ID/OD Fr(mm)/mm : 18(6.0)/7.1
device-thumbnail
Zenith Ancillary Components
  • Model : G55363
  • Procedure : -
  • Proximal/DistalDiametermm/mm : 24/12
  • Proximal Length mm : 59
  • Distal Length mm : 54
  • Total Length mm : 113
  • Introducer Sheath ID/OD Fr(mm)/mm : 18(6.0)/7.1
device-thumbnail
Zenith Ancillary Components
  • Model : G55369
  • Procedure : -
  • Proximal/DistalDiametermm/mm : 26/12
  • Proximal Length mm : 59
  • Distal Length mm : 54
  • Total Length mm : 113
  • Introducer Sheath ID/OD Fr(mm)/mm : 18(6.0)/7.1
device-thumbnail
Zenith Ancillary Components
  • Model : G55376
  • Procedure : -
  • Proximal/DistalDiametermm/mm : 28/12
  • Proximal Length mm : 59
  • Distal Length mm : 54
  • Total Length mm : 113
  • Introducer Sheath ID/OD Fr(mm)/mm : 20(6.7)/7.7
device-thumbnail
Zenith Ancillary Components
  • Model : G55382
  • Procedure : -
  • Proximal/DistalDiametermm/mm : 30/12
  • Proximal Length mm : 59
  • Distal Length mm : 54
  • Total Length mm : 113
  • Introducer Sheath ID/OD Fr(mm)/mm : 20(6.7)/7.7
device-thumbnail
Zenith Ancillary Components
  • Model : G55388
  • Procedure : -
  • Proximal/DistalDiametermm/mm : 32/12
  • Proximal Length mm : 59
  • Distal Length mm : 54
  • Total Length mm : 113
  • Introducer Sheath ID/OD Fr(mm)/mm : 20(6.7)/7.7
device-thumbnail
Zenith Ancillary Components
  • Model : G55394
  • Procedure : -
  • Proximal/DistalDiametermm/mm : 36/12
  • Proximal Length mm : 80
  • Distal Length mm : 47
  • Total Length mm : 127
  • Introducer Sheath ID/OD Fr(mm)/mm : 22(7.3)/8.5
