Manufacturer > Terumo Interventional Systems > Devices > GLIDECATH® Hydrophilic Coated Catheter

GLIDECATH® Hydrophilic Coated Catheter

Device-Type

Angiographic Catheters

Targated Speciality

Angioplasty

Used in Procedure

Angioplasty


GLIDECATH® is a hydrophilically coated, angiographic catheter providing the vessel selectivity and navigation required for a wide variety of diagnostic or interventional procedures.

  • Navigate difficult vessel anatomy with smooth tracking facilitated by TERUMO Glide Technology™.
  • Leverage superior kink resistance to achieve ideal flow rates for diagnostic imaging.

Features and Benefits

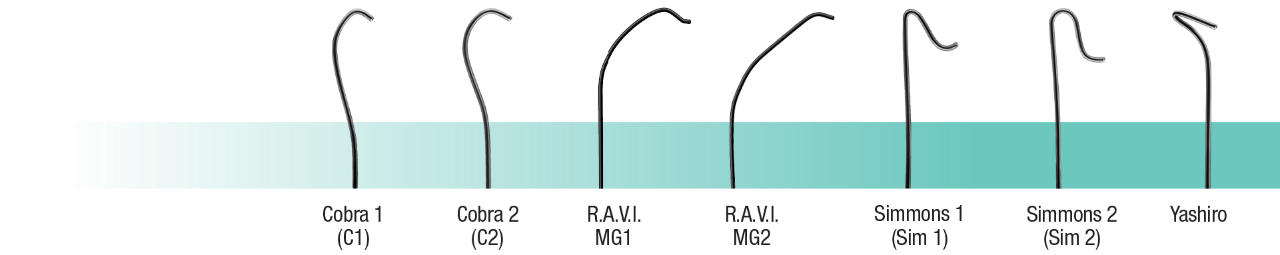

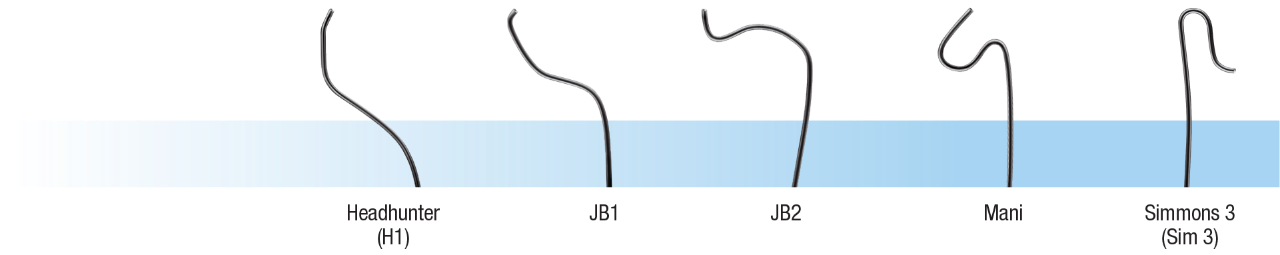

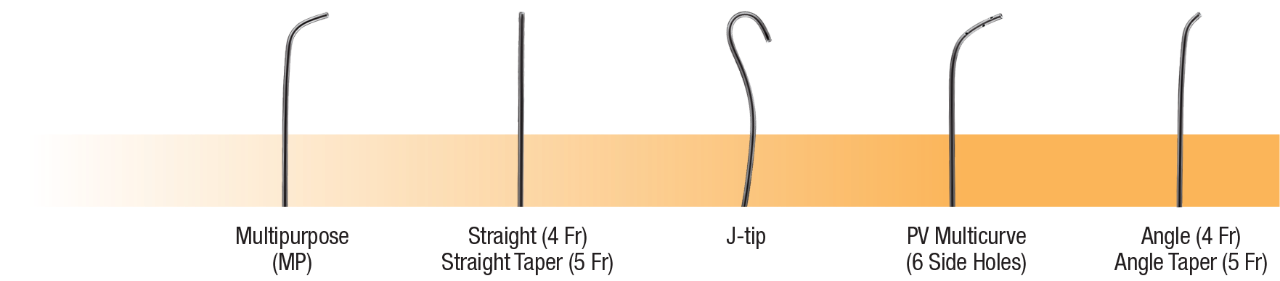

GLIDECATH® is offered in 17 unique tip shapes that are designed for various anatomy.

Superior Trackability,

Traverse tortuous anatomy while leveraging a superior ability to deliver devices through a nylon rich inner layer.

Superior Torqueability

Engage acute vessels with superior torque control with a double-braided design .

Excellent Lubricity

Navigate difficult vasculature with the excellent lubricity provided by Terumo Glide Technology.


SINGLE-BRAIDED

  • Reach distal visceral vessels with best-in-class traceability,
  • Approach tortuous anatomy with best-in-class pushability,


DOUBLE-BRAIDED

  • Access and cross challenging lesions with excellent pushability and torquability
  • Achieve superior device delivery through a nylon-rich inner layer,
  • Leverage superior kink resistance to maintain lumen integrity throughout the procedure




Device Documents

Related Device SKUs

* Select 2 or more (upto 4) SKUs to compare.
SKU Name Device SKUs Model CATHETER LENGTH(cm) Tip Shapes Size(F)
GLIDECATH® Hydrophilic Coated Catheter
CG412 65 Straight 4
GLIDECATH® Hydrophilic Coated Catheter
CG413 100 Straight 4
GLIDECATH® Hydrophilic Coated Catheter
CG414 120 Straight 4
GLIDECATH® Hydrophilic Coated Catheter
CG431 150 Straight 4
GLIDECATH® Hydrophilic Coated Catheter
CG415 65 Angle 4
GLIDECATH® Hydrophilic Coated Catheter
CG416 100 Angle 4
GLIDECATH® Hydrophilic Coated Catheter
CG417 120 Angle 4
GLIDECATH® Hydrophilic Coated Catheter
CG432 150 Angle 4
GLIDECATH® Hydrophilic Coated Catheter
CG408 65 C1 4
GLIDECATH® Hydrophilic Coated Catheter
CG409 65 C2 4
GLIDECATH® Hydrophilic Coated Catheter
CG410 100 C2 4
GLIDECATH® Hydrophilic Coated Catheter
CG434 150 C2 4
GLIDECATH® Hydrophilic Coated Catheter
CG422 70 Yashiro 4
GLIDECATH® Hydrophilic Coated Catheter
CG401 100 Sim 1 4
GLIDECATH® Hydrophilic Coated Catheter
CG402 100 Sim 2 4
GLIDECATH® Hydrophilic Coated Catheter
CG403 100 Sim 3 4
GLIDECATH® Hydrophilic Coated Catheter
CG404 100 H1 4
GLIDECATH® Hydrophilic Coated Catheter
CG405 100 JB1 4
GLIDECATH® Hydrophilic Coated Catheter
CG406 100 JB2 4
GLIDECATH® Hydrophilic Coated Catheter
CG435 150 JR 4.0 4
GLIDECATH® Hydrophilic Coated Catheter
CG440 125 RAVI MG1 4
GLIDECATH® Hydrophilic Coated Catheter
CG441 135 RAVI MG2 4
GLIDECATH® Hydrophilic Coated Catheter
CG418 100 MP 4
GLIDECATH® Hydrophilic Coated Catheter
CG407 100 Mani 4
GLIDECATH® Hydrophilic Coated Catheter
CG433 150 Pigtail 4
GLIDECATH® Hydrophilic Coated Catheter
CG430 150 PV Multicurve 4
GLIDECATH® Hydrophilic Coated Catheter
CG505 65 Straight 5
GLIDECATH® Hydrophilic Coated Catheter
CG506 100 Straight 5
GLIDECATH® Hydrophilic Coated Catheter
CG507 65 Angle Taper 5
GLIDECATH® Hydrophilic Coated Catheter
CG508 100 Angle Taper 5
GLIDECATH® Hydrophilic Coated Catheter
CG501 65 C1 5
GLIDECATH® Hydrophilic Coated Catheter
CG502 65 C2 5
GLIDECATH® Hydrophilic Coated Catheter
CG503 100 C2 5
GLIDECATH® Hydrophilic Coated Catheter
CG504 65 J-TIP 5
GLIDECATH® Hydrophilic Coated Catheter
CG519 70 Yashiro 5
GLIDECATH® Hydrophilic Coated Catheter
CG510 100 Sim 1 5
GLIDECATH® Hydrophilic Coated Catheter
CG521 65 Sim 2 5
GLIDECATH® Hydrophilic Coated Catheter
CG511 100 Sim 2 5
GLIDECATH® Hydrophilic Coated Catheter
CG512 100 Sim 3 5
GLIDECATH® Hydrophilic Coated Catheter
CG513 100 H1 5
GLIDECATH® Hydrophilic Coated Catheter
CG514 100 JB1 5
GLIDECATH® Hydrophilic Coated Catheter
CG515 100 JB2 5
GLIDECATH® Hydrophilic Coated Catheter
CG509 100 MP 5
GLIDECATH® Hydrophilic Coated Catheter
CG516 100 Mani 5
  • Model : CG412
  • Procedure : -
  • CATHETER LENGTH(cm) : 65
  • Tip Shapes : Straight
  • Size(F) : 4
  • Model : CG413
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : Straight
  • Size(F) : 4
  • Model : CG414
  • Procedure : -
  • CATHETER LENGTH(cm) : 120
  • Tip Shapes : Straight
  • Size(F) : 4
  • Model : CG431
  • Procedure : -
  • CATHETER LENGTH(cm) : 150
  • Tip Shapes : Straight
  • Size(F) : 4
  • Model : CG415
  • Procedure : -
  • CATHETER LENGTH(cm) : 65
  • Tip Shapes : Angle
  • Size(F) : 4
  • Model : CG416
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : Angle
  • Size(F) : 4
  • Model : CG417
  • Procedure : -
  • CATHETER LENGTH(cm) : 120
  • Tip Shapes : Angle
  • Size(F) : 4
  • Model : CG432
  • Procedure : -
  • CATHETER LENGTH(cm) : 150
  • Tip Shapes : Angle
  • Size(F) : 4
  • Model : CG408
  • Procedure : -
  • CATHETER LENGTH(cm) : 65
  • Tip Shapes : C1
  • Size(F) : 4
  • Model : CG409
  • Procedure : -
  • CATHETER LENGTH(cm) : 65
  • Tip Shapes : C2
  • Size(F) : 4
  • Model : CG410
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : C2
  • Size(F) : 4
  • Model : CG434
  • Procedure : -
  • CATHETER LENGTH(cm) : 150
  • Tip Shapes : C2
  • Size(F) : 4
  • Model : CG422
  • Procedure : -
  • CATHETER LENGTH(cm) : 70
  • Tip Shapes : Yashiro
  • Size(F) : 4
  • Model : CG401
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : Sim 1
  • Size(F) : 4
  • Model : CG402
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : Sim 2
  • Size(F) : 4
  • Model : CG403
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : Sim 3
  • Size(F) : 4
  • Model : CG404
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : H1
  • Size(F) : 4
  • Model : CG405
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : JB1
  • Size(F) : 4
  • Model : CG406
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : JB2
  • Size(F) : 4
  • Model : CG435
  • Procedure : -
  • CATHETER LENGTH(cm) : 150
  • Tip Shapes : JR 4.0
  • Size(F) : 4
  • Model : CG440
  • Procedure : -
  • CATHETER LENGTH(cm) : 125
  • Tip Shapes : RAVI MG1
  • Size(F) : 4
  • Model : CG441
  • Procedure : -
  • CATHETER LENGTH(cm) : 135
  • Tip Shapes : RAVI MG2
  • Size(F) : 4
  • Model : CG418
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : MP
  • Size(F) : 4
  • Model : CG407
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : Mani
  • Size(F) : 4
  • Model : CG433
  • Procedure : -
  • CATHETER LENGTH(cm) : 150
  • Tip Shapes : Pigtail
  • Size(F) : 4
  • Model : CG430
  • Procedure : -
  • CATHETER LENGTH(cm) : 150
  • Tip Shapes : PV Multicurve
  • Size(F) : 4
  • Model : CG505
  • Procedure : -
  • CATHETER LENGTH(cm) : 65
  • Tip Shapes : Straight
  • Size(F) : 5
  • Model : CG506
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : Straight
  • Size(F) : 5
  • Model : CG507
  • Procedure : -
  • CATHETER LENGTH(cm) : 65
  • Tip Shapes : Angle Taper
  • Size(F) : 5
  • Model : CG508
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : Angle Taper
  • Size(F) : 5
  • Model : CG501
  • Procedure : -
  • CATHETER LENGTH(cm) : 65
  • Tip Shapes : C1
  • Size(F) : 5
  • Model : CG502
  • Procedure : -
  • CATHETER LENGTH(cm) : 65
  • Tip Shapes : C2
  • Size(F) : 5
  • Model : CG503
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : C2
  • Size(F) : 5
  • Model : CG504
  • Procedure : -
  • CATHETER LENGTH(cm) : 65
  • Tip Shapes : J-TIP
  • Size(F) : 5
  • Model : CG519
  • Procedure : -
  • CATHETER LENGTH(cm) : 70
  • Tip Shapes : Yashiro
  • Size(F) : 5
  • Model : CG510
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : Sim 1
  • Size(F) : 5
  • Model : CG521
  • Procedure : -
  • CATHETER LENGTH(cm) : 65
  • Tip Shapes : Sim 2
  • Size(F) : 5
  • Model : CG511
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : Sim 2
  • Size(F) : 5
  • Model : CG512
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : Sim 3
  • Size(F) : 5
  • Model : CG513
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : H1
  • Size(F) : 5
  • Model : CG514
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : JB1
  • Size(F) : 5
  • Model : CG515
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : JB2
  • Size(F) : 5
  • Model : CG509
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : MP
  • Size(F) : 5
  • Model : CG516
  • Procedure : -
  • CATHETER LENGTH(cm) : 100
  • Tip Shapes : Mani
  • Size(F) : 5
